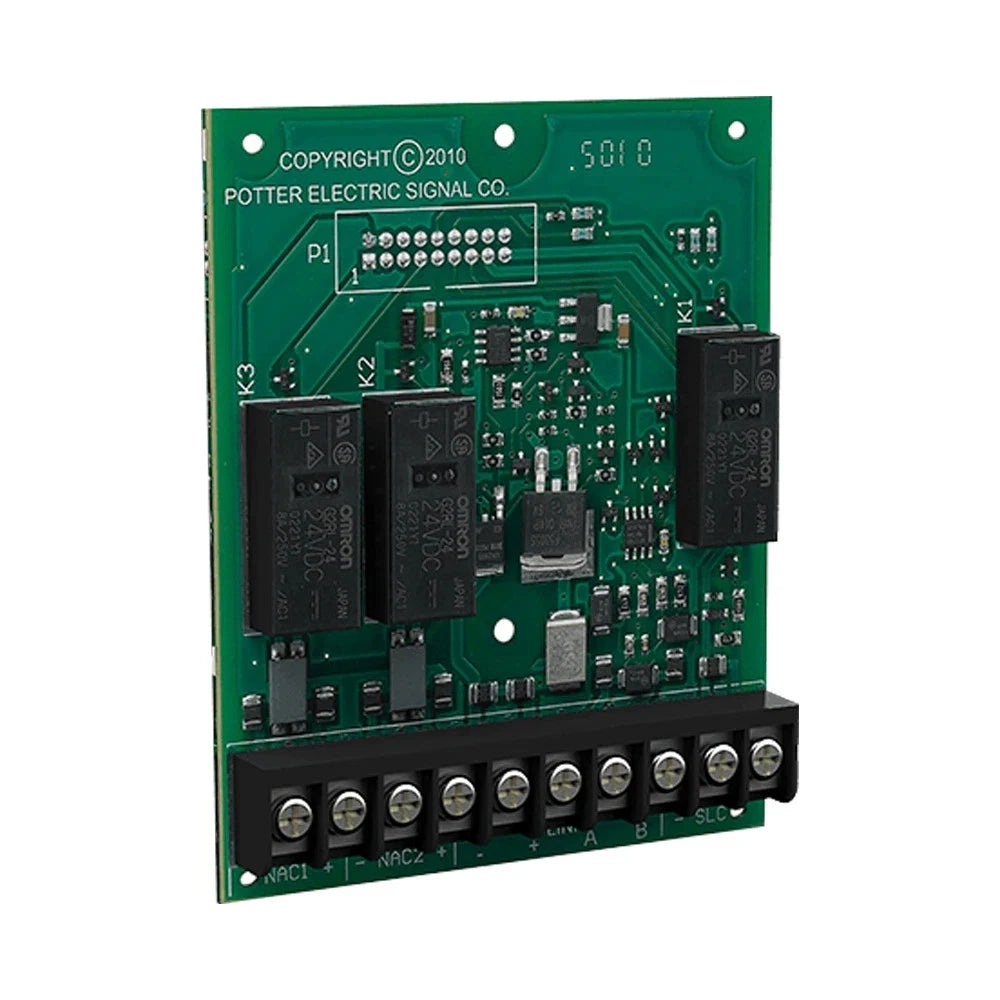

Potter Electric Signal CA-6075 Class A Fire Alarm Expander Module
- Regular price
- $292.00
- Sale price
- $292.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CA-6075
Description
The Potter Electric Signal CA-6075 is a Class A Expander designed to convert compatible built-in fire alarm panel circuits to Class A operation. It provides Class A capability for the SLC, P-Link communication bus, and two onboard NAC circuits while mounting directly inside supported Potter addressable control panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter Electric Signal |
| Category | Fire Alarm Systems |
| Part Number | CA-6075 |
| Subcategory | Class A Expander Modules |
| Product Type | Class A Expander |
| Stock Number | 3006459 |
| Standby Current | 12 mA |
| Alarm Current | 44 mA |
| SLC Support | Class A |
| P-Link Support | Class A |
| NAC Support | 2 Built-In NAC Circuits, Class A |
| Maximum Expanders per Panel | 1 |
| Compatible Panels | IPA-60, IPA-100, AFC-50, AFC-100, ARC-100, PFC-6030, PFC-6075, PFC-6200, PFC-6075R, P100, P200, P300 |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | 10%–93% at 30°C (86°F), Non-Condensing |
| Mounting | Internal Control Panel Framework |
| Weight | 1 lb |
Information About CA-6075
The CA-6075 is a Potter Electric Signal Class A expansion module for compatible AFC, ARC, IPA, and PFC addressable fire alarm control panels. It mounts to the supplied internal framework and connects directly to the control panel assembly. The module allows Class A operation to be independently selected for the SLC and P-Link circuits using Potter Fire Panel Programmer Software. It also supports Class A wiring for the panel’s two built-in NAC circuits and is limited to one CA-6075 expander per compatible panel.
Key Features:
- Class A Expansion: Converts supported built-in fire alarm circuits to Class A wiring configurations.
- SLC Support: Provides Class A connectivity for the panel’s signaling line circuit.
- P-Link Expansion: Enables Class A wiring of the Potter P-Link communication bus.
- NAC Conversion: Supports Class A operation for two built-in notification appliance circuits.
- Independent Configuration: Allows SLC and P-Link Class A operation to be selected independently through Potter programming software.
- Internal Panel Mounting: Installs on the provided framework inside compatible Potter fire alarm control panels.
- Broad Panel Compatibility: Supports selected IPA, AFC, ARC, PFC, P100, P200, and P300 control panels.
- Low Current Consumption: Draws 12 mA in standby and 44 mA during alarm operation.
The CA-6075 delivers the reliability and precision required for Class A fire alarm circuit expansion and supervised panel communication.
