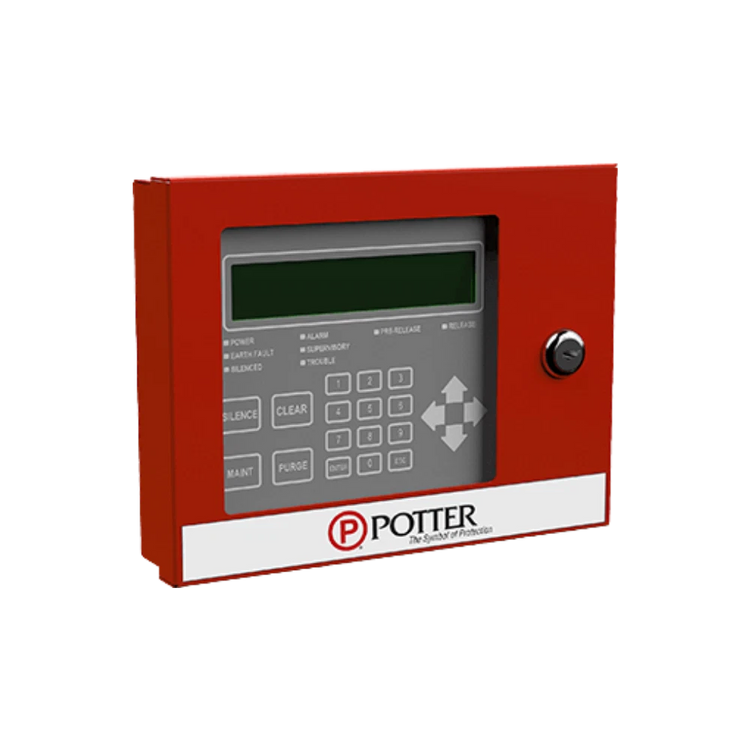

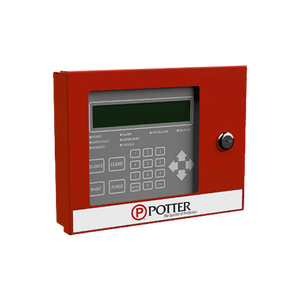

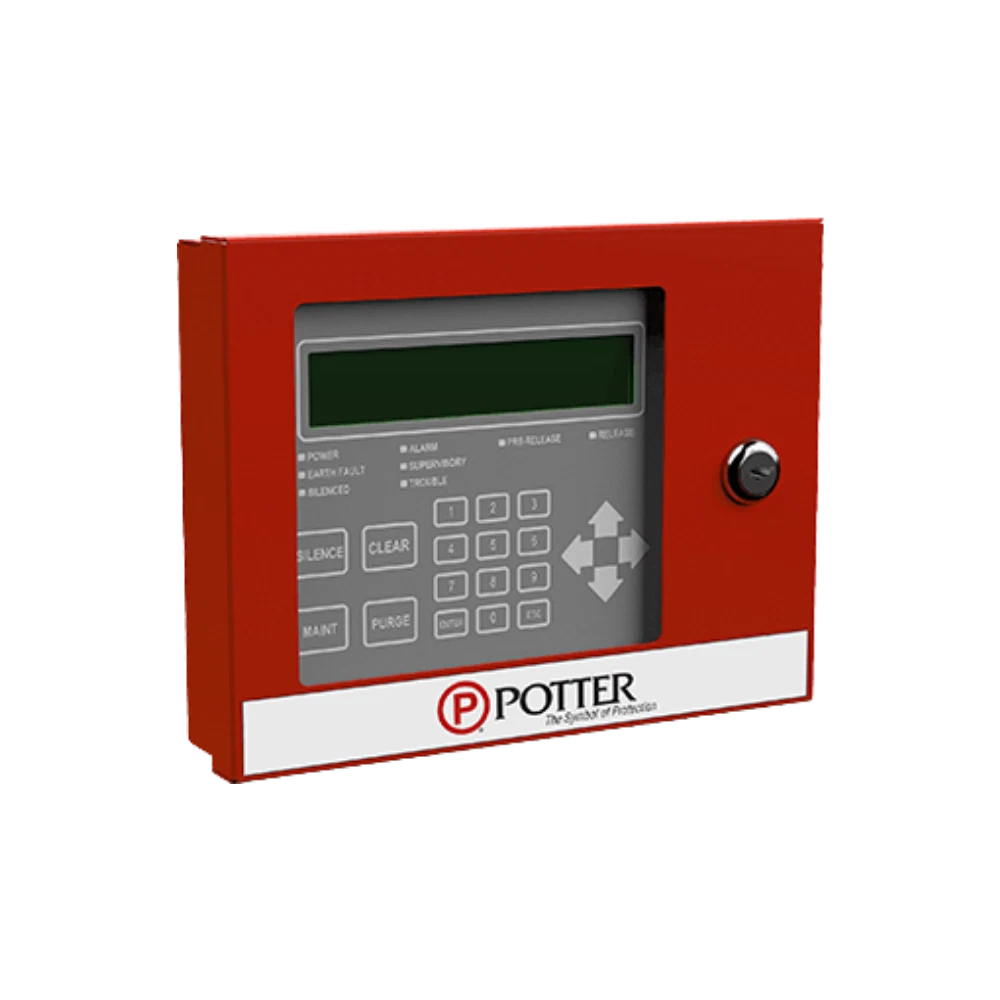

Potter Electric Signal RA-6500R Remote LCD Fire Alarm Annunciator
- Regular price
- $669.00
- Sale price
- $669.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RA-6500R
Description
Potter Electric Signal RA-6500R is a remote LCD annunciator for compatible Potter fire alarm control panels. It displays common system status and provides remote access to alarm, supervisory, trouble, and other control functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter Electric Signal |
| Category | Fire Alarm System Components |
| Part Number | RA-6500R |
| Subcategory | Remote Annunciators |
| Device Type | LCD remote annunciator |
| Display | 4 lines × 40 characters |
| Communication | RS-485 |
| Standby Current | 20 mA |
| Alarm Current | 25 mA |
| Maximum Annunciators | 31 per compatible panel |
| Maximum Wire Length | 6,500 ft |
| Compatible Panels | IPA Series, AFC/ARC Series, PFC-4064, P-Series, PFC-6000 Series |
| Mounting | Single-gang or four-square electrical box |
| Dimensions (W × H × D) | 10 × 7⅞ × 1⅝ in |
| Weight | 2 lb |
Information About RA-6500R
The RA-6500R is part of Potter’s remote annunciator product line. It communicates with the main fire alarm panel over an RS-485 connection and uses a four-line, 40-character LCD for status information. Common LEDs indicate power, alarm, supervisory, trouble, and silenced conditions, while front-panel buttons support navigation. The unit can be mounted on a single-gang or four-square electrical box and is housed in a lockable sheet-metal enclosure.
Key Features:
- Four-Line LCD: Displays up to 40 characters per line for remote fire system status information.
- RS-485 Communication: Connects to compatible Potter fire alarm panels using an RS-485 communication link.
- Common Status LEDs: Indicates power, alarm, supervisory, trouble, and silenced conditions.
- Remote Panel Functions: Provides common indication of alarms, supervisory events, troubles, and other system control functions.
- Multi-Annunciator Support: Supports up to 31 annunciators per compatible panel system.
- Extended Wiring Distance: Allows a maximum wire length of 6,500 feet, subject to system installation requirements.
The RA-6500R delivers the reliability and precision required for remote fire alarm status monitoring and control.
