Potter PAD100-LEDK Addressable LED with Key Switch Module
- Regular price
- $212.00
- Sale price
- $212.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PAD100-LEDK
Description

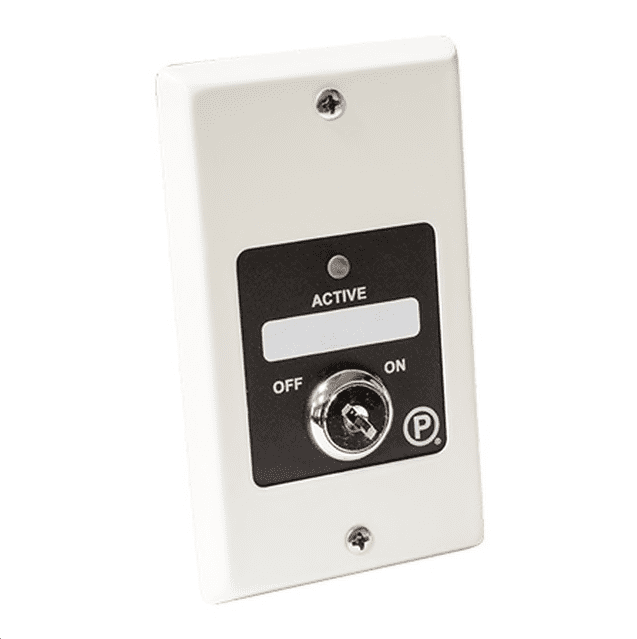

The Potter PAD100-LEDK is an addressable LED and key switch module designed for control and status indication within compatible Potter fire alarm systems. It provides a mappable key-switch input for controlling system functions and a mappable red LED for displaying selected system status conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Control Panels |
| Part Number | PAD100-LEDK |
| Subcategory | Addressable LED Modules |
| Module Type | Addressable LED with Key Switch |
| Operating Voltage | 24.0 V |
| SLC Address Usage | One SLC address |
| Maximum SLC Standby Current | 200 µA |
| Maximum SLC Alarm Current | 200 µA |
| SLC Wiring | Class A, Class B, and Class X |
| Address Setting | DIP switch |
| Key Switch | Mappable key-switch input |
| LED Indicator | Mappable red LED |
| Maximum Modules per Loop | 127 |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | 0 to 93% non-condensing |
| Mounting | Single gang box or Potter P32-BB/DBB |
| Dimensions | 4.75 × 2.75 × 1 in (187 × 108 × 40 mm) |
| Wiring Terminal Range | 22 to 12 AWG |
| Installation Environment | Indoor only |
| Listing | UUKL Listed for Smoke Control |
| Weight | 0.65 lb |
Information About PAD100-LEDK

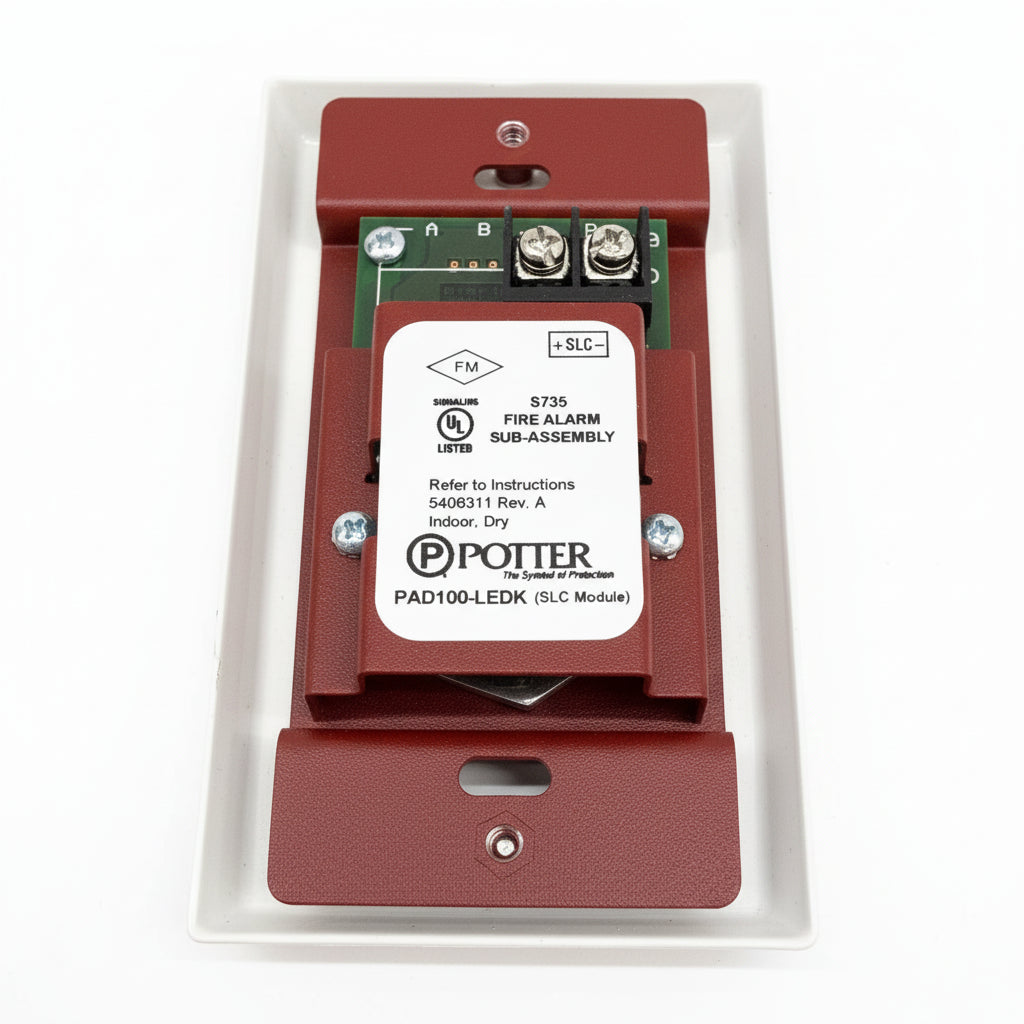

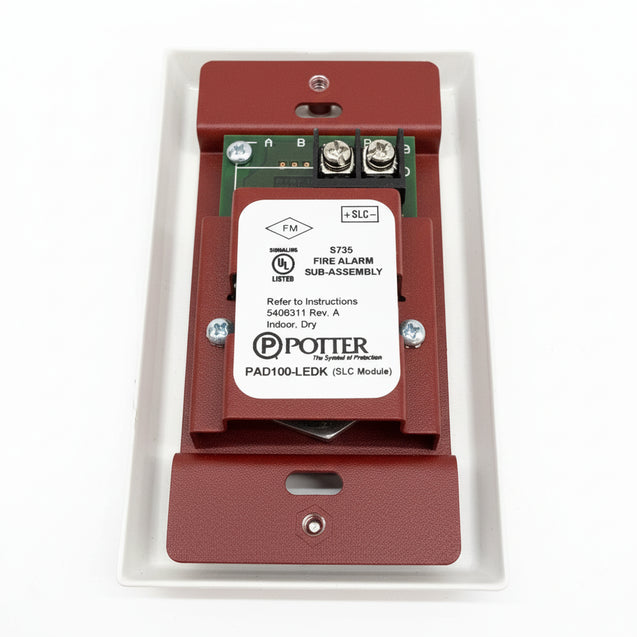

The PAD100-LEDK is part of Potter’s PAD addressable SLC module series and is designed for use with IPA and AFC/ARC series addressable fire alarm control panels. The module uses one SLC address, which is assigned through a DIP switch located on the rear of the device. Its key switch is matched to Potter fire alarm control panels, while the red LED can be mapped to indicate various system conditions. The module is intended for indoor installation in a single gang box or compatible Potter P32-BB/DBB enclosure.
Key Features:
- Addressable Key Switch: Provides a mappable key-switch input for controlling selected fire alarm system functions.
- Red LED Indicator: Provides a mappable visual indicator for selected system status conditions.
- Single SLC Address: Uses one address on the signaling line circuit.
- DIP Switch Addressing: Allows the device address to be configured using the rear-mounted DIP switch.
- Panel Compatibility: Designed for Potter IPA and AFC/ARC series addressable fire alarm control panels.
- SLC Support: Supports Class A, Class B, and Class X SLC wiring configurations.
- Flexible Mounting: Installs in a standard single gang box or compatible Potter P32-BB/DBB enclosure.
- Terminal Compatibility: Wiring terminals accept conductors from 22 to 12 AWG.
The PAD100-LEDK delivers the reliability and precision required for addressable system control and visual status indication in fire alarm installations.
