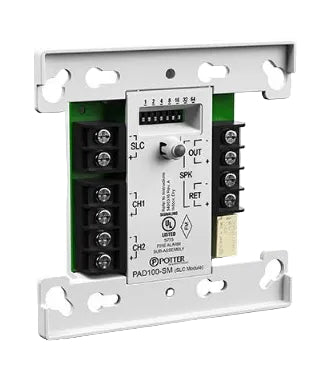

Potter PAD100-SM Addressable Speaker Module with Dual Audio Inputs
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PAD100-SM
Description
The Potter PAD100-SM is an addressable speaker module designed to switch audio signals within compatible Potter fire alarm systems. It uses one SLC loop address and can route one of two audio input channels to a single audio output channel for fire alarm voice notification applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Control Panels |
| Part Number | PAD100-SM |
| Subcategory | Speaker Modules |
| Module Type | Addressable Speaker Module |
| SLC Address Usage | One SLC loop address |
| Audio Inputs | Two audio input channels |
| Audio Output | One audio output channel |
| Output Wiring | Class A or Class B |
| SLC Wiring | Class A, Class B, or Class X |
| Operating Voltage | 24.0 V |
| Maximum SLC Standby Current | 240 µA |
| Maximum SLC Alarm Current | 240 µA |
| Output Channel Rating | 2 A @ 30 VDC; 0.5 A @ 25 VAC; 60 W |
| Input Channel Rating | 25 VRMS, 70.7 VRMS, 30 VDC, 120 VAC |
| EOL Resistor | 5.1 kΩ |
| Operating Temperature | 32 to 120°F (0 to 49°C) |
| Operating Humidity | 0 to 93% non-condensing |
| Maximum Modules per Loop | 127 |
| Dimensions | 4.17 × 4.17 × 1.14 in (106 × 106 × 29 mm) |
| Mounting | UL Listed 2-1/2-inch deep 2-gang box or 1-1/2-inch deep 4-inch square box |
| Wiring Range | 12 to 22 AWG |
| Status Indicator | Red LED |
| Compatible Systems | Potter IPA and AFC/ARC series addressable fire alarm control panels |
| Weight | 0.6 lb |
Information About PAD100-SM
The PAD100-SM is part of Potter’s PAD addressable fire alarm module series and is intended for audio switching applications. The module interfaces with Potter IPA and AFC/ARC series addressable fire alarm control panels and uses the PAD Addressable Protocol. Its seven-position DIP switch provides address assignment from 1 through 127, with the audio input channels identified as sub-points of the module address. The unit supports Class A, Class B, and Class X SLC wiring and can be installed in compatible 4-inch square or double gang electrical boxes.
Key Features:
- Audio Switching: Switches one of two audio input channels to the module’s audio output channel.
- Addressable Operation: Uses one SLC loop address within the compatible fire alarm system.
- Dual Audio Inputs: Provides two audio input channels for connected amplifier sources.
- Class A/B Output: Supports Class A or Class B wiring for the audio output channel.
- SLC Compatibility: Supports Class A, Class B, and Class X SLC wiring configurations.
- DIP Switch Addressing: Uses a seven-position DIP switch to assign an address from 1 to 127.
- LED Status Indication: Red LED indicates module polling and operating status.
- Flexible Mounting: Installs in a UL Listed 2-gang box or compatible 4-inch square box.
The PAD100-SM delivers the reliability and precision required for addressable audio switching and voice notification applications in fire alarm systems.
