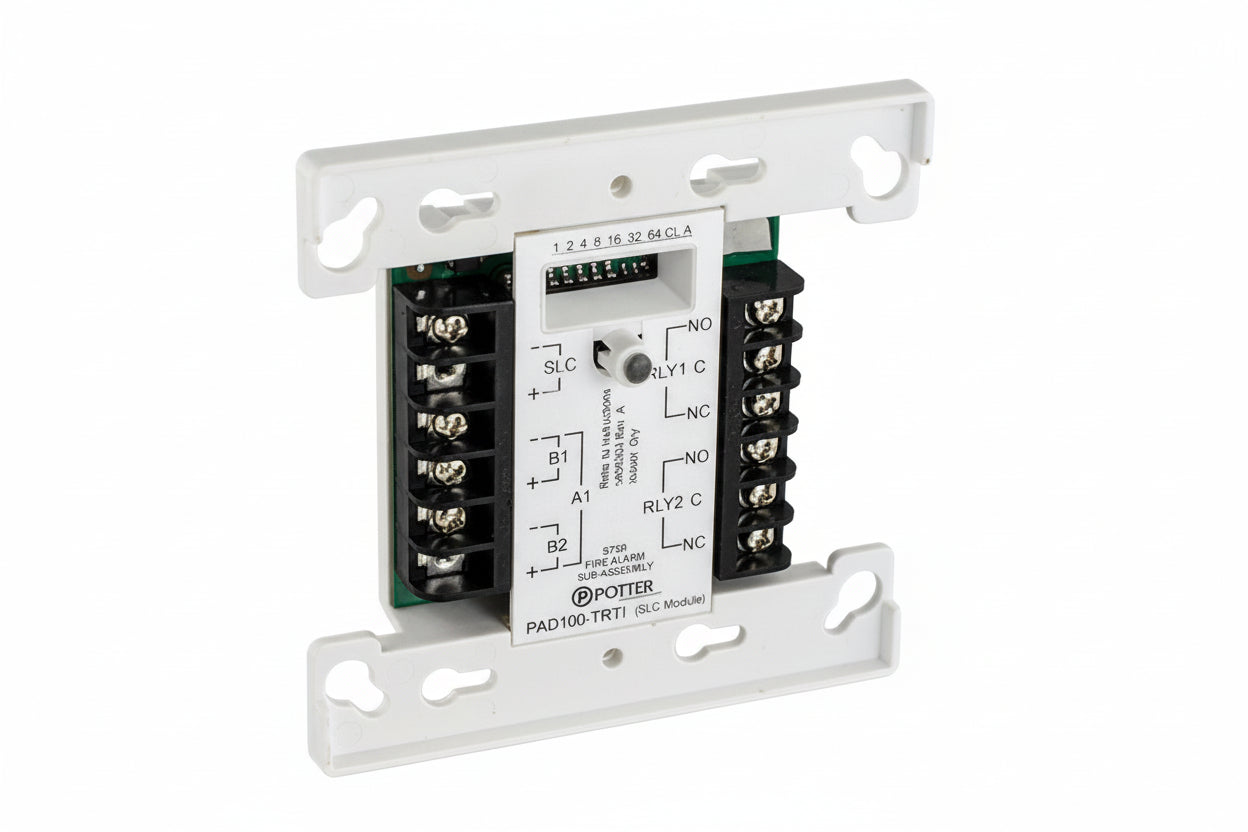

Potter PAD100-TRTI Addressable Relay Input Module with Dual Class B Inputs
- Regular price
- $312.00
- Sale price
- $312.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PAD100-TRTI
Description
The Potter PAD100-TRTI is an addressable relay input module designed to monitor dry contact devices within compatible fire alarm systems. It supports two Class B circuits or one Class A circuit while providing two Form C relay contacts, making it suitable for applications such as sprinkler waterflow and valve tamper monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Control Panels |
| Part Number | PAD100-TRTI |
| Subcategory | Control Panel Modules |
| Module Type | Addressable Relay Input Module |
| Input Configuration | Two Class B or one Class A circuits |
| Relay Contacts | Two Form C relay contacts |
| SLC Configuration | Class A, Class X, and Class B |
| SLC Address Usage | One SLC loop address |
| Address Assignment | DIP switch |
| Input Type | Dry contact devices |
| Typical Applications | Sprinkler waterflow, valve tamper switches, and conventional pull stations |
| Compatible Control Panels | Potter IPA and AFC/ARC series addressable fire alarm control panels |
| Mounting | Standard 4-inch square or double gang box |
| Wiring Terminal Range | 22 to 12 AWG |
| Status Indicator | Red LED |
| Listing | UUKL Listed for Smoke Control |
| UPC Code | 785192023708 |
| Weight | 0.6 lbs |
Information About PAD100-TRTI
The PAD100-TRTI is a single-address SLC module from Potter's addressable fire alarm product line. It assigns one SLC loop address to the module, with its two inputs and two relays identified as individual sub-points under that address. The module uses a DIP switch for address assignment and provides accessible wiring terminals that accept 22 to 12 AWG conductors. It is designed for installation in a standard 4-inch square or double gang electrical box and is compatible with Potter IPA and AFC/ARC series addressable fire alarm control panels.
Key Features:
- Dual Input Monitoring: Monitors two separate dry contact circuits using a single addressable module.
- Class A/B Configuration: Supports two Class B circuits or one Class A monitoring circuit.
- Form C Relays: Provides two Form C relay contacts for connected control or interface functions.
- SLC Compatibility: Supports Class A, Class X, and Class B SLC configurations.
- Addressable Operation: Uses one SLC loop address with inputs and relays assigned as module sub-points.
- DIP Switch Addressing: Allows the device address to be configured using the integrated DIP switch.
- Flexible Installation: Mounts in a standard 4-inch square or double gang box with accessible wiring terminals.
- LED Status Indication: Uses a red LED to indicate polling and activated input status.
The PAD100-TRTI delivers the reliability and precision required for addressable monitoring and relay interfacing in fire alarm systems.
