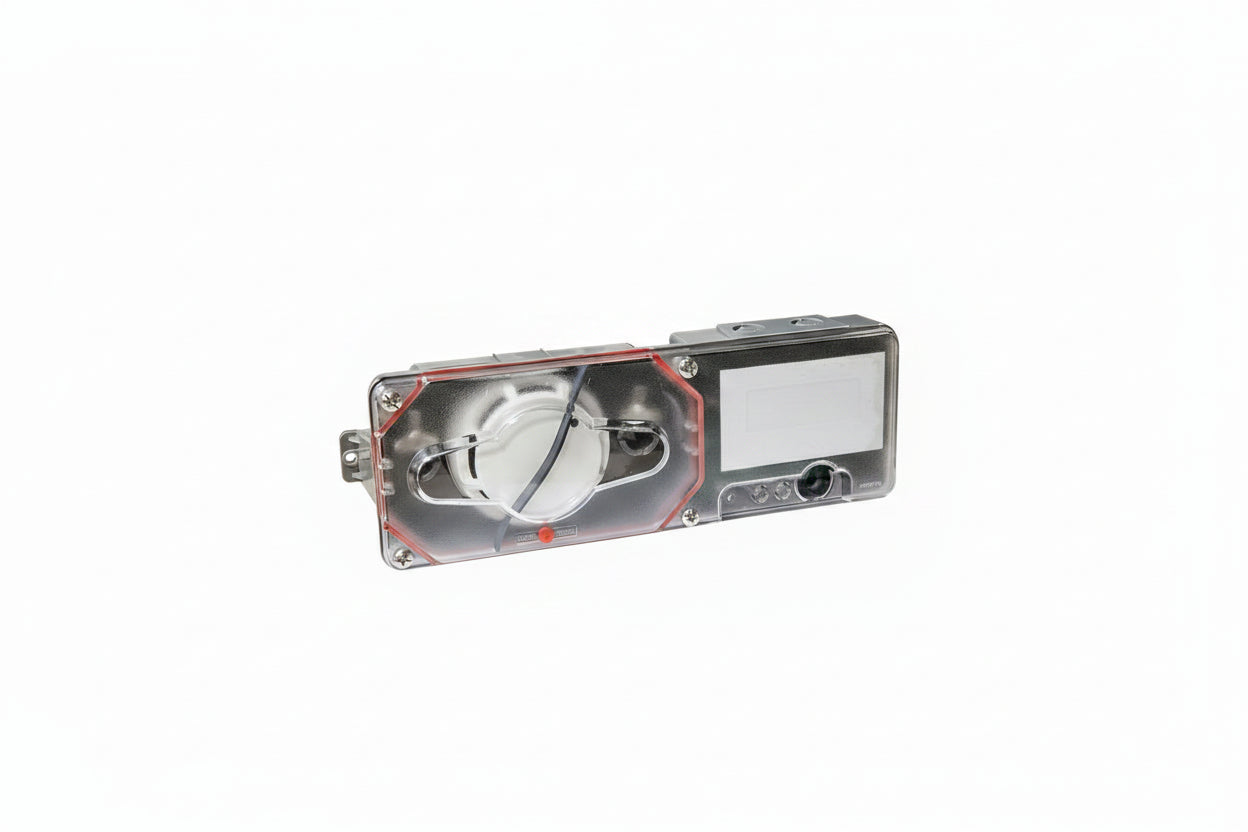

Potter PAD200-DUCTR Analog Addressable Duct Smoke Detector with Relay
- Regular price
- $402.00
- Sale price
- $402.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PAD200-DUCTR
Description
The Potter PAD200-DUCTR is an analog addressable duct smoke detector with an integrated relay for monitoring smoke in HVAC air ducts. It uses a photoelectric detector head and sampling tubes to identify smoke and combustion products moving through air-handling systems. The unit is designed for compatibility with Potter addressable fire alarm control panels in commercial, industrial, and residential applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Safety |
| Part Number | PAD200-DUCTR |
| Subcategory | Analog Addressable Duct Smoke Detectors |
| Product Series | PAD200 |
| Detector Head Model | PAD200-DD |
| Detector Head Type | Photoelectric |
| Operating Voltage | 24 VDC |
| Current Draw | 500 µA |
| Air Velocity Range | 100–4,000 ft/min |
| Ambient Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | 10%–85%, non-condensing |
| Housing Material | Plastic backbox with clear plastic cover |
| Housing Finish | Gray backbox with clear cover |
| Dimensions | 13.5 × 4.5 × 2.25 in |
| Relay Contact Rating | 8 A at 30 VDC; 10 A at 120 VAC; 10 A at 250 VAC |
| Sampling Tube Options | 2.5 ft, 5 ft, or 10 ft STN-series tubes |
| Compatible Control Panels | Potter IPA and AFC/ARC series addressable fire alarm control panels |
| Installation Features | Mounting template and two sheet metal screws included |
| Listings | UL 268A; CSFM |
| Weight | 2 lbs |
Information About PAD200-DUCTR
The PAD200-DUCTR belongs to Potter's PAD200 series of addressable duct smoke detection equipment. Its housing includes a PAD200-DD photoelectric detector head, a clear cover, and connections for the signaling line circuit and relay output. The detector supports air velocities from 100 to 4,000 feet per minute and uses a self-diagnostic test method for sensor verification. Its sampling system uses separately ordered STN-series intake tubes, while the included exhaust tube and mounting hardware support installation in suitable HVAC ductwork.
Key Features:
- Analog Addressable Detection: Communicates detector status through a compatible Potter addressable fire alarm system.
- Photoelectric Sensor: Uses the PAD200-DD detector head to identify smoke particles in moving duct air.
- Integrated Relay: Provides relay contacts for interfacing with compatible external equipment and control circuits.
- HVAC Duct Monitoring: Detects smoke and combustion products traveling through supply or return air ducts.
- Wide Air Velocity Range: Supports airflow conditions from 100 to 4,000 feet per minute.
- Self-Diagnostic Testing: Provides a sensor verification method for checking detector operation.
- Clear Protective Cover: Allows visual inspection of the detector assembly and internal components.
- Sampling Tube Compatibility: Uses STN-series sampling tubes available in multiple lengths for different duct widths.
The PAD200-DUCTR delivers the reliability and precision required for smoke detection and equipment interfacing in HVAC ductwork and compatible fire alarm systems.
