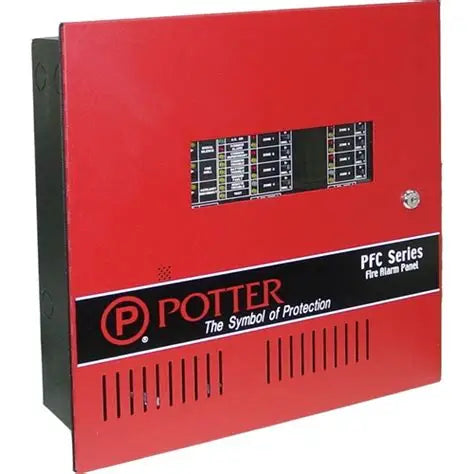

Potter PFC-5008 8-Zone Conventional Fire Alarm Control Panel
- Regular price
- $937.00
- Sale price
- $937.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PFC-5008
Description
Potter PFC-5008 is a microprocessor-based 8-zone conventional fire alarm control panel designed for small to medium commercial, residential, institutional, and industrial fire alarm systems. It provides configurable initiating and indicating circuits, a 5 A power supply, and an integrated UDACT-9100 digital communicator for system monitoring and notification.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Safety |
| Part Number | PFC-5008 |
| Subcategory | Fire Alarm Control Panels |
| Series | PFC-5000 |
| Panel Type | Conventional Fire Alarm Control Panel |
| Initiating Circuits | 8 Class B (Style B) or 4 Class A (Style D) |
| Indicating Circuits | 4 Class A/B (Style Z/Y) |
| Indicating Circuit Rating | 1.7 A maximum per circuit |
| Power Supply | 5 A |
| Smoke Detector Power | 24 VDC, 100 mA maximum, regulated resettable |
| AC Input | 120 VAC / 60 Hz or 240 VAC / 50 Hz |
| Battery Charging | 4–24 Ah batteries; cabinet space for up to 12 Ah |
| Remote Annunciators | Up to 3 RA8F units via RS-485 |
| Programming | DIP-switch configuration |
| Dimensions | 14.875 × 14.5 × 5 in (378 × 368 × 127 mm) |
| Weight | 7.26 kg |
Information About PFC-5008
The PFC-5008 is part of the Potter PFC-5000 series and incorporates the ZA42 expansion card as a factory-installed configuration. It supports eight Class B initiating circuits or four Class A initiating circuits, with selectable functions including waterflow, supervisory operation, and alarm verification. The panel provides four Class A/B indicating circuits rated at up to 1.7 A per circuit and supports several notification patterns. Its built-in RS-485 interface supports up to three RA8F multiplexed remote annunciators, while DIP-switch configuration simplifies system setup.
Key Features:
- 8-Zone Capacity: Provides eight conventional initiating circuits for fire detection system zoning.
- Class A/B Configuration: Supports eight Class B or four Class A initiating circuits.
- Notification Outputs: Includes four Class A/B indicating circuits rated up to 1.7 A each.
- 5 A Power Supply: Provides system power and regulated resettable smoke detector power.
- UDACT-9100 Communicator: Includes a digital communications module for compatible monitoring applications.
- RS-485 Interface: Supports up to three RA8F multiplexed remote annunciators.
- Alarm Verification: Provides selectable alarm verification on initiating circuits.
- DIP-Switch Programming: Allows straightforward configuration of system functions and circuit operation.
The PFC-5008 delivers the reliability and configurable circuit capacity required for conventional fire alarm installations in commercial, residential, institutional, and industrial applications.
