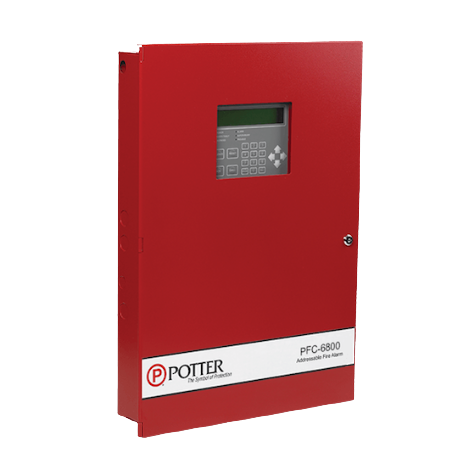

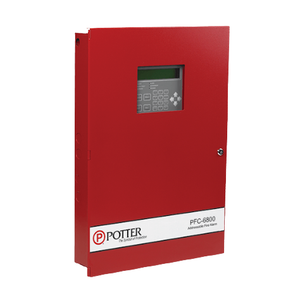

Potter PFC-6800 Expandable Analog Addressable Fire Alarm Control Panel
- Regular price
- $1,799.00
- Sale price
- $1,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PFC-6800
Description
The Potter PFC-6800 is an analog/addressable Fire Alarm Control Panel designed to monitor, control, and coordinate large fire detection and notification systems. It supports 127 addressable points on its onboard SLC and can be expanded to a maximum system capacity of 1,016 points for commercial and industrial fire protection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Safety |
| Part Number | PFC-6800 |
| Subcategory | Fire Alarm Control Panels |
| Product Type | Analog/Addressable Fire Alarm Control Panel |
| Standard Point Capacity | 127 addressable points |
| Maximum Point Capacity | 1,016 addressable points |
| SLC Loops | 1 standard, expandable to 8 loops |
| Addressable Devices per SLC | Up to 127 devices or modules |
| Expansion Cards | Supports additional SLCE-127 cards |
| Power Supply Rating | 10 Amps |
| Notification Appliance Circuits | 6 regulated NACs |
| NAC Rating | Up to 3 Amps per circuit |
| I/O Circuits | 4 multifunctional input/output circuits |
| I/O Circuit Rating | Up to 1 Amp per circuit |
| Software Zones | Up to 1,500 |
| Display | 4 × 40 LCD with keypad |
| P-Link Communication | Dual P-Link communication circuits |
| Ethernet Port | Programming, reporting, and network connectivity |
| IP Communication | Built-in IP communicator |
| Email Functions | System status, reports, events, and reminders |
| Optional DACT | Compatible with UD-1000 dual-line digital alarm communicator |
| Strobe Synchronization | Potter/AMSECO, Gentex, Cooper/Wheelock, and System Sensor |
| AC Input at 120 VAC | 5.0 Amps, 50/60 Hz |
| AC Input at 240 VAC | 3.0 Amps, 50/60 Hz |
| Battery Current – Standby | 130 mA |
| Battery Current – Alarm | 220 mA |
| Battery Capacity | Cabinet accommodates 8 Ah or 18 Ah batteries; charges up to 55 Ah |
| SLC Resistance | Up to 50 Ohms |
| Wiring Requirements | NEC-compliant wiring; twisted or shielded wire not required |
| Dimensions (W × H × D) | 17 5/8 in × 26 in × 3 3/4 in |
| Weight | 16 lb (7.26 kg) |
Information About PFC-6800
The PFC-6800 is a Potter expandable fire alarm control panel built around the Potter/Nohmi addressable device protocol. Its onboard Signaling Line Circuit supports any combination of up to 127 compatible smoke detectors, heat detectors, and addressable modules, while additional SLCE cards can expand the system to eight loops. The panel uses standard NEC-compliant wiring and the SLC supports up to 50 ohms of resistance without requiring twisted or shielded cable. A metal cabinet with a locking door, LCD display, keypad, Ethernet connectivity, and programmable system functions provides centralized operation and configuration.
Key Features:
- Expandable Point Capacity: Supports 127 addressable points and expands to 1,016 points with additional SLCE cards.
- Eight-Loop Architecture: Supports one onboard SLC with expansion capability for up to eight total loops.
- 10 Amp Power Supply: Provides a 10 Amp system power supply for connected fire alarm equipment.
- Six NAC Circuits: Includes six regulated Notification Appliance Circuits rated at up to 3 Amps each.
- Flexible I/O Circuits: Provides four multifunctional input/output circuits rated at 1 Amp each.
- Ethernet Connectivity: Includes an Ethernet port for programming, network connectivity, reporting, and IP communication.
- 1,500 Software Zones: Supports up to 1,500 programmable software zones, including cross-zoning and counting functions.
- Dual P-Link Circuits: Supports annunciators, remote power supplies, relay modules, communication accessories, and other compatible P-Link devices.
The PFC-6800 delivers the reliability and precision required for expandable addressable fire detection, monitoring, control, and notification systems.
