Potter RMS-1T-WP-LP Weatherproof Dual-Action Manual Fire Alarm Pull Station SPST

Description

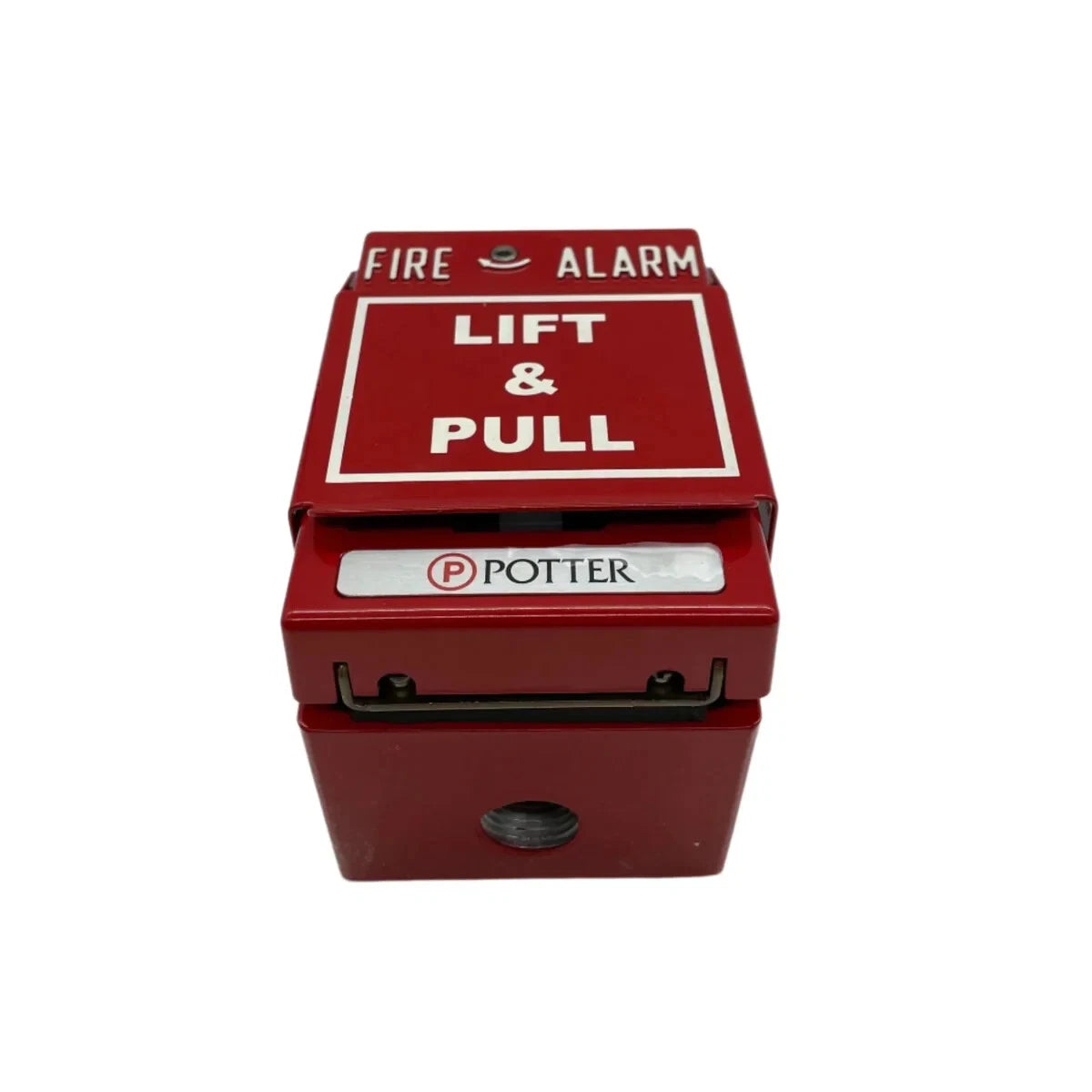

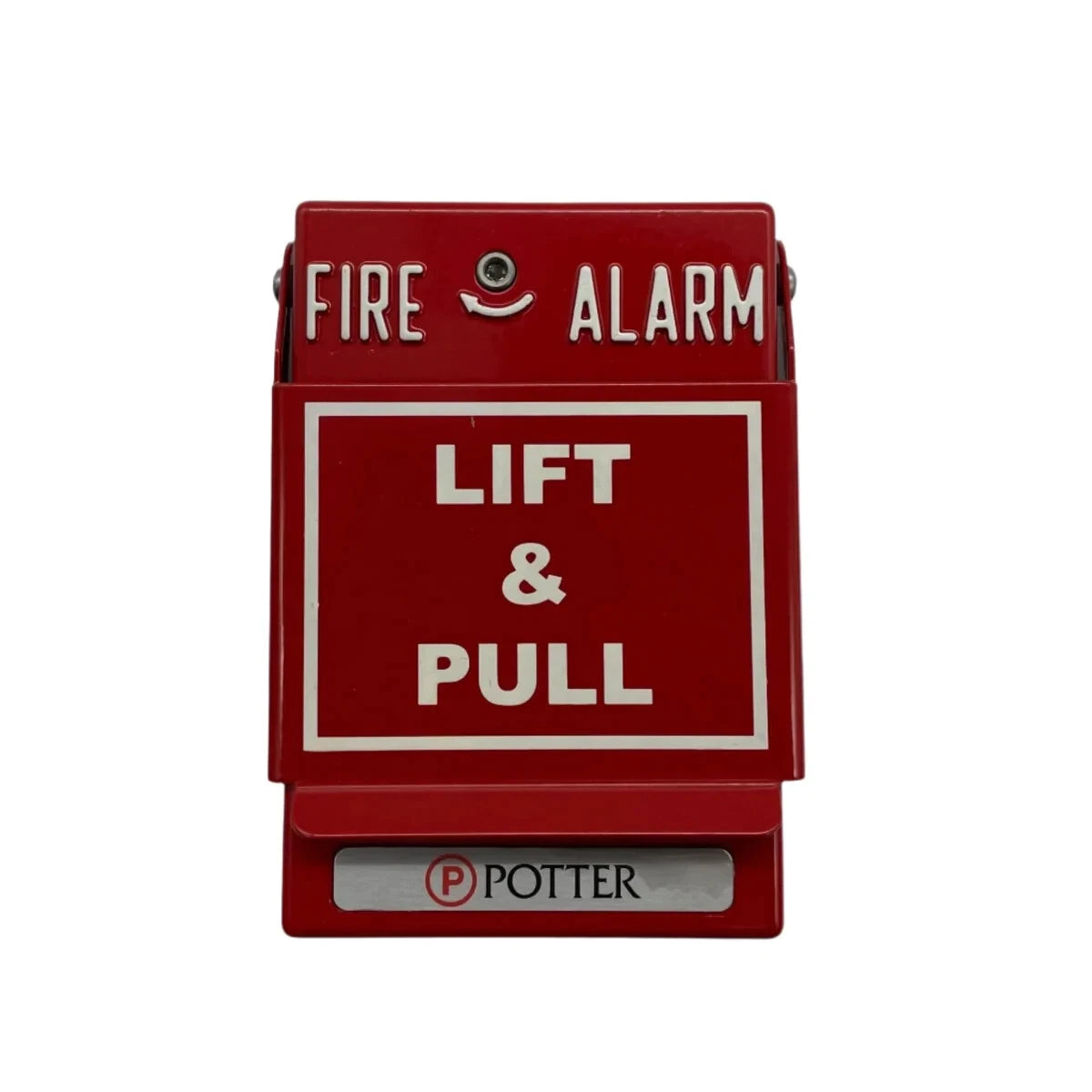

The Potter RMS-1T-WP-LP is a weatherproof dual-action manual fire alarm pull station designed for emergency alarm activation in outdoor, damp, and industrial environments. Potter part number RMS-1T-WP-LP features a durable die-cast metal housing, gold-plated SPST contacts, and a protective lift-and-pull mechanism to reduce accidental activation. Its corrosion-resistant red finish and included weatherproof backbox support installation in exposed locations such as parking structures, loading docks, and industrial facilities.

Technical Specifications

Information About RMS-1T-WP-LP

The RMS-1T-WP-LP is part of Potter's Special Application Pull Station Series, manufactured for fire alarm installations requiring durable construction and environmental protection. Its die-cast metal enclosure incorporates a protective lift cover, a manually operated pull handle, and a snap-action switch with gold-plated contacts for reliable electrical signaling. The station features a dedicated terminal block for field wiring and a front-access hex-key reset mechanism that allows restoration after activation without removing the unit from its mounting surface. Designed for connection to compatible conventional fire alarm initiating circuits, the assembly includes a weatherproof backbox and supports installation in outdoor and moisture-exposed environments.

Key Features:

• Weatherproof Construction: Designed for outdoor and damp-location fire alarm installations requiring environmental protection.

• Dual-Action Activation: Requires lifting the protective cover before pulling the alarm handle to reduce accidental operation.

• Die-Cast Metal Housing: Provides mechanical durability and resistance to damage in industrial and commercial environments.

• Gold-Plated SPST Contacts: Features single-pole, single-throw contacts for dependable alarm circuit switching.

• Snap-Action Switch: Incorporates a 10 A mechanical switch with specified electrical contact ratings of 1 A at 30 VDC and 1 A at 125 VAC.

• Hex-Key Reset Mechanism: Allows authorized personnel to restore the station after activation using a hex key.

• Front-Access Reset: Permits resetting the station without removing the assembly from its mounting location.

• Dedicated Wiring Terminals: Includes a terminal block for connecting field wiring to compatible fire alarm initiating circuits.

• Corrosion-Resistant Finish: Fully coated metal components help protect against environmental exposure and surface deterioration.

• Weatherproof Backbox Included: Supplied with a compatible protective mounting enclosure for exposed installations.

• Conventional Fire Alarm Compatibility: Supports integration with compatible fire alarm control panels using supervised dry-contact initiating circuits.

• Fire Safety Certifications: Potter Special Application Pull Stations are available with UL, cUL, FM, CSFM, and MEA approvals, subject to the specific model listing.

The RMS-1T-WP-LP delivers the reliability and precision required for outdoor manual fire alarm initiation, emergency signaling, and fire protection in moisture-exposed commercial and industrial environments.
