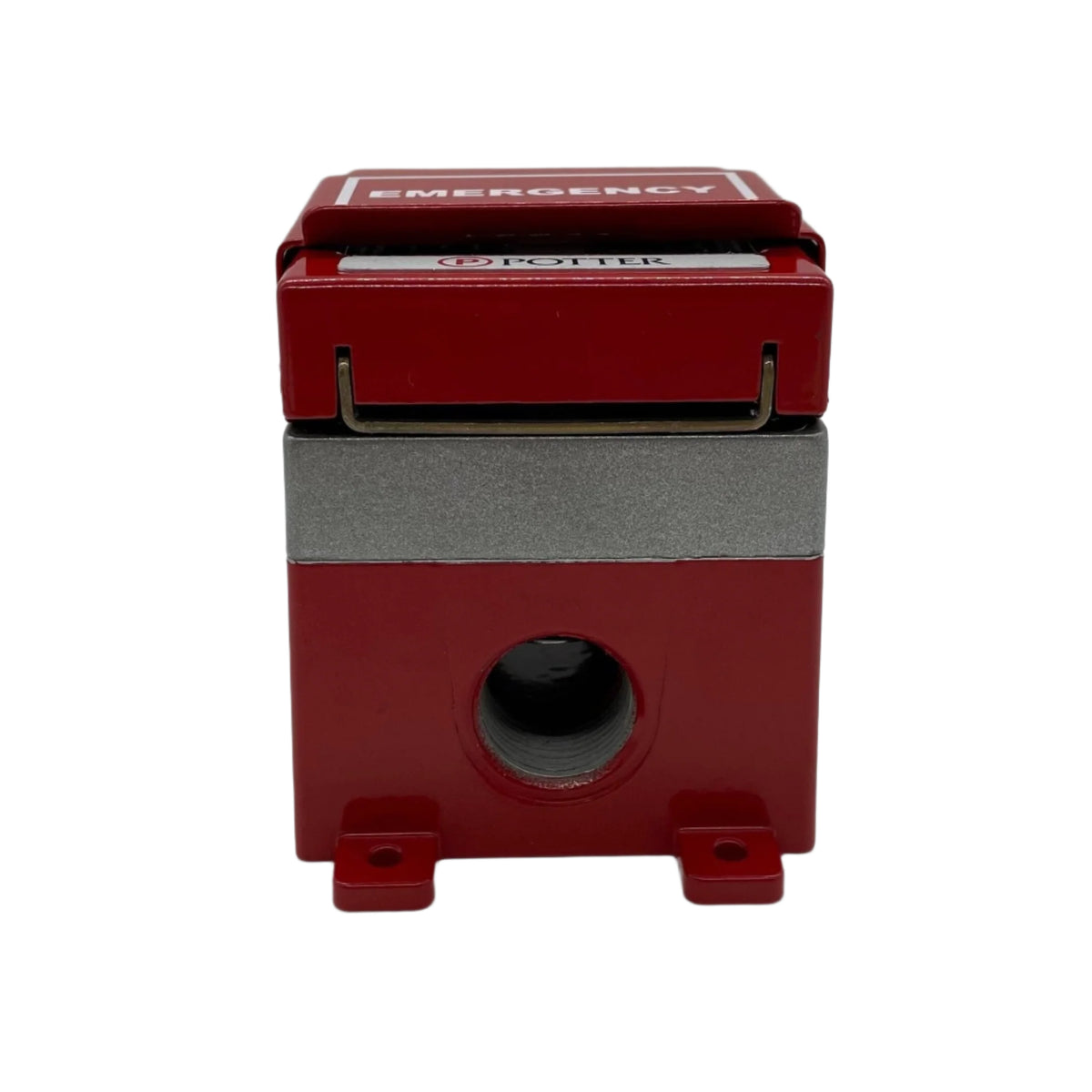

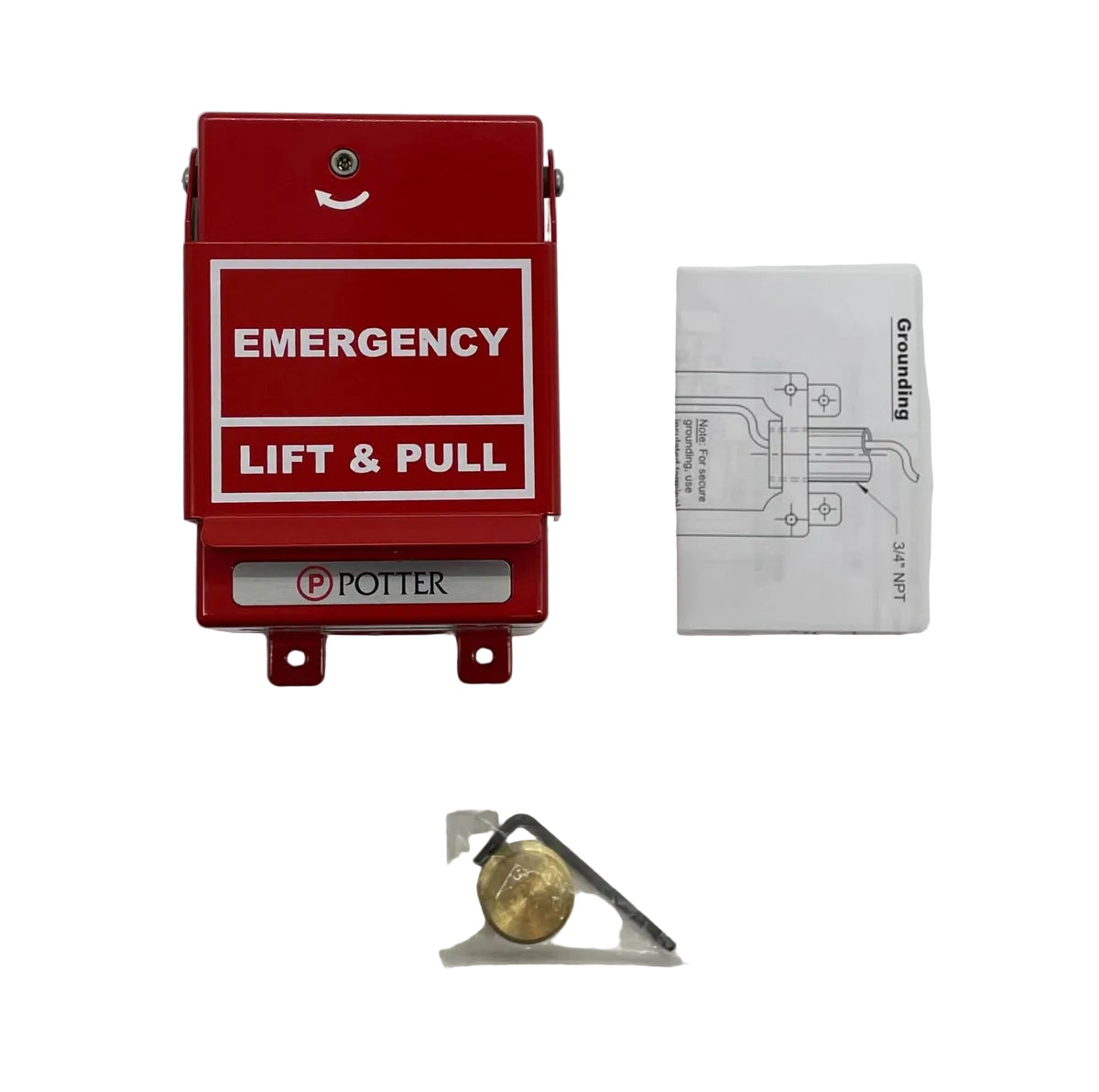

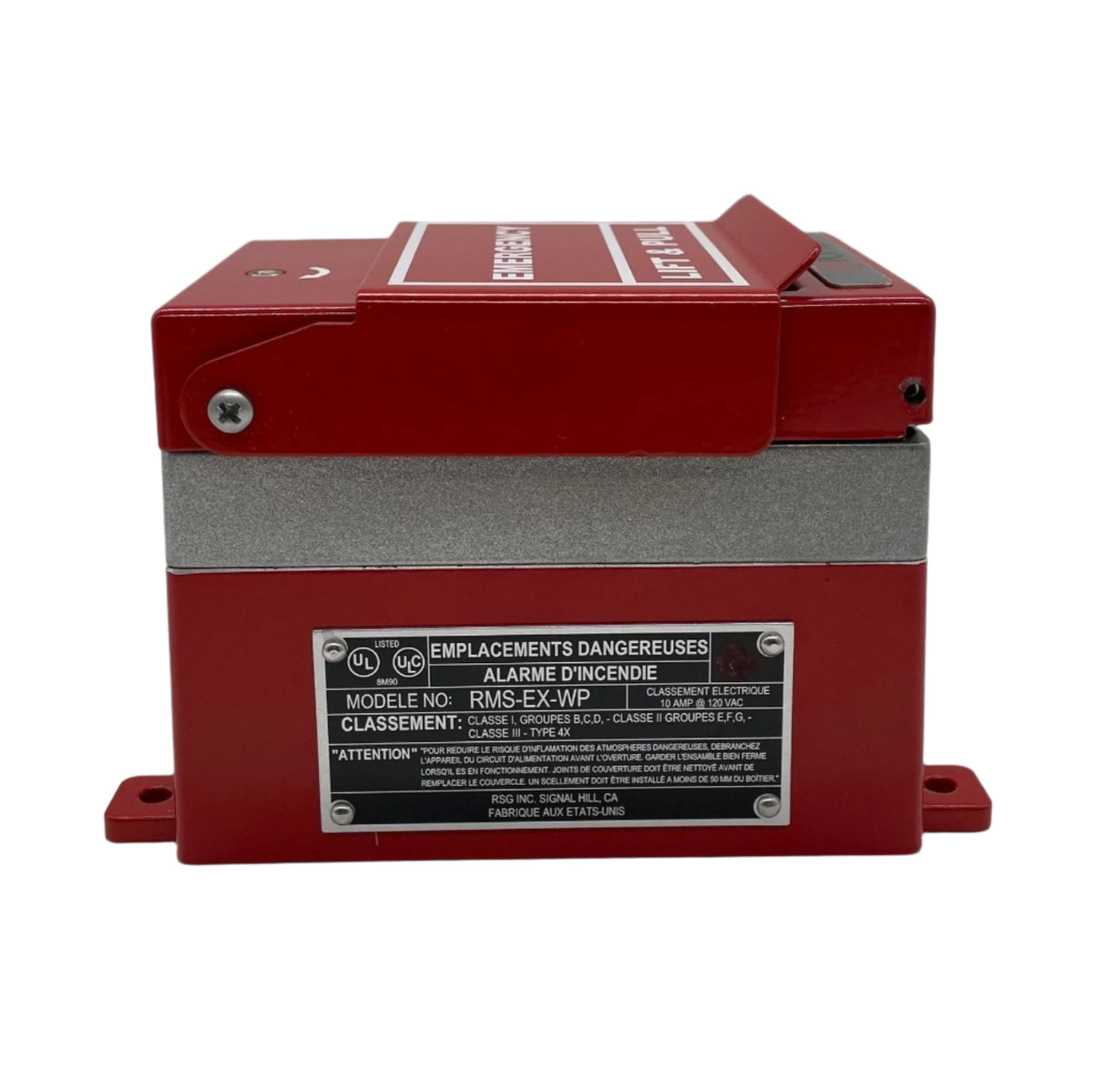

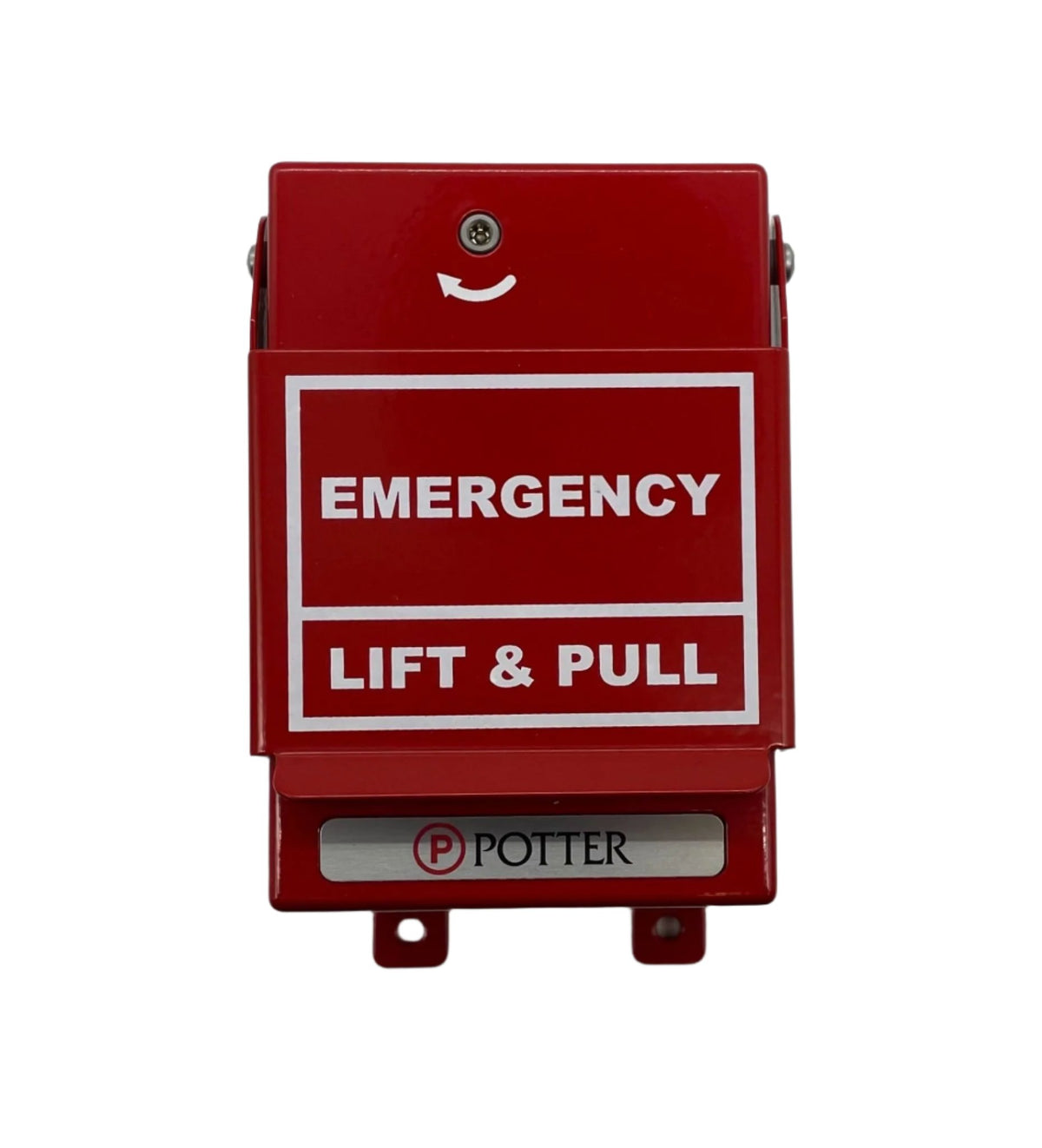

Potter RMS-6T-EXP-WP Explosion-Proof Weatherproof Fire Alarm Pull Station
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RMS-6T-EXP-WP
Description
Potter RMS-6T-EXP-WP is a single-action explosion-proof manual fire alarm pull station designed for hazardous and outdoor environments. Its die-cast metal construction, NEMA 4X weatherproof rating, DPDT contacts, and hazardous-location approvals support dependable manual fire alarm activation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Safety |
| Part Number | RMS-6T-EXP-WP |
| Subcategory | Manual Fire Alarm Pull Stations |
| Product Type | Explosion-Proof Manual Pull Station |
| Operation | Single Action |
| Switch Type | DPDT (Double Pole Double Throw) |
| Contact Rating | 10 A |
| Housing Material | Die-Cast Metal |
| Finish | High-Gloss Red Enamel |
| Environmental Rating | NEMA 4X |

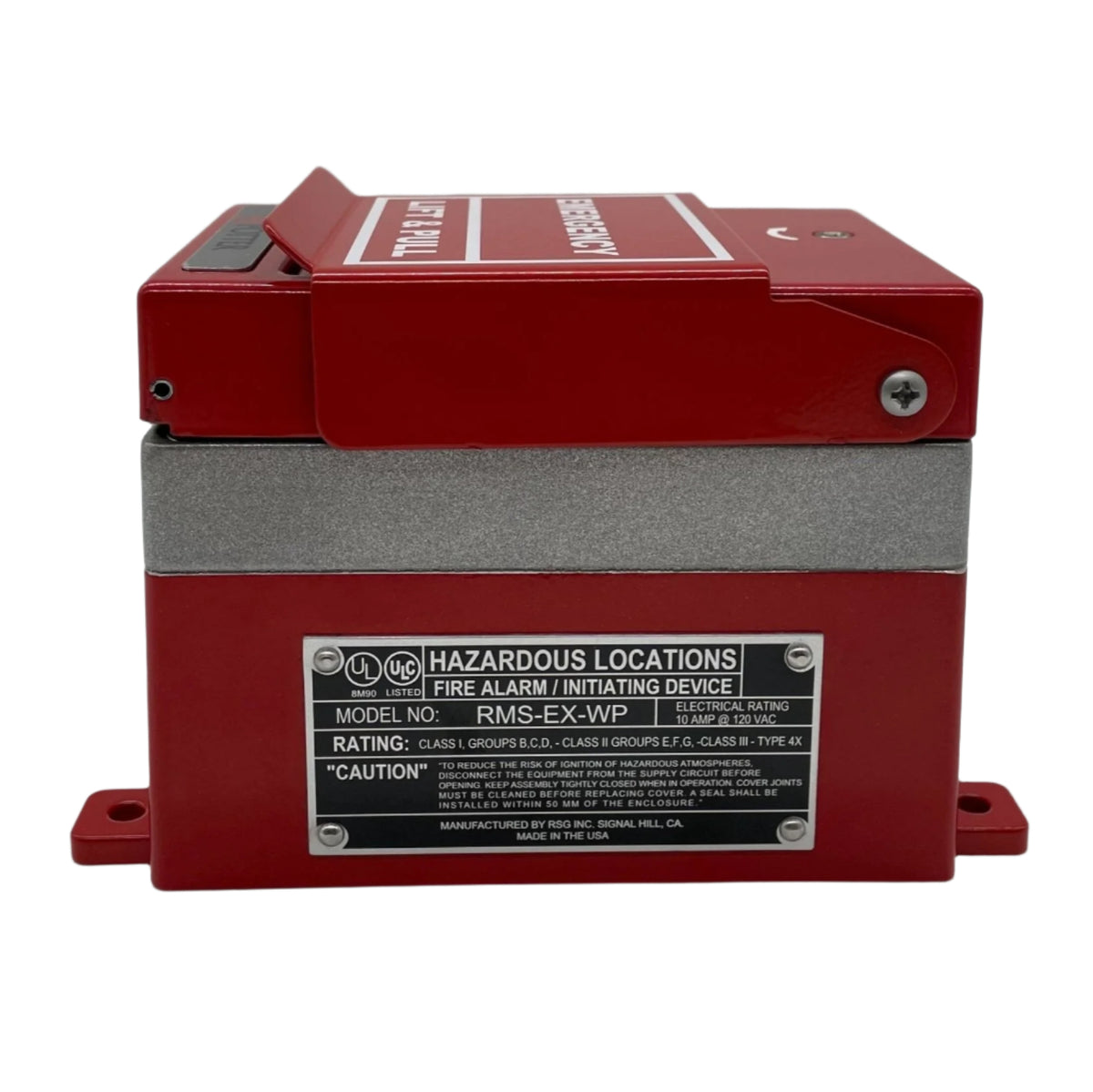

| Hazardous Locations | Class I Groups B, C, D; Class II Groups E, F, G; Class III |
| Connections | Screw Terminal |
| Activation | Pull-Down Handle with Latching Mechanism |
| Reset | Key / Access Reset |
| Approvals | UL Listed, FM Approved, Marine, CSFM, MEA, ADA |
| Weight | 2 lb |
Information About RMS-6T-EXP-WP
The RMS-6T-EXP-WP is part of Potter's RMS series of manual fire alarm stations and uses a high-strength die-cast metal housing for demanding installations. The standard configuration features a red enamel finish, raised identification lettering, screw-terminal connections, and a double-pole double-throw switch. The single-action handle latches in the activated position and can be reset with the appropriate key or access mechanism. The station is listed for hazardous locations including Class I Groups B, C, and D, Class II Groups E, F, and G, and Class III, while also carrying NEMA 4X approval.
Key Features:
- Explosion-Proof Construction: Designed for manual fire alarm activation in hazardous environments.
- Die-Cast Metal Housing: Provides a durable enclosure for demanding indoor and outdoor installations.
- NEMA 4X Rating: Provides protection suitable for weather-exposed applications.

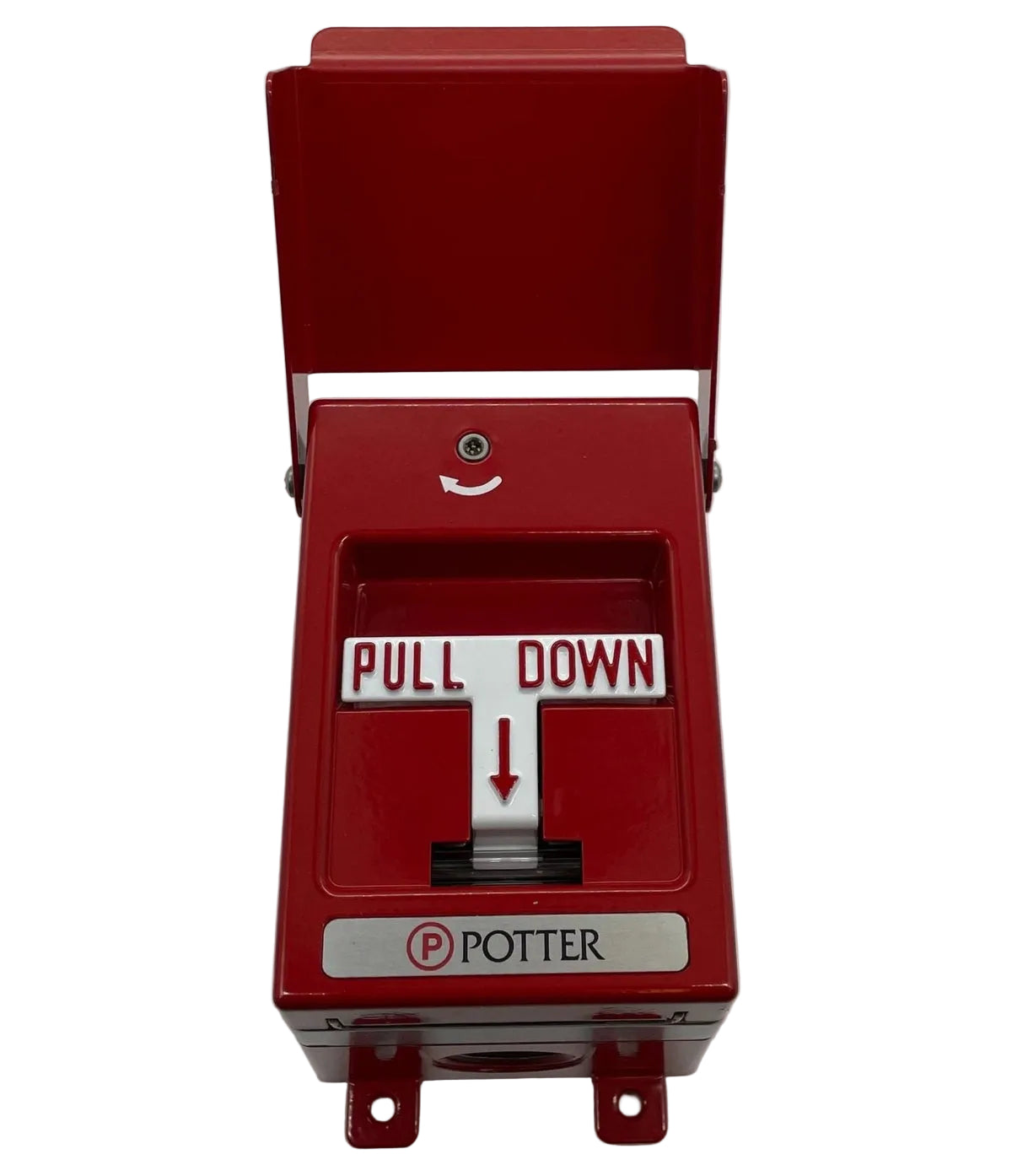

- Single-Action Operation: Activates by pulling the front handle downward until it latches.
- DPDT Switch: Provides two sets of Form C contacts for compatible fire alarm circuit connections.
- Screw Terminals: Provides straightforward field wiring to the fire alarm control system.
- Hazardous-Location Approvals: Listed for specified Class I, Class II, and Class III hazardous environments.
- Visible Activation: Latched handle remains visibly identifiable after activation from a distance.
The RMS-6T-EXP-WP delivers durable manual fire alarm activation and environmental protection for hazardous-location and outdoor fire safety installations.
