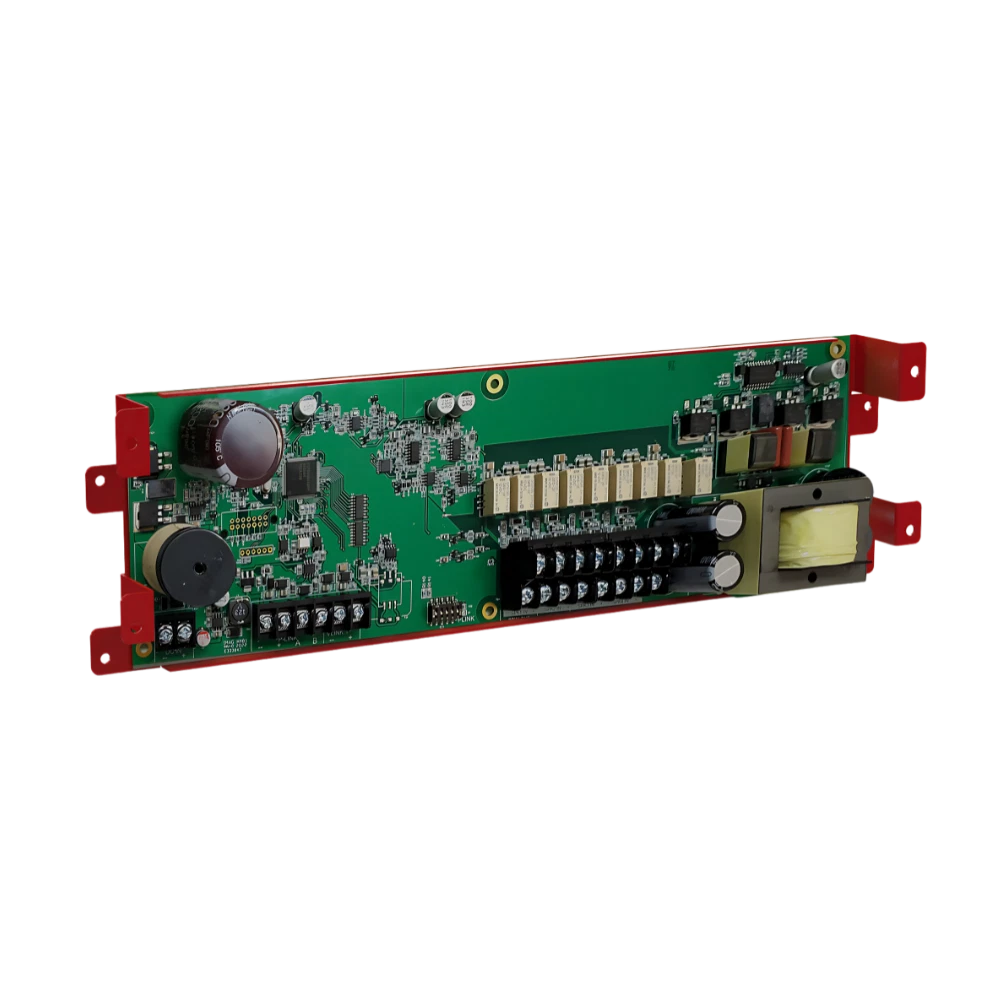

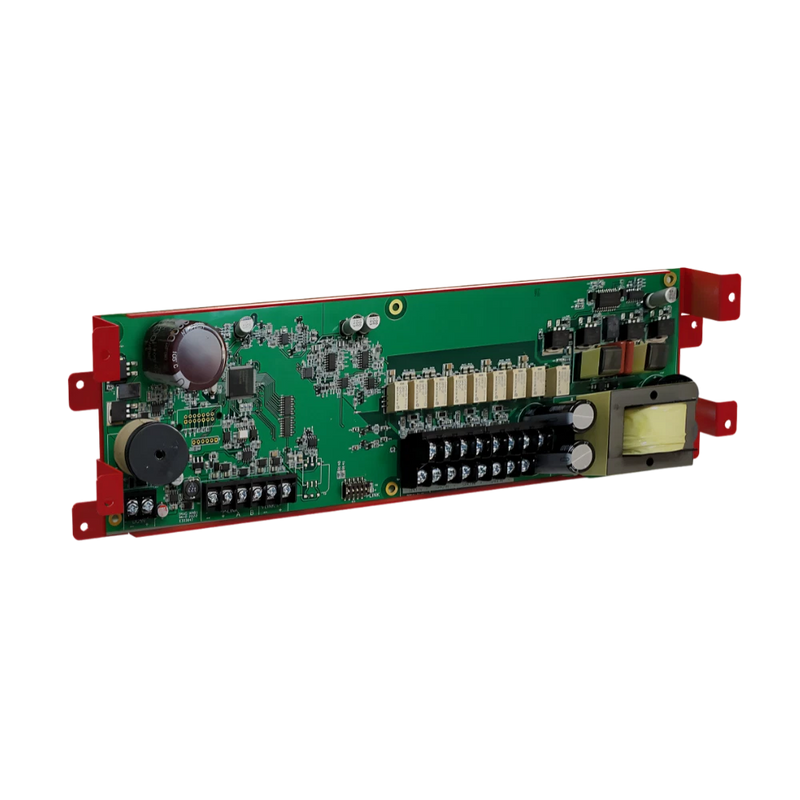

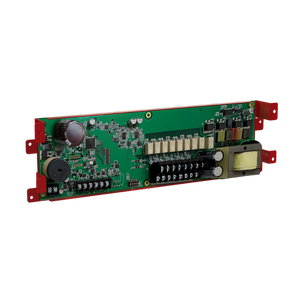

Potter SCA-5070INT 50W Single-Channel Integrated Voice Amplifier
- Regular price
- $1,402.00
- Sale price
- $1,402.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SCA-5070INT
Description
The Potter SCA-5070INT is a single-channel 50W integrated amplifier designed for Potter voice evacuation and emergency communication systems. It provides four Class A or four Class B speaker circuits with selectable 25VRMS or 70VRMS operation for use in compatible Potter fire alarm and voice evacuation equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Voice Evacuation Systems |
| Part Number | SCA-5070INT |
| Subcategory | Integrated Voice Amplifiers |
| Amplifier Type | Single-channel integrated amplifier |
| Output Power | 50W |
| Speaker Voltage | 25VRMS or 70VRMS, selectable |
| Speaker Outputs | 4 Class A or 4 Class B circuits |
| Communication Bus | P-Link |
| Audio Distribution | V-Link 1 audio riser |
| Power Supply | Constant 24VDC |
| Standby Current | 50 mA |
| Alarm Current | 138 mA |
| Operating Temperature | 32° to 120°F (0° to 49°C) |
| Operating Humidity | 10% to 93%, non-condensing |
| Mounting | Integrated stacker bracket |
| Compatible Systems | IPA-4000V, AFC-1000V, LOC-1000, PSN-1000E |
| Maximum Amplifiers | IPA-4000V: 31; AFC-1000V: 10 |
| PSN-1000E Capacity | Up to 2 SCA-5070INT amplifiers |
| Circuit Type | Power-limited and supervised |
| End-of-Line Resistor | 15 kΩ on the last V-Link device |
| UPC Code | 785192028734 |
| Weight | 1 lb |
Information About SCA-5070INT
The SCA-5070INT is a compact integrated amplifier designed for installation within the IPA-4000V, AFC-1000V, LOC-1000, and PSN-1000E systems. It communicates through Potter's P-Link communication bus, while audio is distributed through the V-Link 1 audio riser. The amplifier operates from constant 24VDC supplied by the fire panel or a configured PSN-1000 NAC circuit. Its speaker circuit voltage is configured through Potter panel programming software, and all connected circuits are power-limited and supervised.
Key Features:
- 50W Amplification: Provides up to 50W of audio power for connected speaker circuits.
- Single-Channel Design: Handles one audio channel within compatible Potter voice evacuation systems.
- Selectable Output: Supports either 25VRMS or 70VRMS speaker circuit operation.
- Four Speaker Circuits: Provides four Class A or four Class B speaker outputs.
- P-Link Communication: Uses Potter's P-Link bus for power and RS-485 communication.
- V-Link Audio: Receives distributed audio through the V-Link 1 audio riser.
- Integrated Mounting: Includes a stacker bracket for secure installation within compatible enclosures.
- Supervised Circuits: Speaker and associated connections are power-limited and supervised.
The SCA-5070INT delivers the reliability and precision required for integrated voice evacuation and emergency audio distribution systems.
