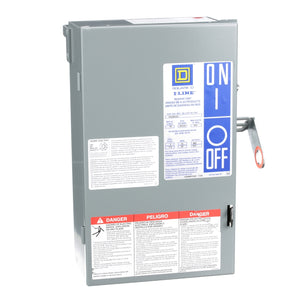

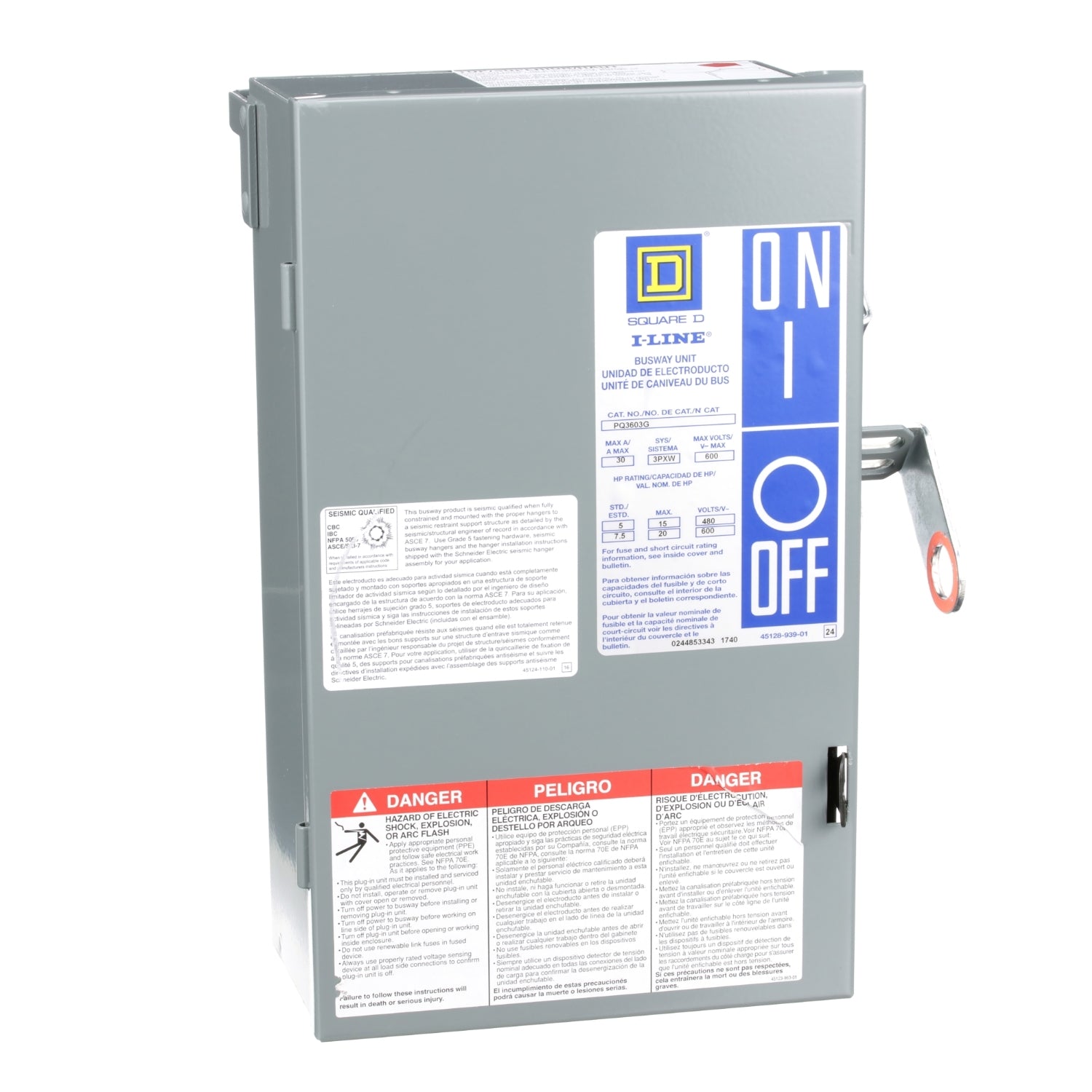

PQ3603G | Schneider Electric Plug-in Unit
- Regular price
- $805.00
- Sale price
- $805.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PQ3603G
Description
The PQ3603G Plug-in Unit is part of the Square D I-Line Busway product range, designed to provide electrical distribution in both commercial and industrial applications. I-Line™ electrical busway offers a comprehensive selection of compatible, sandwich-type feeder and plug-in busway lengths and fittings.
Constructed in three-pole and four-pole neutral configurations, these busways are suitable for system voltages of 600 volts and are rated to allow 100% of the current to flow. The design of these busways emphasizes maximum flexibility, ease of installation, and electrical efficiency in the distribution of low power.
Technical Specifications
|
Part # |
PQ3603G |
|
Category |
Circuit Breaker |
|
Subcategory |
Busway Switch/Plug |
|
Electrical Connection |
Plug-in |
|
[Ue] rated operational voltage |
600 V AC |
|
[Ie] rated operational current |
30 A |
|
Number of poles |
3 |
|
Busbar description |
Ground |
|
Fuse type |
H, K, J or R |
|
Disconnector device type |
Fusible disconnect |
Information About PQ3603G
The PQ3603G is a plug-in unit designed for use with the I-Line Busway system by Square D. The I-Line Busway range encompasses a variety of products tailored for electrical distribution in both commercial and industrial settings. It features a comprehensive selection of compatible, sandwich-type feeder and plug-in busway lengths and fittings.
These busways are engineered with versatility in mind, offering configurations in three-pole and four-pole neutral setups to accommodate system voltages of up to 600 volts. They are engineered to facilitate the unimpeded flow of current, allowing for optimal electrical efficiency in the distribution of low power.
The PQ3603G specifically is a plug-in fusible unit, equipped with a fusible disconnect for enhanced safety and protection. It is rated for a current of 30 amperes and can handle a maximum voltage of 600 volts. This unit is designed to be seamlessly integrated into a 3-pole busway configuration.
Utilizing a class H fuse, the PQ3603G ensures reliable performance and protection against overcurrent conditions. Additionally, it boasts UL and CSA certifications, signifying compliance with rigorous safety and performance standards set by regulatory bodies.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
