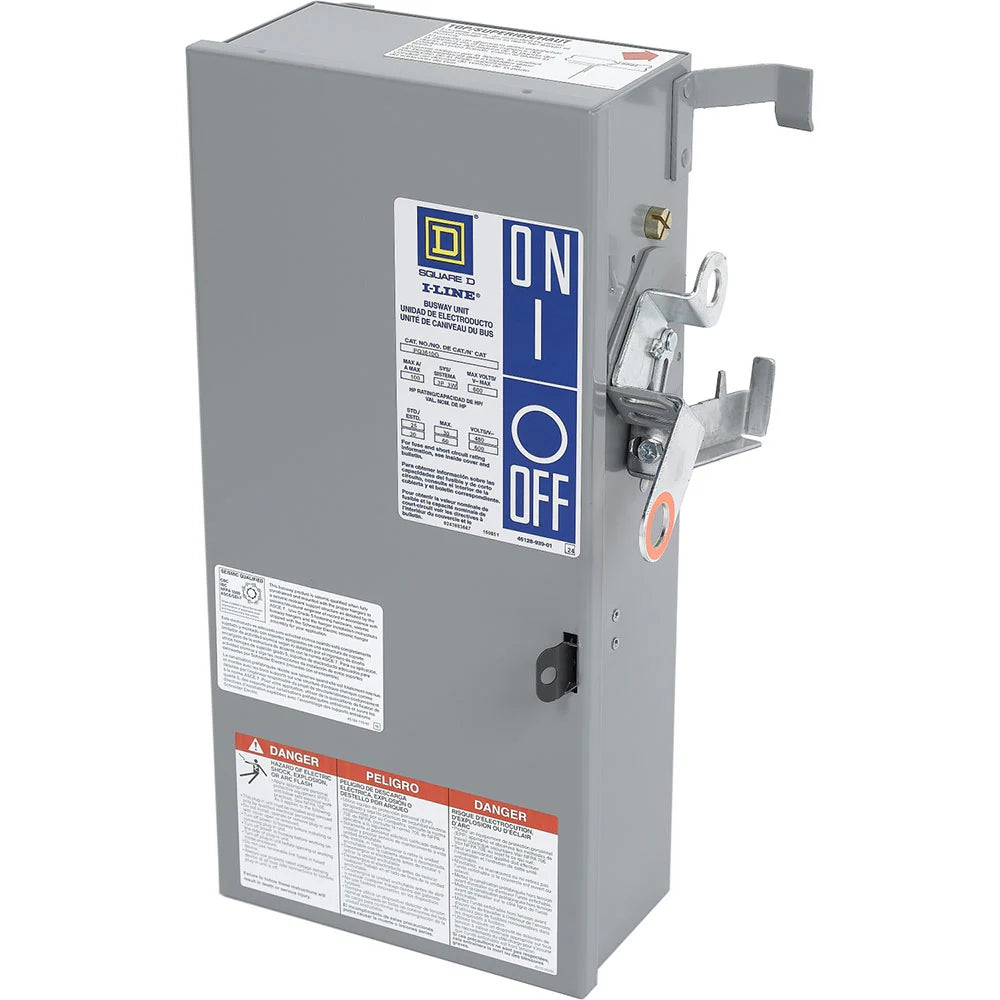

PQ3610G | Schneider Electric Control
- Regular price
- $1,985.00
- Sale price
- $1,985.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PQ3610G
Description
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Category |
Controls & Indicators |
|
Subcategory |
Control |
|
Type |
I-Line Fusible Plug-In Unit |
|
Current Rating |
100 AMP |
|
Voltage Rating |
600 V |
|
Poles |
3-Pole |
|
Fuse Type |
Class H Fuse |
Information About PQ3610G
The PQ3610G is an I-Line fusible plug-in unit categorized under Controls & Indicators, designed specifically to provide safe and reliable circuit control in industrial and commercial electrical systems. As part of the Control subcategory, this device is engineered to manage power distribution by offering effective protection against overcurrent conditions through its integrated Class H fuse. Its robust design and dependable performance make it suitable for demanding applications where precise control and circuit protection are critical.
The PQ3610G is rated for a current of 100 amps, which allows it to handle moderate electrical loads typically encountered in industrial machinery, lighting systems, and commercial power distribution setups. The 100-amp rating ensures that the device can manage significant electrical currents without risk of overheating or malfunction, providing consistent and stable performance across various operational conditions. This current capacity makes the unit an ideal solution for applications requiring a balance between current-handling capabilities and the need for overcurrent protection to safeguard equipment and maintain operational integrity.
With a voltage rating of 600 volts, the PQ3610G is designed to operate within high-voltage systems. This makes it suitable for industrial environments where large equipment and systems draw significant power. The 600V rating enables the unit to function effectively in a wide range of industrial applications, ensuring that it can withstand and control high-voltage circuits without compromising safety or performance. This high-voltage capability allows it to be used in a variety of settings, including manufacturing plants, utility substations, and other environments where heavy-duty electrical control is necessary.
The PQ3610G features a 3-pole configuration, allowing it to control three-phase electrical systems, which are commonly used in industrial and commercial power distribution due to their efficiency and capacity to handle larger loads. The 3-pole design ensures that the unit can simultaneously control and protect all three phases of a three-phase system, providing balanced and secure power management. This feature is essential for ensuring that three-phase circuits are properly isolated and protected from overcurrent or short circuit conditions, contributing to overall system reliability and safety.
