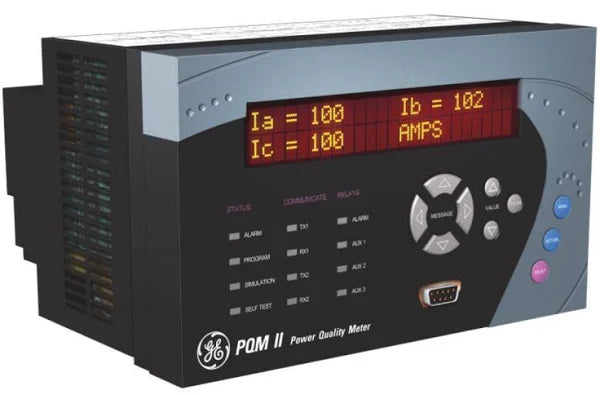

PQMII-T20-C-A | General Electric PQM II Power Quality Meter
- Regular price
- $4,164.00
- Sale price
- $4,164.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PQMII-T20-C-A
Description
The GE Fanuc PQMII-T20-C-A is an advanced power quality meter engineered for continuous monitoring of three-phase electrical systems. It provides detailed evaluation of power quality parameters to support efficient operation and protect electrical assets. The meter is commonly used in industrial plants, utilities, and commercial facilities requiring accurate detection of power disturbances and consumption trends.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | GE Fanuc |
| Category | Power Quality & Monitoring Equipment |
| Part Number | PQMII-T20-C-A |
| Subcategory | Power Quality Meter |
| Voltage Range | 20–60 VDC / 20–48 VAC, 50/60 Hz |
| Power Consumption | 20 VA |
| Analog Input | One 4–20 mA input channel |
| Analog Outputs | Four isolated analog outputs |
| Relay Outputs | Four relay outputs for alarm/control |
| Communication Interfaces | RS485 (rear), RS232 (front), Modbus protocol |
| Harmonic Analysis | Up to 63rd order |
| Sampling Capabilities | High-speed sampling for transient capture |
| Alarm Settings | Configurable thresholds and relay actions |
| Data Logging | Supports time-based and event-based logging |
| Display Type | Large LCD for measurement and alarm viewing |
| Weight | Approx. 3.02 lbs |
| Application Use | Industrial power monitoring, utility systems, commercial electrical networks |
| Design | Panel-mount meter with rugged construction |
Information About PQMII-T20-C-A
The PQMII-T20-C-A is part of the GE Fanuc PQMII series, a family of precision meters developed for power quality diagnostics and system condition tracking. It features multi-range AC/DC power supply capability, extensive harmonic analysis, and high-speed sampling for capturing transient events. The unit supports Modbus communication over RS485 and RS232, enabling seamless integration with SCADA, automation systems, and facility monitoring platforms. Its analog and relay outputs provide flexible control, alarming, and process interfacing. Designed for demanding electrical environments, the PQMII-T20-C-A helps maintain system reliability while offering comprehensive long-term data logging and alarm management.
Key Features:
- Voltage Flexibility: Accepts 20–60 VDC or 20–48 VAC at 50/60 Hz for broad installation compatibility.
- Power Efficiency: Consumes only 20 VA, suitable for control cabinets and low-power systems.
- Analog Input: Includes a 4–20 mA input channel for external process signals.
- Relay Outputs: Four independent relays support alarms, trip functions, or system control.
- Analog Outputs: Provides four isolated analog outputs for remote indication or PLC interfacing.
- Communication: Offers Modbus connectivity via RS485 (rear) and RS232 (front) ports.
- Harmonic Measurement: Performs harmonic analysis up to the 63rd order.
- High Sampling Rate: Captures transient disturbances with fast sampling and high accuracy.
- Alarm Configuration: Customizable thresholds and relay actions for event notification.
- Data Logging: Supports both event-based and time-based data logging for historical analysis.
- Display: Large, easy-to-read LCD panel for on-site measurement viewing.
- Construction: Built for industrial environments requiring continuous power quality monitoring.
The PQMII-T20-C-A delivers the reliability and precision needed for electrical distribution and industrial monitoring applications.
