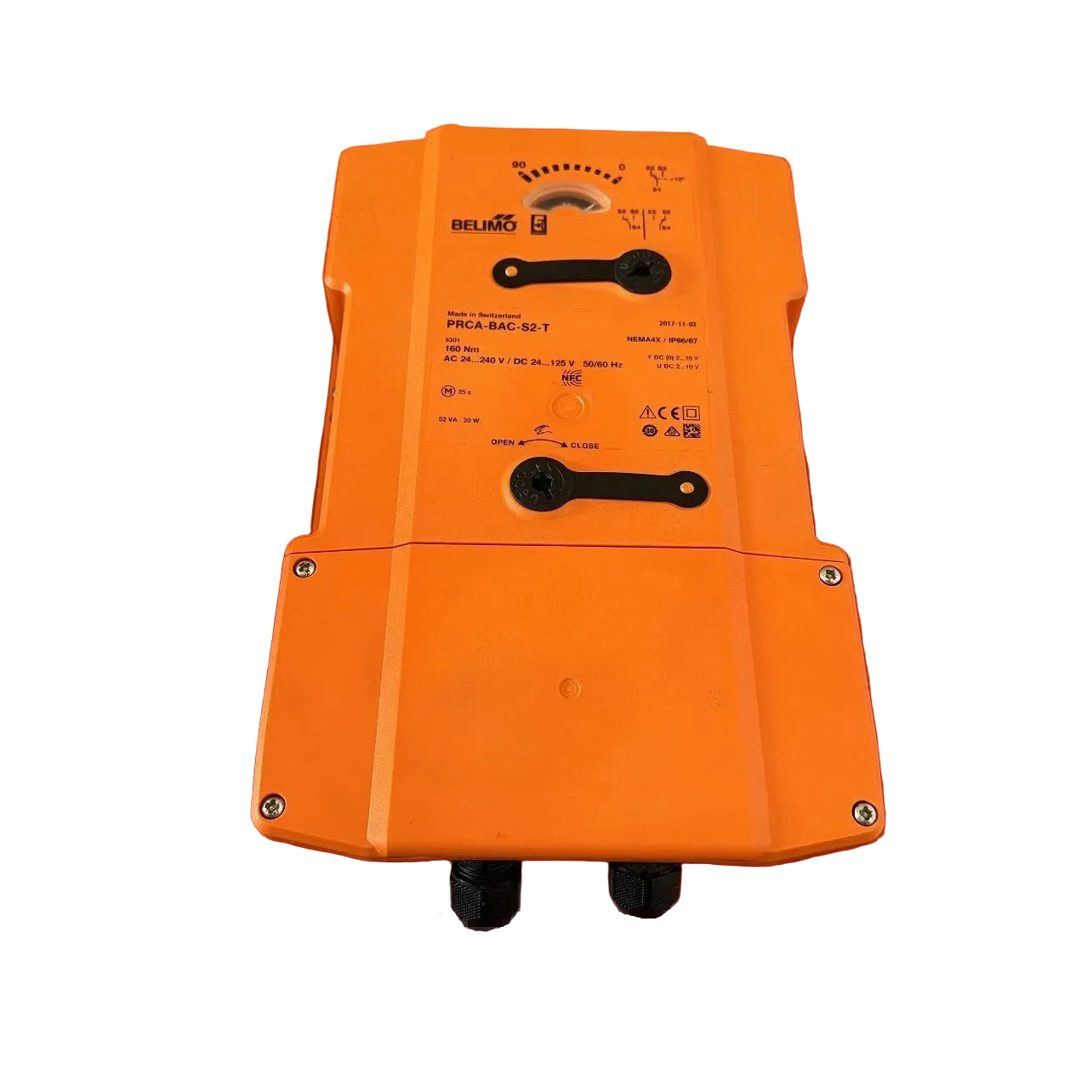

PRCA-BAC-S2-T | Belimo Communicating Rotary Actuator 160 Nm With BACnet And Modbus
- Regular price
- $1,799.00
- Sale price
- $1,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PRCA-BAC-S2-T
Description
The Belimo PRCA-BAC-S2-T is a high-torque rotary actuator delivering 160 Nm for precise control of large dampers and valves. It supports a wide AC/DC voltage range and multiple communication protocols, including BACnet MS/TP, Modbus RTU, and MP-Bus, enabling advanced integration with building automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Valve Actuators |
| Part Number | PRCA-BAC-S2-T |
| Subcategory | Rotary Actuators |
| Actuator Type | Communicating rotary actuator |
| Nominal Torque | 160 Nm |
| Nominal Voltage | AC 24…240 V / DC 24…125 V |
| Nominal Frequency | 50/60 Hz |
| Voltage Range | AC 19.2…264 V / DC 19.2…137.5 V |
| Power Consumption (Running) | 20 W |
| Power Consumption (Rest) | 6 W |
| Control Signals | 2…10 V, 0.5…10 V, 4…20 mA |
| Communication Protocols | BACnet MS/TP, Modbus RTU, MP-Bus |
| Auxiliary Switches | 2 × SPDT |
| Angle of Rotation | 90° |
| Running Time | 35 s / 90° (adjustable 30…120 s) |
| Position Accuracy | ±5% |
| Degree of Protection | IP66/67 |
| Ambient Temperature | -22…122°F (-30…50°C) |
| Weight | 5.8 kg |
Information About PRCA-BAC-S2-T
The PRCA-BAC-S2-T is part of Belimo’s advanced communicating actuator range designed for precise and reliable control in complex HVAC and industrial automation systems. It features a robust motor capable of delivering 160 Nm of torque and supports direct digital communication via BACnet MS/TP, Modbus RTU, and MP-Bus for seamless integration. The actuator operates across a broad AC/DC voltage range and includes dual auxiliary switches for position signaling and system interlocking. Built with a rugged IP66/67 enclosure, it is suited for demanding environments while remaining maintenance-free throughout its service life.
Key Features
- High Torque Output: Delivers 160 Nm of motor torque, supporting reliable operation of large dampers and valves.
- Multi-Protocol Communication: Integrated BACnet MS/TP, Modbus RTU, and MP-Bus enable flexible connection to building automation systems.
- Wide Voltage Compatibility: Supports AC 24–240 V and DC 24–125 V power supplies for versatile installation scenarios.
- Adjustable Actuation Speed: Running time configurable from 30 to 120 seconds per 90° rotation to match system requirements.
- Integrated Auxiliary Switches: Two SPDT switches provide configurable position feedback and control interlocking.
- Rugged Environmental Protection: IP66/67 enclosure rating ensures resistance to dust, moisture, and harsh operating conditions.

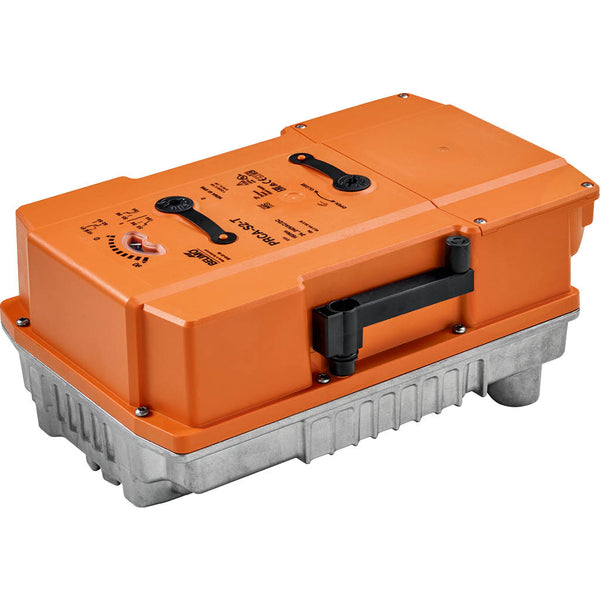

- Manual Override Capability: Built-in hand crank allows manual positioning during commissioning or power loss.
The PRCA-BAC-S2-T delivers the reliability and precision required for high-torque, networked actuator control in commercial and industrial automation systems.
