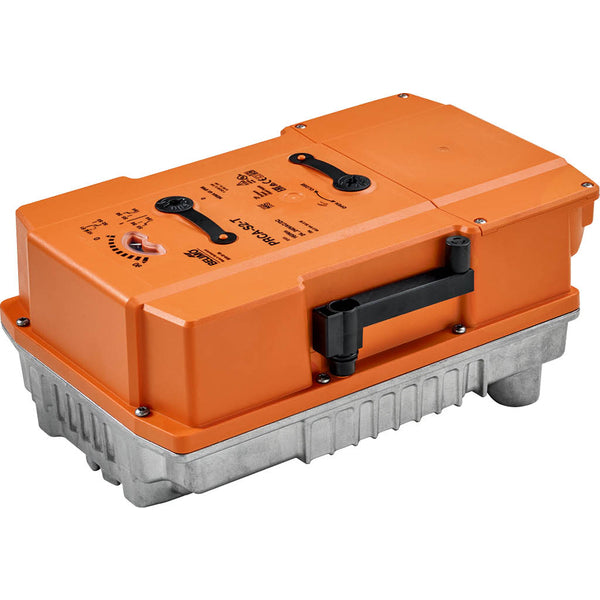

PRCA-S2-T | Belimo 160Nm Rotary Valve Actuator With Wide Voltage Power
- Regular price
- $1,696.00
- Sale price
- $1,696.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PRCA-S2-T
Description
The Belimo PRCA-S2-T is a high-torque rotary valve actuator delivering 160 Nm for reliable operation of large dampers and valves. It operates across a wide AC/DC voltage range and is designed for robust performance in demanding HVAC and industrial control environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Valve Actuators |
| Part Number | PRCA-S2-T |
| Subcategory | Rotary Actuators |
| Actuator Type | Non-spring rotary actuator |
| Nominal Torque | 160 Nm |
| Nominal Voltage | AC 24…240 V / DC 24…125 V |
| Nominal Frequency | 50/60 Hz |
| Voltage Range | AC 19.2…264 V / DC 19.2…137.5 V |
| Power Consumption (Running) | 20 W |
| Power Consumption (Rest) | 6 W |
| Auxiliary Switches | 2 × SPDT |
| Angle of Rotation | 90° |
| Running Time | 35 s / 90° (adjustable 30…120 s) |
| Manual Override | Hand lever |
| Sound Power Level | 68 dB(A) |
| Degree of Protection | IP66/67 |
| Enclosure Rating | NEMA 4X |
| Ambient Temperature | -22…122°F (-30…50°C) |
| Weight | 5.8 kg |
Information About PRCA-S2-T
The PRCA-S2-T is part of Belimo’s heavy-duty rotary actuator range developed for applications requiring high torque and dependable positioning. It delivers 160 Nm of motor torque and supports parallel operation, making it suitable for synchronized control of large mechanical assemblies. The actuator is powered by a broad AC/DC voltage range and includes integrated auxiliary switches for position signaling and system interlocking. Its sealed IP66/67 and NEMA 4X enclosure ensures maintenance-free operation in harsh mechanical, industrial, and outdoor environments.
Key Features
- High Torque Rotary Output: Provides 160 Nm of motor torque for reliable actuation of large dampers and valves under load.
- Wide AC And DC Voltage Support: Accepts AC 24–240 V and DC 24–125 V, allowing flexible integration into varied electrical systems.
- Adjustable Actuation Speed: Motor runtime configurable from 30 to 120 seconds per 90° rotation to match application requirements.
- Integrated Auxiliary Switching: Two SPDT auxiliary switches enable precise position indication and control interlocking.
- Robust Environmental Protection: IP66/67 and NEMA 4X enclosure ratings protect against dust, moisture, and harsh conditions.
- Manual Override Functionality: Hand lever allows direct mechanical operation during commissioning or power interruptions.
- Maintenance-Free Design: Engineered for long-term operation without routine servicing in demanding control environments.
The PRCA-S2-T delivers the reliability and precision required for high-torque rotary actuation in commercial and industrial control systems.
