Pro-face 3280024-13 AGP3600-T1-AF 12.1-Inch HMI Touch Panel
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3280024-13
Description

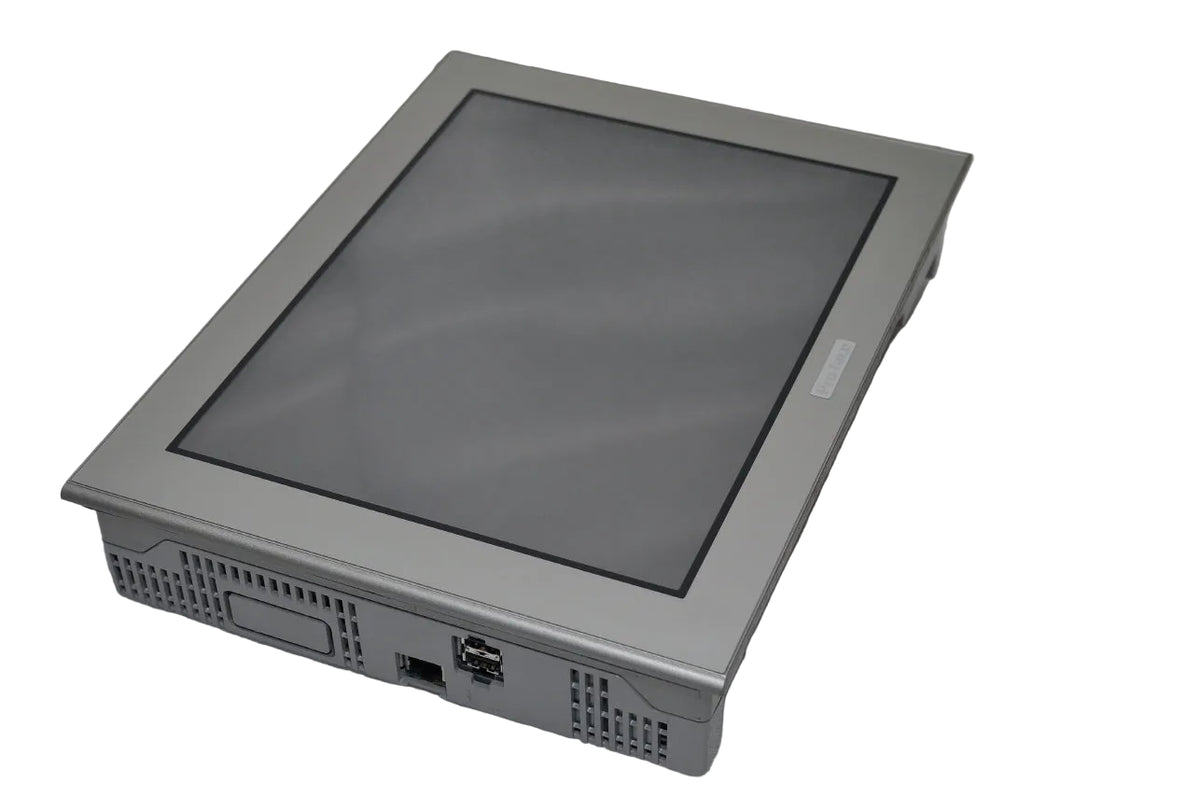

The Pro-face 3280024-13 is the registration part number associated with the AGP3600-T1-AF programmable operator interface from the GP3000 series. This industrial HMI panel provides a 12.1-inch color touchscreen for monitoring machine status, displaying process data, and controlling connected automation equipment. Its AC power supply, Ethernet connectivity, and serial communication interfaces support integration with compatible PLCs and industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pro-face |
| Category | Industrial Automation |
| Part Number | 3280024-13 |
| Subcategory | HMI Touchscreen Operator Panel |
| Product Model | AGP3600-T1-AF |
| Display Size | 12.1 inches |
| Display Type | TFT Color LCD |
| Display Resolution | 800 × 600 pixels (SVGA) |
| Touchscreen Type | Analog Resistive Film |
| Power Supply | 100–240 V AC |
| Rated Input Voltage | 85–265 V AC |
| Rated Frequency | 50/60 Hz |
| Serial Interface COM1 | RS-232C / RS-422 / RS-485 |
| Serial Interface COM2 | RS-422 / RS-485 |
| Ethernet Interface | 10BASE-T / 100BASE-TX, RJ45 |
| USB Interface | 2 × USB 1.1 Type-A Host |
| Internal Flash Memory | 8 MB or 16 MB, depending on revision |
| Operating Temperature | 0°C to +50°C |
| Dimensions (W × H × D) | 313 × 239 × 56 mm |
| Panel Cutout | 301.5 × 227.5 mm |
| Weight | 3.0 kg |
Information About 3280024-13

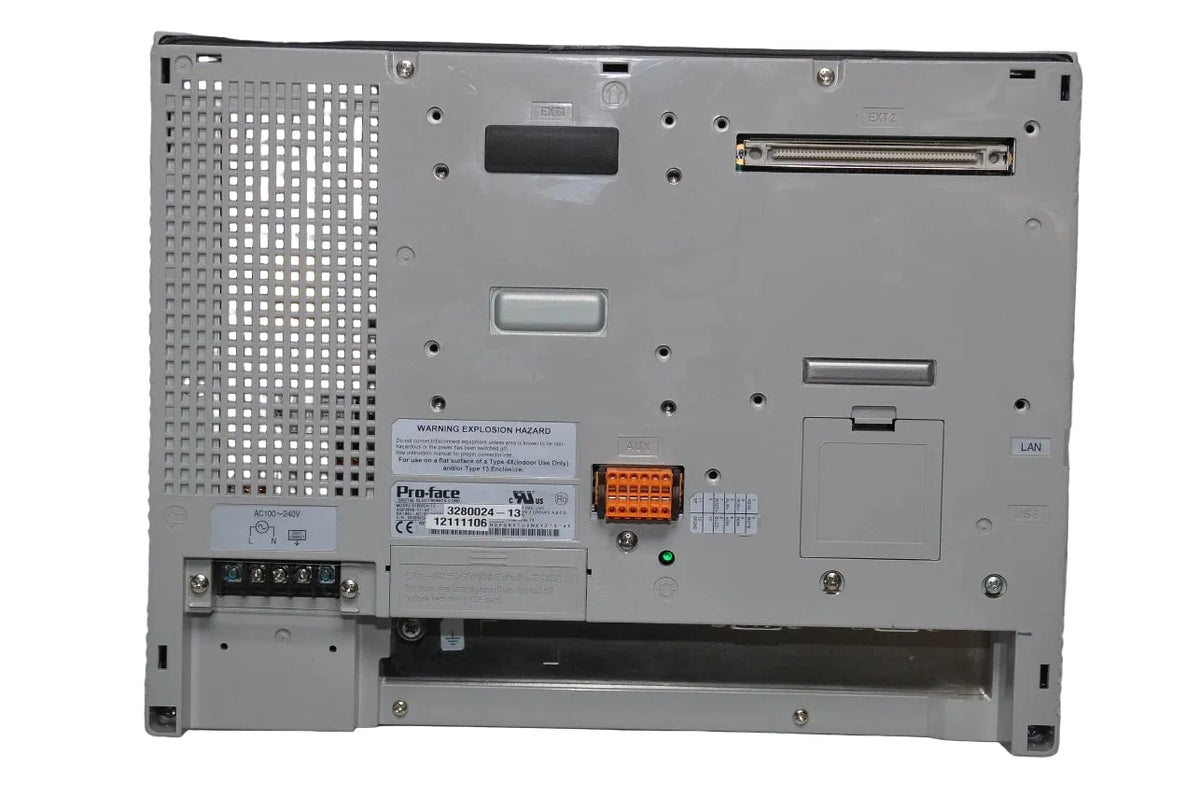

The AGP3600-T1-AF is a Pro-face GP3000-series operator interface designed for industrial machine control and visualization. It features a TFT color LCD with an SVGA resolution of 800 × 600 pixels and an analog resistive touch panel. The unit supports serial communication through RS-232C, RS-422, or RS-485 on COM1 and RS-422/RS-485 on COM2, along with 10/100 Mbps Ethernet connectivity. Its panel-mount design and front-panel protection rating make it suitable for installation in industrial control enclosures.
Key Features:
-
12.1-Inch Color Display: Provides a large touchscreen interface for displaying machine information and process data.
-
SVGA Resolution: Supports a native display resolution of 800 × 600 pixels.
-
Analog Resistive Touchscreen: Enables operators to interact with control screens and application menus.
-
AC Power Supply: Operates from a 100–240 V AC input supply.
-
Ethernet Connectivity: Provides 10BASE-T/100BASE-TX communication through an RJ45 connector.
-
Flexible Serial Communication: Supports RS-232C, RS-422, and RS-485 communication on COM1, plus RS-422/RS-485 on COM2.
-
USB Host Ports: Includes two USB 1.1 Type-A host interfaces for compatible peripherals.
-
Industrial Panel Mounting: Installs into a control cabinet panel with a front surface rated equivalent to IP65f when correctly installed.
The 3280024-13 provides touchscreen operation, machine visualization, and flexible PLC communications for industrial automation applications.
