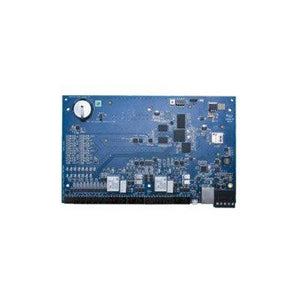

PRO42IC | Honeywell PRO4200 Intelligent Access Controller
- Regular price
- $1,349.00
- Sale price
- $1,349.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PRO42IC
Description
The Honeywell PRO42IC is an intelligent controller within the PRO4200 Professional Series access control platform designed for high-density installations. It provides control and I/O support for up to two doors while managing downstream reader and I/O modules via RS485 communication. The PRO42IC enables real-time access decisions with local database storage and secure encrypted communications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Access Control |
| Part Number | PRO42IC |
| Subcategory | Intelligent Access Controller |
| Series | PRO4200 Professional Series |
| Door Capacity | Up to 2 doors |
| Card Capacity | Up to 100,000 cards |
| Transaction Buffer | 50,000+ events |
| Communication Port | RS485 |
| Maximum Bus Length | 4,000 ft (1,250 m) per port |
| Supported Readers | OSDP (bi-directional encrypted), Wiegand |
| Network Security | TLS 1.2/1.1, AES-256/128, 802.1X |
| Operating Modes | Locked, Unlocked, Secure Access, Card Only, Card & PIN, Card or PIN |
| Integration Platform | WIN-PAK® Security Suite |
| Mounting Options | Rack or tile mount (PRO22ENC enclosures) |
| Power Supply Support | 120 VAC (via enclosure power supply) |
| Operating Speed (RS485) | 38.4 Kbps |
| Weight | 1.20 lbs |
Information About PRO42IC
The PRO42IC is part of the Honeywell PRO4200 professional series of modular access control modules used in enterprise security systems. It interfaces with PRO42R1 and PRO42R2 reader modules and supports OSDP or Wiegand reader technologies for flexible deployment. The controller communicates with up to 16 downstream modules per RS485 port, supporting a total bus length of 4,000 ft (1,250 m). Designed for integration with the WIN-PAK® security management suite, the PRO42IC supports advanced features such as elevator control, video integration, mobile credentials, and large transaction buffering exceeding 50,000 events.
Key Features:
- Two-Door Intelligent Controller: Provides I/O support for up to 2 doors.
- RS485 Communication: Supports up to 16 downstream modules per port with 4,000 ft bus length.
- OSDP & Wiegand Support: Compatible with encrypted OSDP and legacy Wiegand readers.
- Large Transaction Buffer: Stores over 50,000 events locally.
- High Card Capacity: Supports up to 100,000 cardholders.
- Programmable I/O: Customizable alarm inputs and relay outputs.
- Offline Operating Modes: Reader modes configurable as secured, locked, or unlocked during communication loss.
- Enhanced Cybersecurity: Supports TLS 1.2/1.1, AES-256/128 encryption, and 802.1X port-based access control.
- Modular Expansion: Compatible with PRO42IN and PRO42OUT modules for extended input/output control.
The PRO42IC delivers the reliability and precision required for enterprise-grade access control and security management systems.
