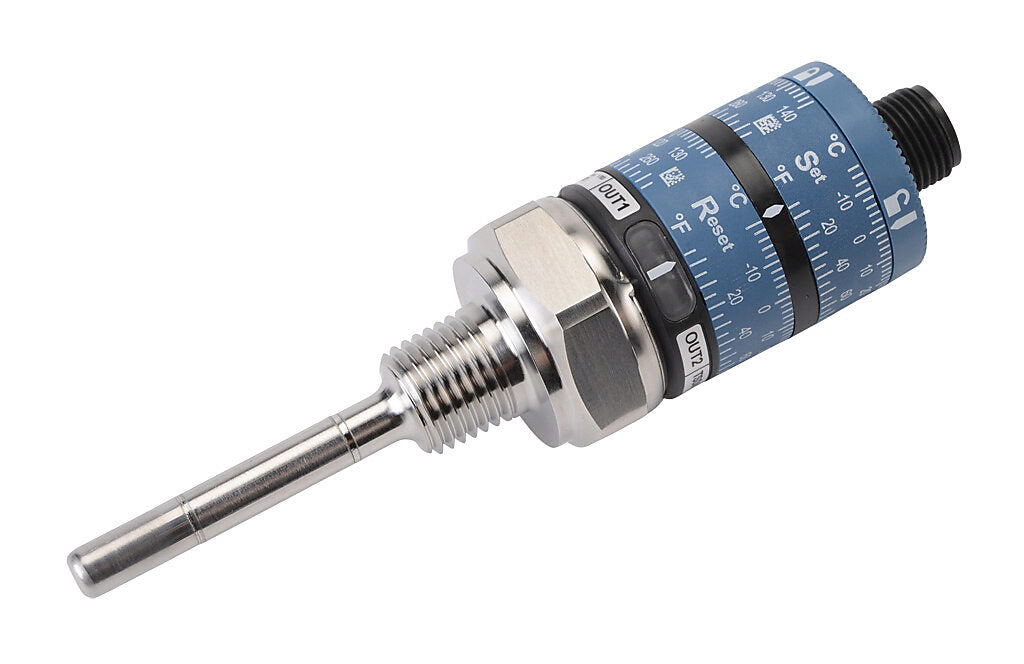

TSDA25N-0P-0284-H | ProSense Pt1000 RTD Temperature Switch 1/4 in NPT PNP
- Regular price
- $277.00
- Sale price
- $277.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TSDA25N-0P-0284-H
Description
The ProSense TSDA25N-0P-0284-H is a temperature sensor/switch with an integral Pt1000 RTD element designed for precise thermal monitoring and switching control. It features a 50 mm insertion length, 6 mm probe diameter, and a 1/4 in male NPT process connection for secure installation in process systems. With a PNP switch output and complementary N.O./N.C. channels, it provides reliable temperature-based control in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ProSense |
| Category | Sensors & Switches |
| Part Number | TSDA25N-0P-0284-H |
| Subcategory | Temperature Switch |
| Sensor Element | Pt1000 RTD |
| Sensor Type | M12 probe |
| Accuracy | Class A |
| Insertion Length | 50 mm |
| Probe Diameter | 6 mm |
| Sheath Material | 316L stainless steel |
| Process Connection | 1/4 in male NPT |
| Temperature Sensing Range | -4 to 284 °F |
| Setpoint Range | 3 to 284 °F |
| Number of Output Channels | 2 |
| Output Type | Switch PNP, N.O./N.C. complementary |
| Operating Voltage | 9.6–32 VDC |
| Electrical Connection | 4-pin M12 quick-disconnect |
| IP Rating | IP67 |
| Additional Information | Cable purchased separately |
| Weight | 1.00 lbs |
Information About TSDA25N-0P-0284-H
The TSDA25N-0P-0284-H is a ProSense temperature switch built with a Class A accuracy Pt1000 RTD sensing element for stable and repeatable measurement. Its 316L stainless steel sheath supports use in liquids, oils, water, chemicals, gases, and air across a temperature range of -4 to 284 °F. The unit incorporates dual output channels with complementary PNP switching (N.O./N.C.) for flexible control integration. Designed with a 4-pin M12 quick-disconnect and IP67 protection rating, it operates on 9.6–32 VDC and is suitable for industrial automation environments where reliable temperature switching is required.
Key Features:
-
Pt1000 RTD Sensing Element: Provides accurate and stable temperature measurement with Class A accuracy.
-
Integrated Temperature Switch: Combines sensing and switching in one compact M12 probe design.
-
Dual PNP Outputs: Offers complementary N.O./N.C. switching for flexible control configurations.
-
Wide Temperature Range: Operates from -4 to 284 °F with adjustable setpoints from 3 to 284 °F.
-
316L Stainless Steel Sheath: Ensures corrosion resistance in demanding process media.
-
1/4 in Male NPT Connection: Enables secure threaded installation in tanks, pipes, and manifolds.
-
IP67 Protection Rating: Suitable for washdown and harsh industrial environments.
-
9.6–32 VDC Operation: Compatible with standard industrial DC power systems.
The TSDA25N-0P-0284-H delivers the reliability and precision required for industrial temperature monitoring and switching control applications.
