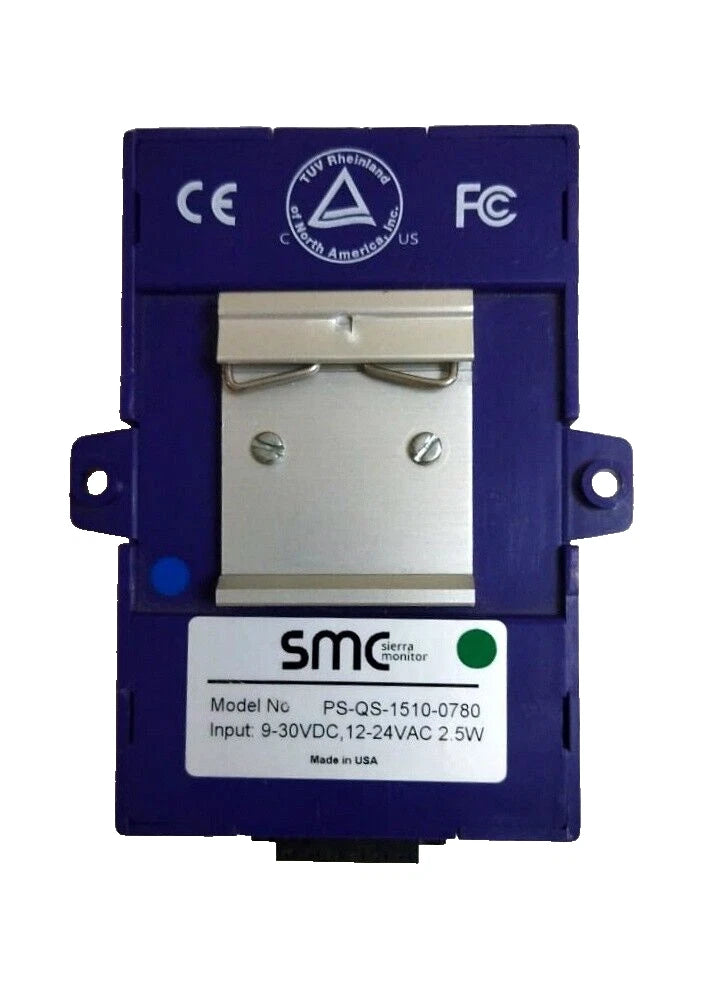

ProSoft Technology PS-QS-1510-0780 500-Point Serial Ethernet QuickServer Gateway
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PS-QS-1510-0780
Description
The ProSoft Technology PS-QS-1510-0780 is a Serial Ethernet QuickServer gateway designed to connect EtherNet/IP industrial control networks with BACnet building automation systems. It supports up to 500 application data points and provides simultaneous EtherNet/IP, BACnet/IP, and BACnet MS/TP communication for control-system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ProSoft Technology |
| Category | HMI / MMI / OIT |
| Part Number | PS-QS-1510-0780 |
| Subcategory | Operator Interface |
| Product Type | Serial Ethernet QuickServer Gateway |
| Application Data Capacity | 500 points |
| Supported Protocols | EtherNet/IP, BACnet/IP, BACnet MS/TP |
| Ethernet Interface | 10/100 RJ45 |

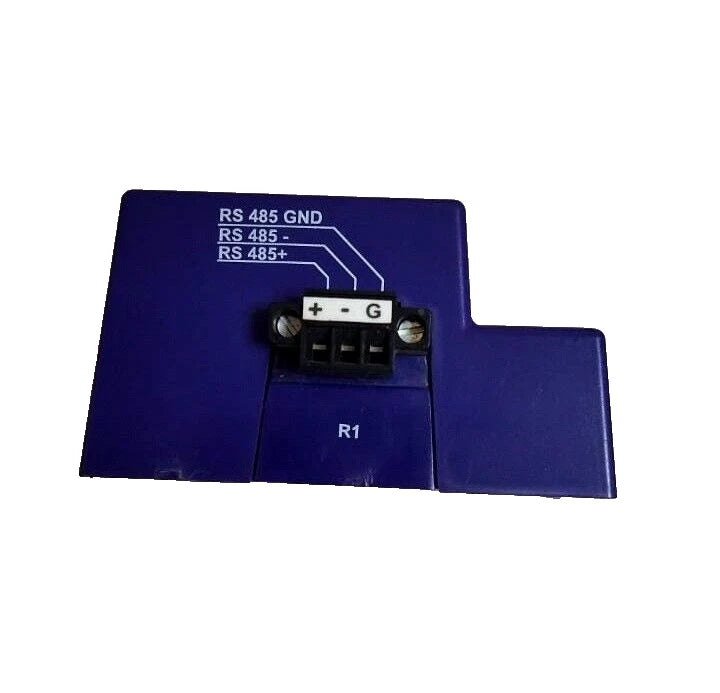

| Serial Interfaces | Two RS-485 terminals |
| Serial Communication Speed | Up to 115 kilobaud |

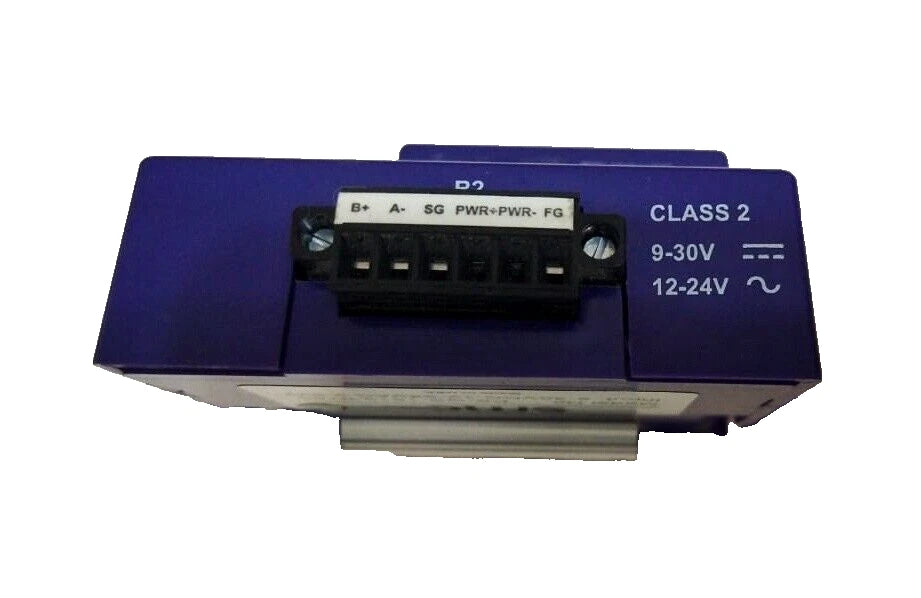

| Input Voltage | 9 to 30 volts direct current or alternating current; 5 volts direct current supported |
| Current Draw | 240 milliamperes at 12 volts |
| Operating Temperature | -40 to 167 degrees Fahrenheit (-40 to 75 degrees Celsius) |
| Relative Humidity | 5% to 90%, non-condensing |
| Mounting | Table, wall, or DIN rail |
| Dimensions | 4.5 × 3.2 × 1.6 inches (11.5 × 8.3 × 4.1 centimeters) |
| Product Status | Discontinued by manufacturer |
| Weight | 0.40 lbs |
Information About PS-QS-1510-0780
The PS-QS-1510-0780 is a 500-point communication gateway from the ProSoft Technology QuickServer family for connecting industrial and building automation networks. Its compact construction incorporates a 10/100 Ethernet RJ45 interface and two RS-485 serial terminals supporting communication rates up to 115 kilobaud. The unit simultaneously supports EtherNet/IP, BACnet/IP, and BACnet MS/TP, allowing different combinations of these protocols to exchange application data through a single gateway. It can be installed on a table, wall, or DIN rail and provides configuration and diagnostic utilities for commissioning and maintaining connected automation systems.
Key Features:
- 500-Point Capacity: Supports up to 500 application data points for exchanging information between connected automation networks.
- Multi-Protocol Operation: Simultaneously supports EtherNet/IP, BACnet/IP, and BACnet MS/TP communication.
- Ethernet Connectivity: Includes a 10/100 RJ45 Ethernet interface for connection to Ethernet-based control and building networks.
- Dual Serial Connections: Provides two RS-485 serial terminals supporting communication speeds up to 115 kilobaud.
- Bidirectional Data Transfer: Enables information exchange between industrial control devices and BACnet building automation equipment.
- Flexible Input Power: Accepts 9 to 30 volts direct current or alternating current, with support for a 5-volt direct current supply according to the manufacturer datasheet.
- Wide Temperature Range: Designed for operation from -40 to 167 degrees Fahrenheit (-40 to 75 degrees Celsius).
- Flexible Mounting: Supports table, wall, or DIN rail mounting for integration into different control-system installations.
The PS-QS-1510-0780 delivers the reliability and precision required for protocol conversion and data exchange between industrial control and BACnet building automation networks.
