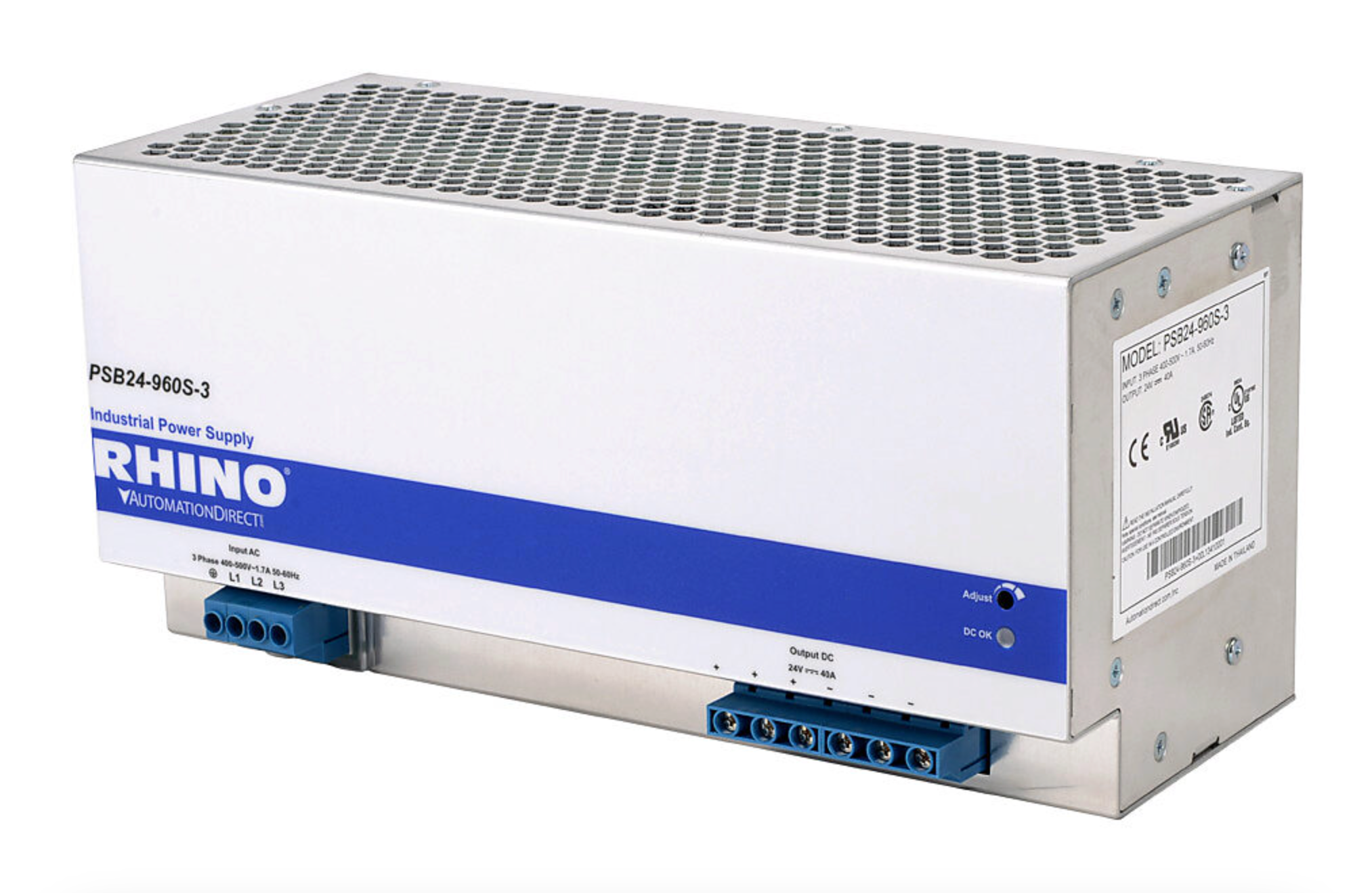

PSB24-960S-3 | Automation Direct RHINO SELECT 24VDC 960W 3-Phase Power Supply
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PSB24-960S-3
Description
The Automation Direct PSB24-960S-3 is a RHINO SELECT PSB series three-phase switching power supply designed to deliver high-capacity 24 VDC output for industrial control systems. It provides up to 40A (960W) with adjustable output voltage from 24 to 28 VDC. Engineered for demanding environments, this DIN rail-mounted unit operates from a wide 320–600 VAC input range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Power Supplies |
| Part Number | PSB24-960S-3 |
| Subcategory | DIN Rail Power Supplies |
| Series | RHINO SELECT PSB |
| Power Supply Type | Switching |
| Input Voltage Range | 320–600 VAC |
| Number of Input Phases | 3 |
| Output Configuration | Single output |
| Rated Output | 24 VDC @ 40A (960W) |
| Output Voltage Range | 24–28 VDC adjustable |
| Efficiency | 92% @ 3x400 VAC and 500 VAC |
| Protection Features | Overvoltage, short circuit, overload |
| Voltage Monitoring | Yes |
| Remote On/Off | No |
| Integrated UPS Battery Control | No |
| Mounting | 35 mm DIN rail |
| Enclosure Type | Enclosed |
| Housing Material | Aluminum |
| IP Rating | IP20 |
| Connector Type | Screw terminals |
| Operating Temperature | -25 to 80°C |
| NEC Class 2 | No |
| Weight | Approx. 3.5 lb |
Information About PSB24-960S-3
The PSB24-960S-3 is part of the RHINO SELECT PSB series of industrial switching power supplies built for reliable three-phase applications. It automatically adapts to input voltages between 320 and 600 VAC, eliminating manual selection requirements. The unit delivers a single 24 VDC output with high efficiency rated at 92% under 3x400 VAC and 500 VAC input conditions. Designed with an enclosed aluminum housing and IP20 protection, it mounts on a 35 mm DIN rail and incorporates integrated protection against overload, overvoltage, and short circuit conditions.
Key Features:
- High Output Capacity: Provides 24 VDC at 40A with 960W total output power.
- Wide 3-Phase Input Range: Accepts 320–600 VAC with automatic voltage selection.
- Adjustable Output Voltage: Output adjustable between 24–28 VDC for application flexibility.
- High Efficiency Design: Achieves up to 92% efficiency under rated input conditions.
- Integrated Protection Circuits: Includes overvoltage, short circuit, and overload protection.
- Voltage Monitoring: Built-in monitoring function for output status verification.
- Industrial DIN Rail Mounting: Designed for 35 mm DIN rail installation in control panels.
- Rugged Aluminum Enclosure: Enclosed IP20-rated housing for industrial environments.
The PSB24-960S-3 delivers the reliability and precision required for high-power industrial DC supply and control panel applications.
