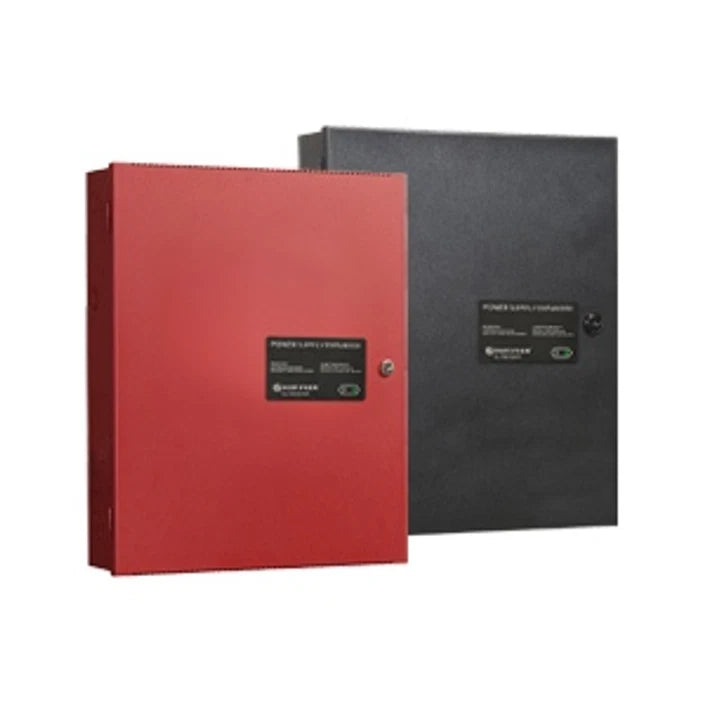

PSE-6E | Notifier 6A 24V Remote Charger Power Supply with 240VAC Input
- Regular price
- $801.00
- Sale price
- $801.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: PSE-6E
Description
The Notifier PSE-6E is a 6-amp, 24VDC remote charger power supply designed for use in fire alarm and life safety systems. Operating at 240 VAC and housed in a lockable metal enclosure, it provides regulated power output, battery charging, and supervision for auxiliary and notification circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Power Supplies |
| Part Number | PSE-6E |
| Subcategory | Remote Charger Power Supply |
| Product Type | 24VDC regulated power supply and battery charger |
| Input Voltage | 240 VAC, 50/60 Hz, 6.0A max |
| Total Output Current | 6.0A continuous (regulated) |
| Output Circuits | TB8–TB9: 1A regulated/3A special; TB10–TB12: 0.3A regulated/3A special |
| Output Voltage | 24VDC filtered and regulated |
| Auxiliary Power | 24VDC for notification and auxiliary devices |
| Trigger Input Voltage | 9–32VDC |
| Trigger Input Current | 2.0mA (16–32VDC); 1.0mA (9–16VDC) |
| Trouble Contact Rating | 4A @ 24VDC |
| Battery Charging Voltage | 27.6VDC float |
| Battery Charge Current | 1.5A max |
| Internal Battery Capacity | Up to two 18AH batteries |
| External Battery Capacity | Up to 33AH (using external cabinet) |
| Battery Type | Lead-acid, sealed |
| Cabinet Type | Lockable metal enclosure |
| Dimensions | 20.0" H × 14.5" W × 3.5" D (50.8 × 36.83 × 8.9 cm) |
| Weight | 24 lbs (with 7AH batteries), 39 lbs (with 18AH batteries) |
| Operating Temperature | 32°F–120°F (0°C–49°C) |
| Humidity | 10%–93% RH (non-condensing) |
| Application | Remote power and battery charging for fire alarm systems |
| Compliance | UL listed (where applicable) |
Information About PSE-6E
The PSE-6E is part of Notifier’s PSE Series of fire alarm power supplies, engineered to expand system power capacity or serve as a standalone regulated supply. It provides 6.0 amps of total output current across multiple filtered and regulated circuits, supporting both continuous and special-application loads. Equipped with a supervised charging circuit, it maintains lead-acid batteries up to 18 AH internally or up to 33 AH externally for extended standby capability. Designed for 240 VAC, 50/60 Hz operation, the PSE-6E features built-in trouble relays, programmable trigger inputs, and secure cabinet mounting—making it ideal for commercial, institutional, and industrial fire protection applications.
Key Features:
- High Output Capacity: Provides 6.0A total regulated 24VDC output for fire alarm devices.
- 240 VAC Input: Operates on 240 VAC, 50/60 Hz for global installations.
- Battery Charging: Float-charges lead-acid batteries up to 18 AH internal or 33 AH external.
- Regulated Output Circuits: Includes multiple 24VDC filtered and special-application outputs.
- Trigger Inputs: Accepts 9–32VDC activation signals for supervised operation.
- Trouble Relay: Rated at 4A, 24VDC for reporting power or supervision faults.
- Lockable Enclosure: Provides secure installation in a durable metal cabinet.
- Versatile Applications: Supports notification, auxiliary, and system expansion circuits.
The PSE-6E delivers the reliability and precision required for remote power and battery charging in Notifier fire alarm systems.
