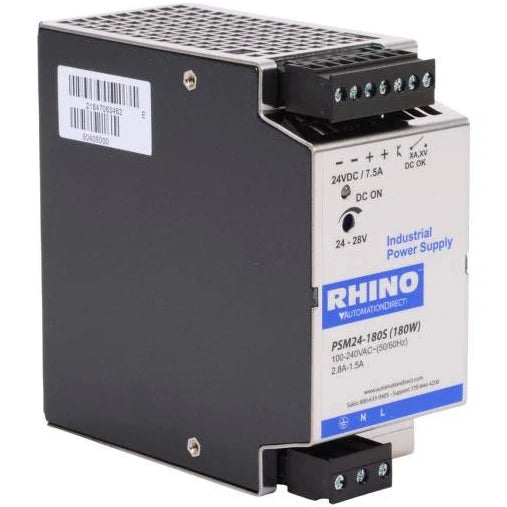

Product Description P/N: PSM24-180S
Description
The Automation Direct PSM24-180S is a slim-line switching power supply designed to deliver 24 VDC at 7.5 A for reliable industrial power distribution. Its compact metal housing and DIN-rail mounting make it suitable for space-limited control panels and automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Industrial Power Supplies |
| Part Number | PSM24-180S |
| Subcategory | Power Supply |
| Series | PSM |
| Power Supply Type | Switching |
| Efficiency | 87% at 115 VAC, 88% at 230 VAC |
| Output Configuration | Single output |
| Output | 24 VDC 7.5 A / 180 W (adjustable) |
| Output Voltage Range | 24–28 VDC |
| Input Voltage Range | 85–132 VAC / 187–264 VAC |
| Input Phases | 1 phase |
| Protection Types | Overvoltage, short circuit, over-temperature |
| Remote On/Off | Yes |
| Voltage Monitoring | Yes |
| Enclosure Type | Enclosed metal housing |
| IP Rating | IP20 |
| Mounting | 35 mm DIN rail |
| Connector Type | Removable screw terminal |
| NEC Class 2 | No |
| Integrated UPS Control | No |
| Operating Temperature | –25 to 70 °C |
| Weight | 1.7 lbs |
Information About PSM24-180S
The PSM24-180S is part of Automation Direct’s PSM series of industrial power supplies designed for efficient, stable and compact power delivery. It offers a 180 W single-output configuration with an adjustable 24–28 VDC range, operating from universal AC inputs of 85–132 VAC or 187–264 VAC to support global installations. The slim-line enclosed metal housing, removable screw terminals and 35 mm DIN-rail mount provide simplified integration into control cabinets while maintaining strong mechanical durability. With built-in protections for overvoltage, short circuit and over-temperature events, plus features such as remote on/off control and voltage monitoring, the PSM24-180S ensures dependable operation across demanding industrial environments.
Key Features:
- 180 W Output Capacity: Provides 24 VDC at 7.5 A for powering automation equipment, sensors and control circuits.
- Adjustable Output Range: Supports fine tuning between 24 and 28 VDC to match application-specific voltage requirements.
- High Efficiency Performance: Achieves 87% efficiency at 115 VAC input and 88% at 230 VAC to reduce energy loss and heat generation.
- Universal AC Input Range: Operates from 85–132 VAC or 187–264 VAC, enabling installation in diverse electrical systems.
- Integrated Protection Functions: Includes overvoltage, short circuit and over-temperature protection for stable and safe operation.
- DIN-Rail Mounting: Uses a 35 mm DIN-rail interface for fast installation in industrial control panels.
- Metal Enclosed Housing: Offers strong mechanical protection and effective heat dissipation in compact applications.
- Removable Screw Terminals: Allows quick wiring changes and simplified maintenance within tight panel spaces.
The PSM24-180S delivers the reliability and precision required for stable DC power distribution in industrial automation systems.
