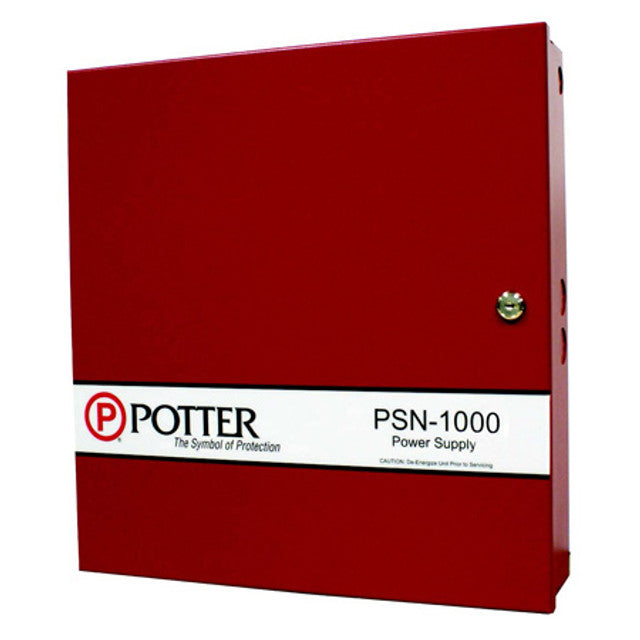

PSN-1000 | Potter Intelligent 10-Amp Notification Power Expander with P-Link Repeater
- Regular price
- $849.00
- Sale price
- $849.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PSN-1000
Description
The Potter PSN-1000 is a UL-listed intelligent 10-amp notification power supply and P-Link repeater designed for seamless integration with Potter fire alarm control panels. It provides six Class B or three Class A regulated NAC outputs, supports Quadrasync strobe synchronization, and charges batteries up to 55 Ah.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Alarm Systems |
| Part Number | PSN-1000 |
| Subcategory | Intelligent Power Supply / NAC Expander |
| Output Capacity | 10 A total, 3 A max per circuit |
| Output Circuits | 6 Class B or 3 Class A NACs |
| Input Voltage | 120/220 VAC, 50–60 Hz |
| Output Voltage | 24 VDC regulated |
| Synchronization | Quadrasync (Amseco, Gentex, Cooper Wheelock, System Sensor) |
| Control & Monitoring | Supervised via P-Link bus (RS-485) |
| P-Link Repeater | Extends communication 6,500 ft, Class A or B wiring |
| Dry Contact Inputs | 2 programmable, Class B supervised |
| Programming | Outputs configurable for NAC sync, constant/resettable power, sounder base, door holder, releasing circuits, Code 3, or City Tie |
| Battery Charger | Supports 7–55 Ah, cabinet holds 18 Ah batteries |
| Cabinet | 18-gauge cold rolled steel, red powder coat, with Potter key lock |
| Expansion Version | PSN-1000E includes additional cabinet space for modules (e.g., PAD100-SLCE) |
| Maximum Per Panel | Up to 31 PSN-1000 units per control panel |
| Weight | 12 lbs |
Information About PSN-1000
The PSN-1000 is a Potter intelligent notification power supply engineered to expand NAC capacity while repeating P-Link communications across large fire alarm systems. Operating on either 120 or 220 VAC, it delivers 10 amps of regulated 24 VDC power distributed over six Class B or three Class A outputs. Each circuit supports up to 3 amps and can be independently configured for notification appliances, door holders, sounder bases, releasing circuits, or auxiliary power. With full system supervision via the P-Link bus, built-in battery charging for up to 55 Ah, and system-wide Quadrasync synchronization, the PSN-1000 ensures reliable performance for complex installations.
Key Features:
- Intelligent Power Supply: Provides 10 amps of regulated 24 VDC power monitored through the main control panel.
- Multiple NAC Outputs: Six Class B or three Class A circuits, each rated at 3 amps, for flexible distribution.
- Integrated P-Link Repeater: Extends RS-485 communication up to 6,500 feet with Class A or Class B wiring.
- Programmable Circuits: Configurable for NAC sync, auxiliary power, releasing circuits, ANSI Code 3, or City Tie.
- Quadrasync Technology: Synchronizes strobes across multiple brands including Gentex, Amseco, Wheelock, and System Sensor.
- Dry Contact Inputs: Two Class B supervised inputs expand system triggering and monitoring options.
- Strong Battery Support: Integral charger supports batteries up to 55 Ah, with cabinet space for two 18 Ah units.
- Expansion Option: PSN-1000E model includes extra cabinet room for loop expanders and modules.
- Secure Cabinet: Red powder-coated 18-gauge steel housing with key lock and multiple conduit knockouts.
- Scalable Deployment: Supports up to 31 units per control panel for extensive system expansion.
The PSN-1000 delivers the reliability and precision required for powering notification appliances, extending P-Link communication, and managing auxiliary functions in large-scale fire alarm systems.
