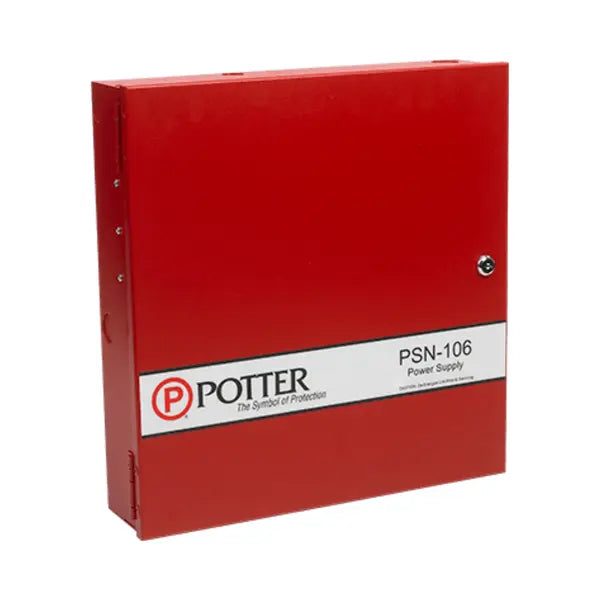

PSN-106 | Potter 10-Amp Conventional Power Supply with 6 NAC Outputs
- Regular price
- $420.00
- Sale price
- $420.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PSN-106
Description
The Potter PSN-106 is a 10-amp conventional notification power supply with six independently programmable outputs. Each circuit is rated at 3 amps and can operate continuously, supporting Class A or Class B wiring, synchronized NACs, and battery charging up to 55 Ah.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Alarm Systems |
| Part Number | PSN-106 |
| Subcategory | Conventional Power Supply |
| Output Capacity | 10 A regulated total |
| Output Circuits | 6 outputs, 3 A max each |
| Wiring Options | Up to 3 Class A (Style Z) or 6 Class B |
| Input Power | 120/240 VAC, 50–60 Hz |
| Current Draw | 5.1 A at 120 VAC, 2.5 A at 240 VAC |
| Output Voltage | 24 VDC regulated |
| Standby Current | 60 mA |
| Alarm Current | 200 mA |
| Battery Charger | 27.3 VDC @ 1 A, supports 7–55 Ah batteries |
| Internal Battery Housing | Up to 18 Ah |
| Synchronization | Potter/AMSECO, Wheelock, Gentex, System Sensor (Quadrasync) |
| Modes | PassThru mode or synchronized NACs |
| Relays | 2 trouble relays (General System Trouble, Low AC Trouble) |
| LED Indicators | NAC active/trouble, Earth Fault, AC, Battery Fault |
| Cabinet | 18-gauge cold rolled steel with red powder coat and key lock |
| Dimensions | 16-1/8 in W × 16-3/4 in H × 3-1/2 in D |
| Weight | 16 lbs |
Information About PSN-106
The AFC-1000 is a Potter analog addressable fire alarm control panel built for high-capacity installations, with support for up to 1,270 devices on a single system. It offers six NAC outputs and four programmable I/O circuits, all regulated and configurable for steady signal, synchronization, constant power, releasing, or door holder power. The system incorporates Quadrasync technology, allowing multiple strobe brands to flash in sync across different outputs. With built-in IP communication, Ethernet connectivity, and optional DACT, the AFC-1000 delivers extensive networking and reporting functions, while its 4,000-event buffer and NFPA 72 smoke sensitivity test support compliance and detailed monitoring.
Key Features:
- Large System Capacity: Supports 1,270 addressable devices with expansion through multi-point SLC modules.
- High Output Power: Includes a 10 A regulated power supply expandable up to 315 A for large installations.
- Multiple NACs and I/Os: Provides six NACs rated at 3 A each and four I/O circuits rated at 1 A each, fully programmable.
- Quadrasync Strobe Control: Synchronizes strobes from Gentex, System Sensor, AMSECO, and Wheelock simultaneously across outputs.
- Event Tracking: 4,000-event history buffer ensures comprehensive system monitoring and troubleshooting.
- Built-in Communication: Features integrated IP communicator and Ethernet connectivity with optional two-line DACT.
- Flexible Programming: 1,500 software zones for detailed system configuration and management.
- Compliance Ready: Meets NFPA 72 standards with built-in smoke sensitivity testing.
- Rugged Construction: Housed in a steel enclosure with locked Lexan window for durability and security.
- Environmental Resilience: Operates from 32° to 120°F with up to 93% humidity non-condensing.
The AFC-1000 delivers the reliability and precision required for managing large and complex fire alarm systems in commercial, institutional, and industrial facilities.
