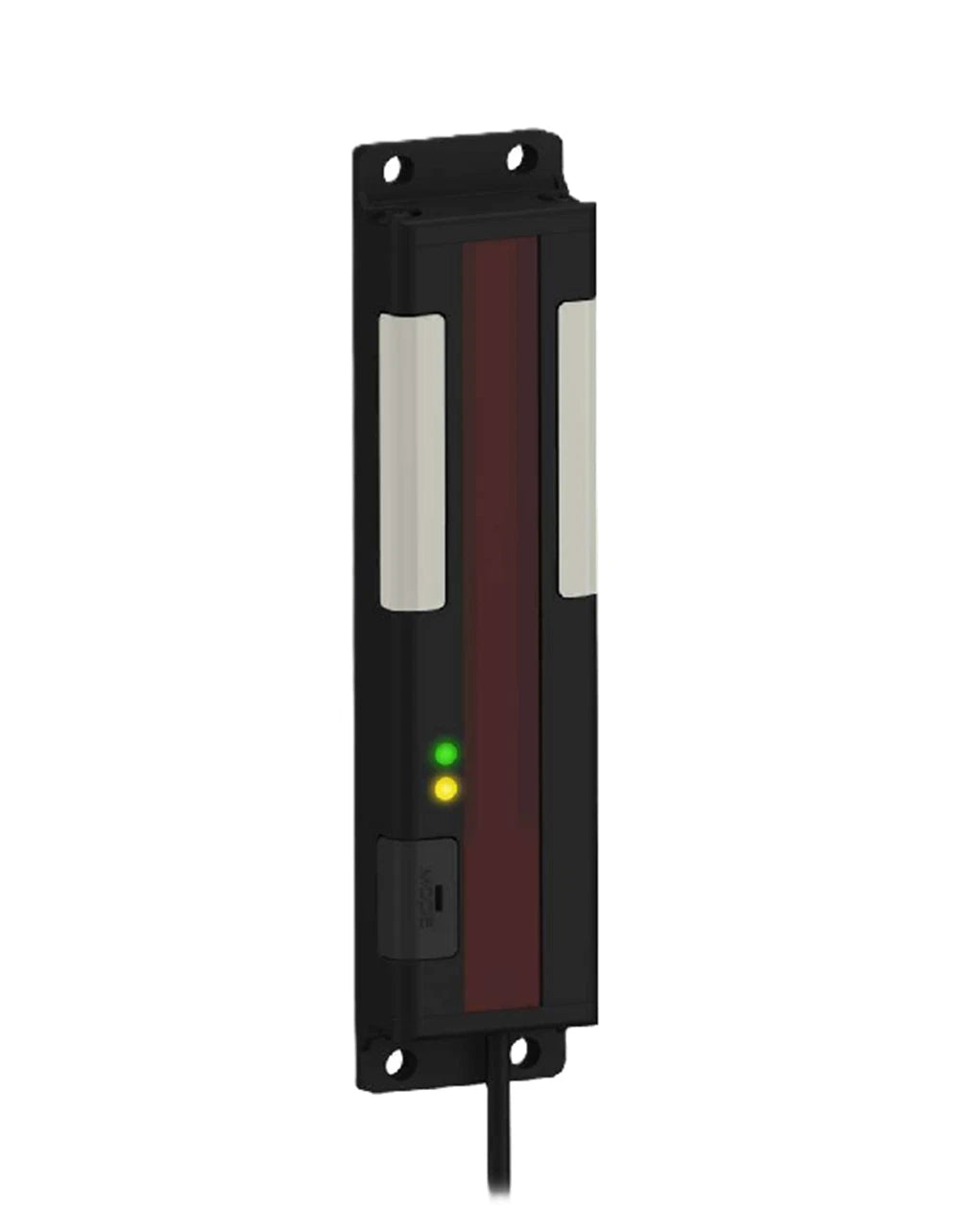

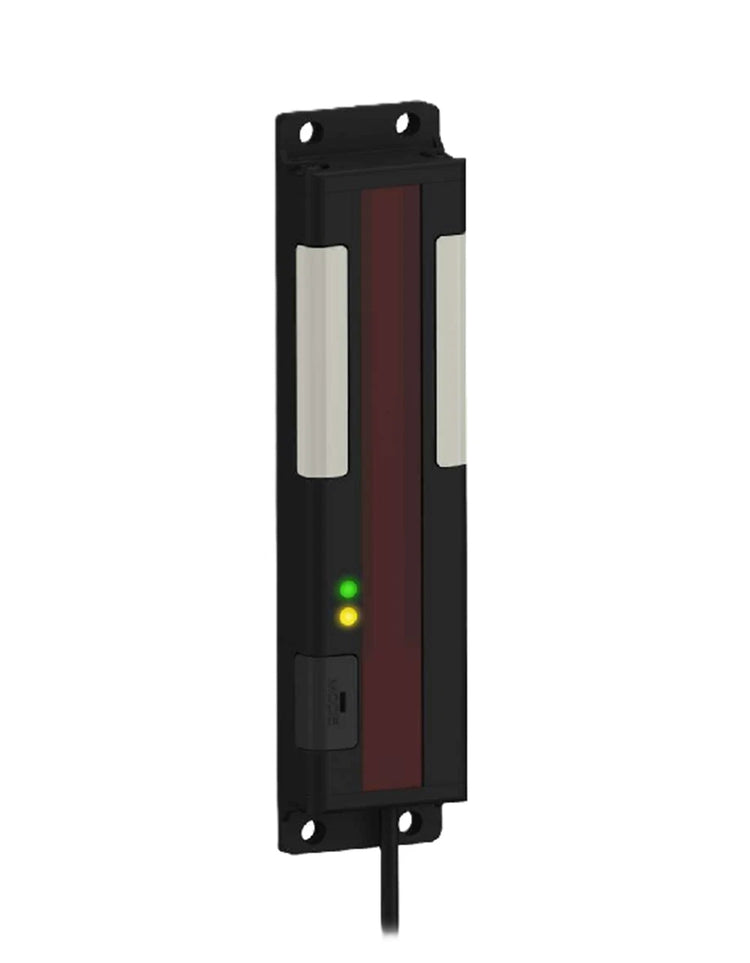

PVA100P6Q | Banner Engineering PVA Series Part Verification Array 100 mm 2 m
- Regular price
- $825.00
- Sale price
- $825.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PVA100P6Q
Description
The Banner Engineering PVA100P6Q is a compact part verification array designed for non-contact presence and part detection in automated assembly and inspection systems. It integrates an emitter and receiver in an opposed-beam configuration to provide reliable multi-beam verification over a 2-meter sensing distance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Automation |
| Part Number | PVA100P6Q |
| Subcategory | Part Verification Sensors |
| Sensor Type | Part Verification Array (Emitter/Receiver) |
| Series | PVA Series |
| Sensing Mode | Opposed |
| Sensing Range | 2 m (78.74 in) |
| Array Length | 100 mm |
| Number of Beams | 5 |
| Light Source | Green LED |
| Output Type | PNP |
| Output Configuration | NO / NC (Receiver) |
| Supply Voltage | 12–30 VDC |
| Response Time | 20 ms |
| Connection Type | Pigtail with Quick Disconnect |
| Connector Pins | 4-Pin |
| Housing Material | Aluminum |
| Ingress Protection | IP62 / NEMA 2 |
| Operating Temperature (Max) | 50 °C |
| Cable Length | 2 m |
| Weight | 1.1 lb |
Information About PVA100P6Q
The PVA100P6Q is part of Banner Engineering’s PVA Series, developed for reliable part presence and verification tasks in automated manufacturing environments. This sensor uses multiple opposed beams to verify part orientation, position, or presence more accurately than single-beam photoelectric sensors. Its compact aluminum housing supports installation in confined spaces while maintaining consistent beam alignment. Designed for integration into PLC-based control systems, the array offers stable PNP output and straightforward electrical connection via quick-disconnect cabling.
Key Features:
- Multi-Beam Part Verification: Five opposed beams provide reliable detection of part presence, orientation, or completeness in automation processes.
- 100 mm Array Length: Compact sensing area supports precise verification in small fixtures and assembly stations.
- 2 m Sensing Distance: Allows flexible emitter-to-receiver spacing while maintaining stable detection performance.
- PNP Output Configuration: Provides direct compatibility with common PLC and control system inputs.
- Non-Contact Operation: Enables detection without physical contact, reducing wear and mechanical complexity.
- Industrial Aluminum Housing: Rigid construction ensures long-term durability and alignment stability.
- Quick Disconnect Wiring: Simplifies installation, replacement, and maintenance in production environments.
The PVA100P6Q delivers the reliability and precision required for accurate part verification in automated assembly and inspection systems.
