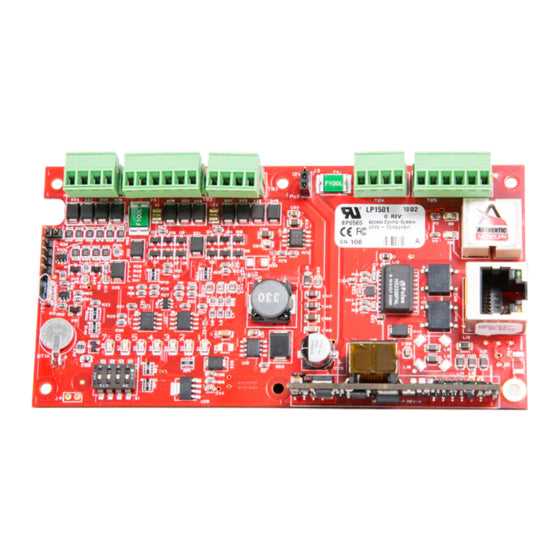

PW7K1ICE | Honeywell POE Single Door Controller
- Regular price
- $639.00
- Sale price
- $639.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PW7K1ICE
Description
The Honeywell PW7K1ICE is a compact and intelligent single-door controller designed for high-security access control applications. It supports one door with two reader interfaces that can be configured for entry and exit control, and it enables autonomous decision making with onboard event storage and communication capabilities.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Access Control
|
| Part Number | PW7K1ICE |
| Subcategory | Door Controllers |
| Power Input | PoE 12.95W (802.3af) / PoE+ 25W (802.3at) / 12 VDC at 1.25 A |
| Power Output | 12 VDC at 625 mA (reader + AUX) |
| Micro USB Output | 5 VDC (deducts 270 mA from AUX) |
| Inputs | 2 supervised inputs with EOL resistors (1k/2k ohm) + tamper input |
| Relays | 2 x Form-C, 2A at 30 VDC |
| Memory | Supports 2–8 GB micro SD/SDHC |
| Communication | Ethernet 10/100 Base-T; optional USB 2.0 adapter |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Humidity | <95%, non-condensing |
| Environmental Rating | IP-rated; Class 2 wiring compliant |
| Weight | 103g |
Information About PW7K1ICE
The PW7K1ICE is an advanced, PoE-powered controller engineered for flexible and reliable door access control in commercial and industrial environments. Equipped with onboard database storage and decision-making capability, the unit ensures secure operations even during network outages. Host communication is handled through a 10BaseT/100BaseTX Ethernet interface or optional micro USB port. It supports two supervised inputs and two form-C relay outputs, delivering versatile configuration options. Installation is simplified through support for both PoE and external 12VDC power options, and the compact housing and microSD card support enhance usability and event storage capacity.
Key Features:
- Power Options: Supports PoE (12.95W or 25W) or external 12VDC input for flexible installation.
- Reader Interface: Two reader ports for single-door entry/exit or paired reader configuration.
- Connectivity: Ethernet 10BaseT/100BaseTX, Micro USB 2.0 (USB2-OTGE100 compatible).
- Inputs: Two supervised inputs with EOL resistors and a dedicated tamper input.
- Relay Outputs: Two form-C contacts rated at 2A at 30VDC.
- Memory Expansion: Micro SD or SDHC slot (2–8 GB); rechargeable SRAM backup battery.
- USB Port Output: 5VDC max with 270mA deducted from AUX power if used.
- Micro USB Power: 5V DC with maximum load of 2.5W.
- Environmental Rating: Operates from 0°C to 40°C; Storage: -40°C to 60°C.
- Housing: Polycarbonate enclosure, IP-rated for indoor low-voltage use.
- Compliance: CE, CSA, UL 60950, RoHS Directive 2002/98/EEC.
The PW7K1ICE integrates power, processing, and communication in a compact module, making it ideal for both retrofit and new installations in enterprise-level access control systems.
