PW9130G3000R-XL2U | Eaton Uninterruptible Power Supply

Description

The Eaton PW9130G3000R-XL2U is a 3 kVA / 2.7 kW online double-conversion uninterruptible power supply (UPS) designed for critical IT and industrial applications.

Technical Specifications

Information About PW9130G3000R-XL2U

The Eaton PW9130G3000R-XL2U is a 3 kVA / 2.7 kW online double-conversion uninterruptible power supply (UPS) designed for critical IT and industrial applications. It offers high efficiency (>95%) in high-efficiency mode, a 0.9 power factor, and advanced battery management (ABM®) technology to extend battery life. This 2U rackmount UPS features hot-swappable batteries, optional extended battery modules for increased runtime, and a graphical LCD interface for easy monitoring. With multiple output receptacles, including NEMA L6-30R, L6-20R, and 6-20R, and robust communication options like USB, RS-232, and SNMP, it ensures reliable power protection and seamless integration into various environments.

Key Features:

• Power Capacity: 3000 VA / 2700 W
• Topology: Online double-conversion
• Input Voltage Range: 160–276 V AC
• Nominal Voltage: 208 V (configurable to 200/208/220/230/240 V)
• Input Connection: NEMA L6-20P

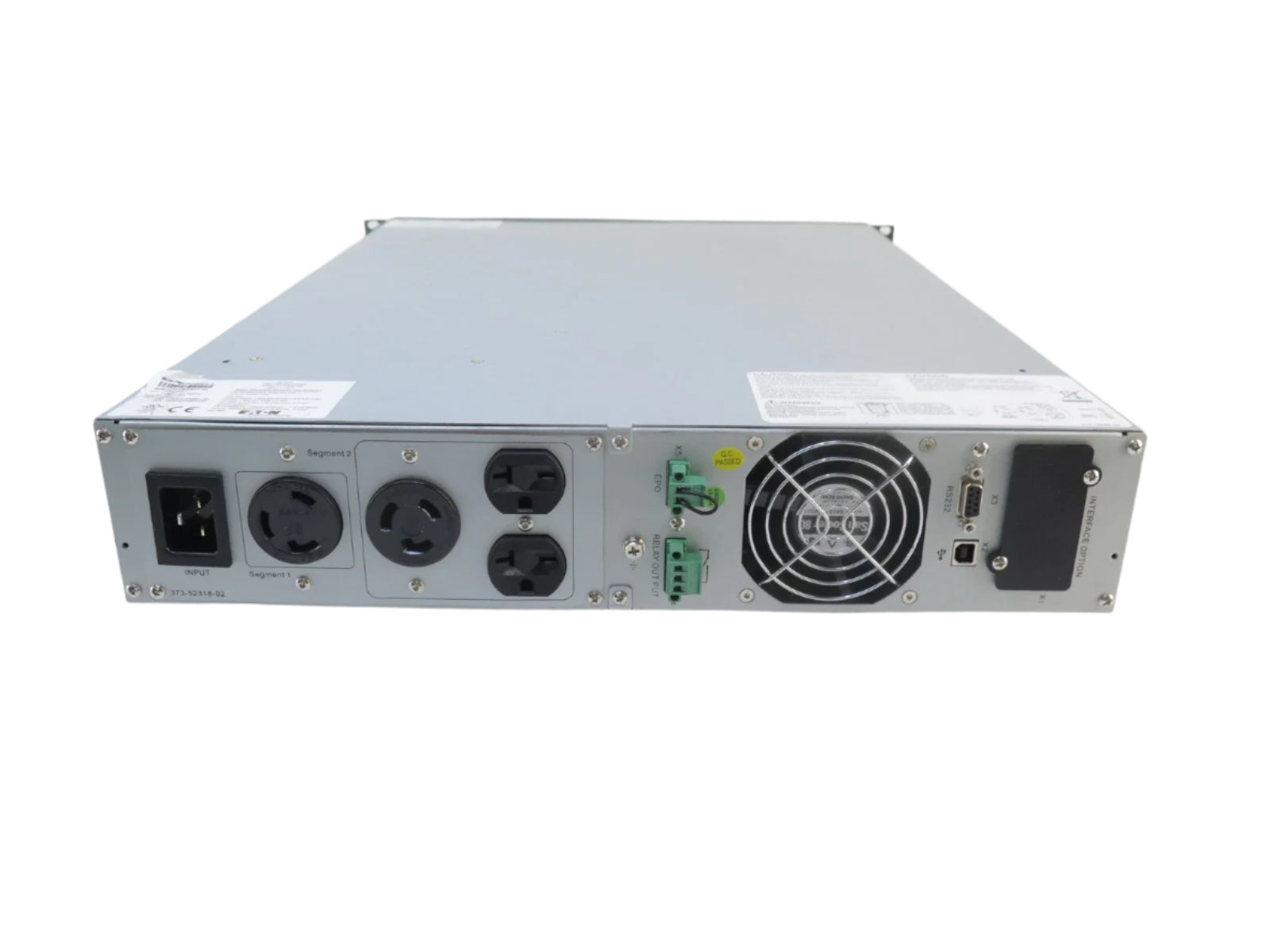

• Output Receptacles: 1 × NEMA L6-30R, 1 × NEMA L6-20R, 2 × NEMA 6-20R
• Efficiency: 95% in high-efficiency mode
• Power Factor: 0.9

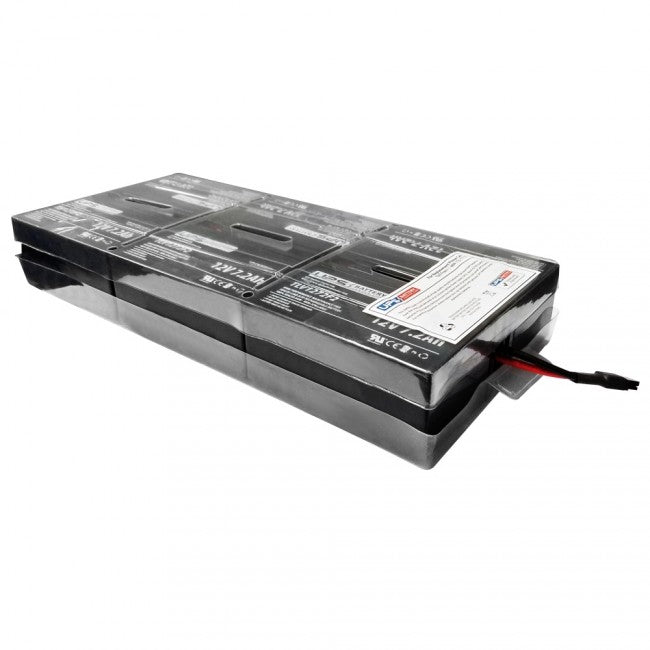

• Battery Type: Sealed, lead-acid; hot-swappable
• Runtime at Full Load: Approximately 3 minutes
• Extended Battery Capability: Supports up to 4 external battery modules (EBMs)

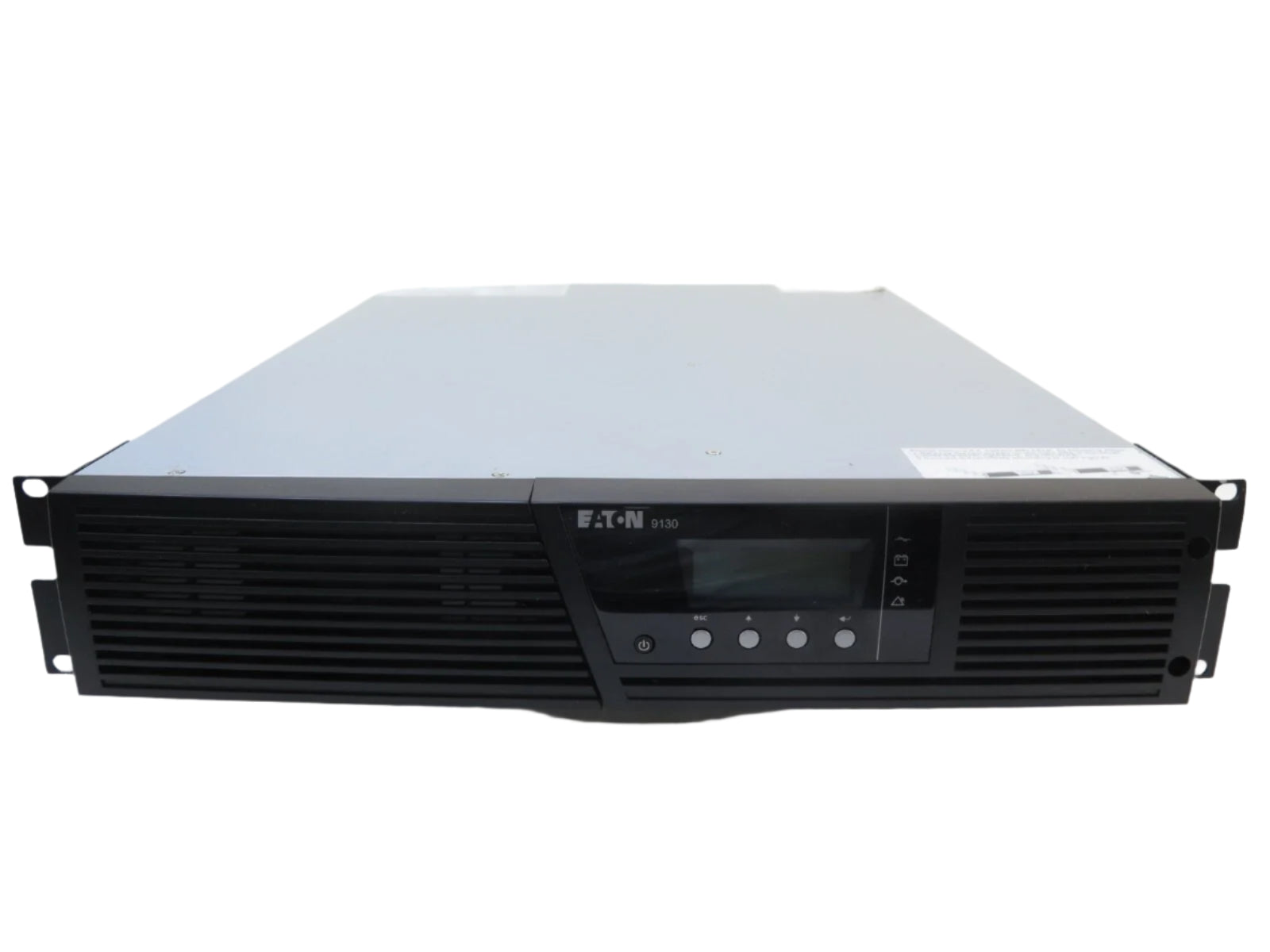

• User Interface: Graphical LCD display
• Communication Ports: USB, RS-232, and optional network card slot
• Dimensions: 3.4 in (H) × 17.2 in (W) × 23.6 in (D)
• Weight: Approximately 65 lbs
• Certifications: UL, cUL, FCC Class A, CE

The Eaton PW9130G3000R-XL2U UPS provides robust and efficient power protection, making it an ideal solution for safeguarding critical systems in demanding environments.
