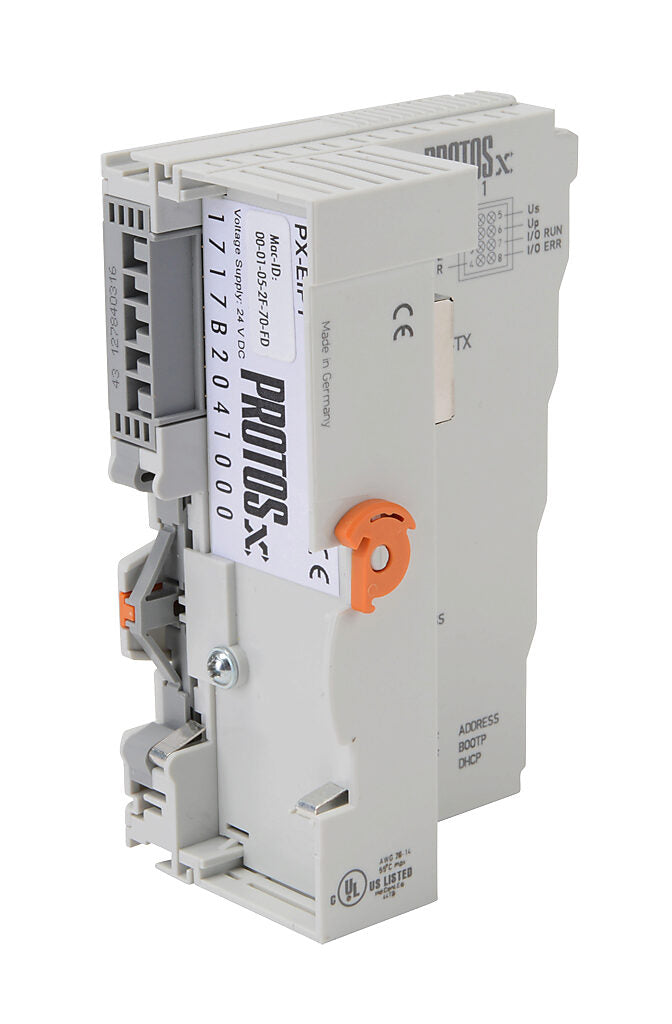

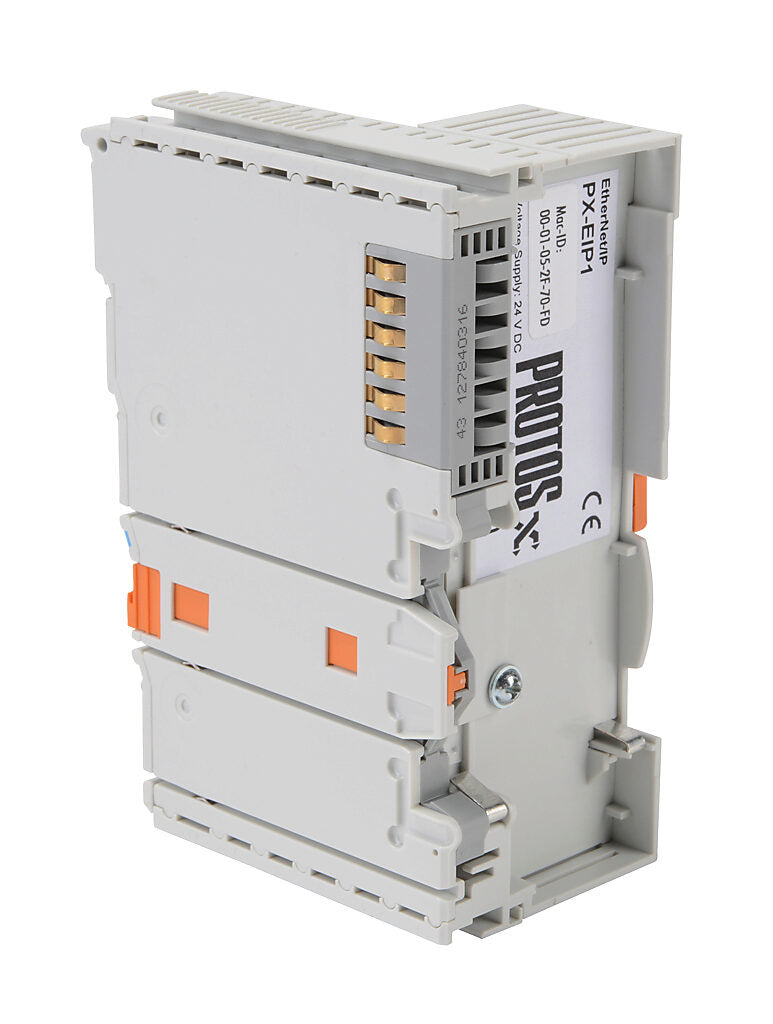

PX-EIP1 | Automation Direct Protos X EtherNet/IP Compact Bus Coupler
- Regular price
- $477.00
- Sale price
- $477.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PX-EIP1
Description
The Automation Direct PX-EIP1 is a Protos X compact bus coupler designed to interface distributed I/O assemblies with EtherNet/IP networks. It operates on 24 VDC and provides a single RJ45 Ethernet port supporting implicit messaging adapter communication. This unit enables high-density remote I/O integration for industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Distributed I/O Systems |
| Part Number | PX-EIP1 |
| Subcategory | Bus Couplers |
| Series | Protos X |
| Item Type | Compact bus coupler |
| Voltage Rating | 24 VDC |
| Number of Ethernet Ports | 1 (RJ45) |
| Port Protocol | EtherNet/IP implicit messaging adapter |
| Port Speed | 10/100 Mbps |
| Bus Terminals Supported | 64 per assembly; up to 255 with expansion |
| Maximum Discrete I/O | 1020 inputs / 1020 outputs (with 255 terminals) |
| Maximum Analog I/O | 128 total |
| Maximum Data Capacity | 512 input bytes / 512 output bytes |
| Mounting Type | DIN rail |
| For Use With | Protos X I/O systems |
| Weight | 0.4 lb |
Information About PX-EIP1
The PX-EIP1 is part of the Protos X distributed I/O platform engineered for modular and scalable control architectures. It serves as an EtherNet/IP implicit messaging adapter, connecting Protos X bus terminals to PLC and industrial Ethernet networks. The coupler supports up to 64 bus terminals per assembly and up to 255 terminals with I/O bus expansion, depending on the system power budget. Designed for DIN rail installation, it delivers high data capacity with up to 512 input bytes and 512 output bytes for efficient process data exchange.
Key Features:
- EtherNet/IP Adapter: Supports implicit messaging for high-speed industrial Ethernet communication.
- 24 VDC Operation: Powered by standard industrial DC control voltage.
- High I/O Capacity: Supports up to 1020 discrete inputs and 1020 discrete outputs with full expansion.
- Analog Channel Support: Handles up to 128 total analog I/O points.
- Modular Expansion: Supports 64 bus terminals per assembly and up to 255 with expansion modules.
- 512-Byte Data Exchange: Provides up to 512 input bytes and 512 output bytes for process data.
- 10/100 Mbps Ethernet Port: Single RJ45 interface for network connectivity.
- Protos X Compatibility: Designed specifically for Protos X I/O systems.
The PX-EIP1 delivers the reliability and precision required for distributed I/O communication and EtherNet/IP-based automation systems.
