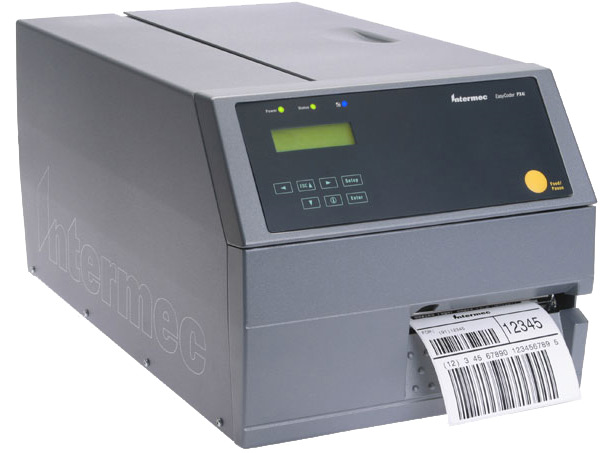

PX4C010000000020 | Honeywell EasyCoder PX4i Thermal Transfer Printer
- Regular price
- $2,414.00
- Sale price
- $2,414.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PX4C010000000020
Description
The PX4C010000000020 is a rugged, high-performance industrial printer from the Honeywell Intermec PX4i series, engineered for 24/7 operations in demanding environments. It offers 4-inch wide thermal printing at speeds up to 12 ips with resolution options up to 406 dpi, making it ideal for high-volume labeling and compliance tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Printers
|
| Part Number | PX4C010000000020 |
| Subcategory | Printer |
| Model Series | PX4i |
| Print Method | Direct Thermal & Thermal Transfer |
| Max Print Width | 112 mm (DT), 110 mm (TT) / 4.4 in / 4.3 in |
| Print Resolution | 203, 300, or 406 dpi (model-dependent) |
| Max Print Speed | Up to 300 mm/s (12 ips) at 203/300 dpi; 250 mm/s at 406 dpi |
| Media Width Range | 25.4 mm – 120 mm (1 – 4.72 in) |
| Media Thickness | 2.4 – 10 mil |
| Media Roll Max Diameter | 213 mm (8.38 in) |
| Media Roll Core Size | 38–76 mm (1.5 – 3 in) |
| Ribbon Roll Size | Max Ø 80 mm (~450 m), 1″ core, wax/mid/resin |
| Memory | 16 MB Flash, 32 MB SDRAM, CompactFlash slot, USB support |
| CPU | Embedded controller with smart printing support |
| Command Languages | IPL, Fingerprint, Direct Protocol, ZSim (ZPL), DSim (DPL) |
| Interfaces (Standard) | Ethernet 10/100 Mbps, RS-232, USB 2.0 host/device |
| Interfaces (Optional) | Wi-Fi (802.11 b/g), Parallel, GPIO, Dual Serial, RFID |
| Display / Control | Interactive numeric keypad and LCD display |
| Dimensions (L×H×W) | 482 × 238 × 275 mm (19.0 × 9.4 × 10.8 in) |
| Operating Temperature | +5 °C to +40 °C (41 °F to 104 °F) |
| Power Supply | 90–265 V AC, 45–65 Hz; standby 20 W, peak 400 W |
| Certifications | CE, FCC Class A, UL/cUL, C-Tick |
| Weight | 12.85 kg (28.4 lbs) |
Information About PX4C010000000020
The PX4C010000000020 is part of the PX4i industrial printer family, designed to deliver advanced connectivity, smart printing functionality, and robust durability. This model supports both direct thermal and thermal transfer printing and features a strong metal chassis for maximum reliability in manufacturing, logistics, and warehouse settings. With support for multiple printer command languages (IPL, Fingerprint, ZSim, DSim), smart printing capabilities, and secure wired and wireless connectivity, it easily integrates into any enterprise environment. The printer also includes QuickMount™ magnetic printhead replacement, an interactive keypad, and modular interface options for customization.
Key Features:
- High-Speed Output: Prints up to 12 inches per second without compromising quality.
- Multi-Resolution Support: Offers 203, 300, and 406 dpi printheads for different application needs.
- Smart Printing: Supports stand-alone applications with Honeywell Fingerprint language.
- All-in-One Language Compatibility: Native support for IPL, ZSim (ZPL), DSim (DPL), and Direct Protocol.
- Strong Industrial Build: Durable all-metal enclosure for 24/7 operations in tough environments.
- Modular Design: Facilitates easy integration into automated labeling systems.
- QuickMount™ Technology: Enables rapid, tool-free printhead replacement.
- Flexible Media Support: Handles labels and tags with widths from 25.4 to 120 mm.
- Advanced Connectivity: Standard Ethernet, USB, and RS-232; optional Wi-Fi, parallel, GPIO.
- Scalable Storage: Features USB host, CompactFlash slot, and support for external memory.
The PX4C010000000020 delivers enterprise-level reliability and flexibility for mission-critical labeling operations
