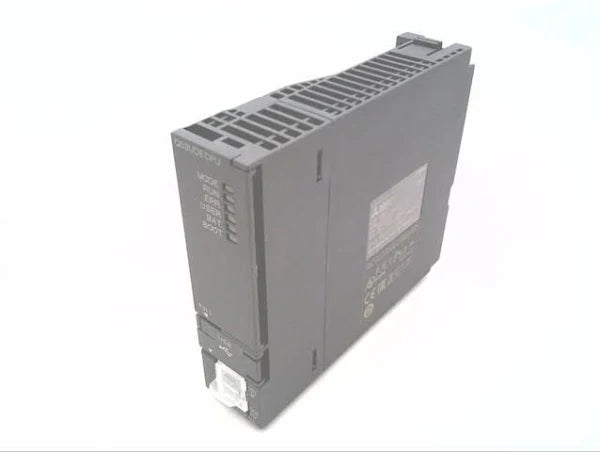

Q03UDECPU | Mitsubishi CPU Unit
- Regular price
- $619.00
- Sale price
- $619.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: Q03UDECPU
Description
Universal Programmable Logic Controller (PLC) CPU unit - Mitsubishi Electric (MELSEC-Q QnU series) - 30Ksteps / 120KBytes (Program) memory capacity - connection capacity 4096 x I/O points - with USB connector + RJ45 port (10/100Mbit Ethernet) - with Ethernet communication capability - Supply voltage 5Vdc (from dedicated Q-series P.S.U.) - Backplane / rack mounting
Technical Specifications
| Brand | Mitsubishi |
| Part Number | Q03UDECPU |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Main function | CPU unit |
| Product series / family name | Industrial automation > PLCs (Programmable Logic Controllers) > MELSEC-Q (QnU) series > Controllers (CPUs) |
| Sub-range name | MELSEC-Q QnU series |
| Functions | Universal Programmable Logic Controller (PLC) CPU unit I/O control system -- Refresh system Program execution type -- stored-program cyclic operation |
| Supply voltage (DC) | 5Vdc (from dedicated Q-series P.S.U.) |
| Programming languages | Ladder diagram (LD) / Relay symbol language Structured Text (ST) Logic symbolic language Function Block Diagram (FBD) MELSAP3 (SFC) MELSAP-L |
| Connection capacity | 4096 x I/O points |
| Connection type | USB connector RJ45 port (10/100Mbit Ethernet) |
| Communication protocol | Ethernet |
| Mounting mode | Backplane / rack |
| Ambient air temperature for operation | +32°F...+131°F / 0°C...+55 °C |
| Ambient air temperature for storage | -13°F...+167°F / -25°C...+75 °C |
| Processing time | 20ns / instruction (LD instruction) - 0.00002 ms 40ns / instruction (MOV instruction) - 0.000040 ms 28μs / instruction (PC MIX value) - 0.028 ms 120ns (Floating point addition) - 0.00012 ms |
| Storage type | SRAM card Flash card ATA card |
Information About Q03UDECPU
The Q03UDECPU is a CPU Unit manufactured by Mitsubishi Electric as part of their Universal Programmable Logic Controller (PLC) range, specifically within the MELSEC-Q QnU series. This unit offers a substantial memory capacity with 30K steps or 120KBytes for program storage, ensuring efficient handling of complex automation tasks.
With a connection capacity of 4096 x I/O points, the Q03UDECPU facilitates the integration and control of numerous input and output devices within industrial automation systems. Equipped with a USB connector and an RJ45 port supporting 10/100Mbit Ethernet, it provides versatile connectivity options for data exchange and programming.
The inclusion of Ethernet communication capability further enhances the networking capabilities of the PLC system, enabling seamless integration into modern industrial networks for enhanced data sharing and control. The unit operates on a supply voltage of 5Vdc, sourced from a dedicated Q-series power supply unit (PSU), ensuring stable and reliable performance.
Designed for easy integration into existing systems, the Q03UDECPU supports backplane or rack mounting configurations, facilitating flexible installation according to specific application requirements. With its advanced features and robust construction, the Mitsubishi Q03UDECPU CPU Unit serves as a dependable solution for demanding industrial automation tasks, offering scalability, connectivity, and high-performance capabilities.
Manufacturer information
Mitsubishi Electric Corporation, established in 1921, is a leading global manufacturer of electrical and electronic products. Renowned for innovation, it specializes in automation, energy, and electronic systems, contributing to advancements across various industries worldwide.
