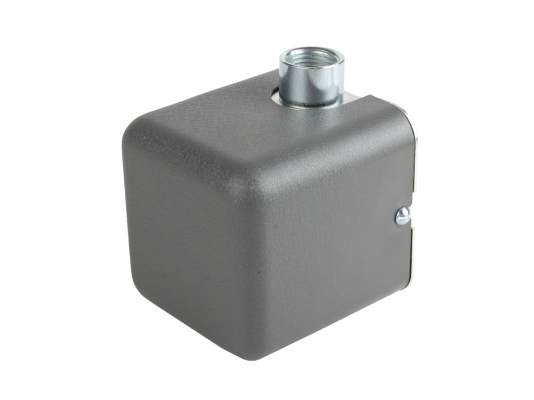

Q181A1007 | Honeywell Auxiliary Potentiometer for Series 90 Modutrol Motors
- Regular price
- $366.00
- Sale price
- $366.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: Q181A1007
Description
The Honeywell Q181A1007 is an auxiliary potentiometer designed to control one to four Series 90 Modutrol motors simultaneously. It ensures synchronized or sequenced operation when mounted on a master motor, offering precise control over motor positioning in HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Pilot Devices
|
| Part Number | Q181A1007 |
| Subcategory | Potentiometer |
| Model Series | Q181A Series |
| Throttle Range | 40° to 160° |
| Voltage Compatibility | 24 V |
| Motor Compatibility | Modutrol III & Modutrol IV (Series 90) |
| Mounting Method | Directly mounts on master Modutrol motor |
| Control Mechanism | Mechanical balance relay / Solid state drive |
| Control Capacity | 1 master motor controls up to 4 slave motors |
| Weight | 1.26 lbs |
Information About Q181A1007
The Q181A1007 is part of Honeywell's Q181A Series of auxiliary potentiometers, developed for direct use with 24V Modutrol III and Modutrol IV motors. Designed to mount on a master motor, this device allows it to command multiple controlled motors either in unison or in programmable sequence, depending on the mechanical setup. This allows for consistent damper or valve positioning across systems where multiple actuators are required to follow a single signal source.
Key Features:
- Modutrol Compatibility: Fully compatible with both Modutrol III and Modutrol IV Series 90 motors.
- Master/Slave Operation: Mounts directly on the master motor to drive up to four additional motors.
- Throttle Range: Provides 40–160 degree mechanical control span for precise motor synchronization.
- 24V System Integration: Optimized for 24-volt Modutrol motors for consistent low-voltage operation.
- Control Versatility: Works with systems using mechanical balance relays or solid-state motor drive circuits.
- Sequencing or Unison: Operates connected motors either simultaneously or with controlled offset.
- Compact Design: Durable build for direct installation on the motor without external housing.
- Honeywell Reliability: Manufactured to meet stringent industrial standards for HVAC motor control.
- Mechanical Synchronization: Ensures precise shaft alignment and stroke matching across devices.
- Retrofit Friendly: Ideal for both new installations and upgrades of existing Modutrol-based control systems.
The Q181A1007 potentiometer enables consistent and coordinated motor control across complex HVAC applications, enhancing both system reliability and energy efficiency.
Description
The Honeywell Q181A1007 is an auxiliary potentiometer designed to control one to four Series 90 Modutrol motors simultaneously. It ensures synchronized or sequenced operation when mounted on a master motor, offering precise control over motor positioning in HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Pilot Devices
|
| Part Number | Q181A1007 |
| Subcategory | Potentiometer |
| Model Series | Q181A Series |
| Throttle Range | 40° to 160° |
| Voltage Compatibility | 24 V |
| Motor Compatibility | Modutrol III & Modutrol IV (Series 90) |
| Mounting Method | Directly mounts on master Modutrol motor |
| Control Mechanism | Mechanical balance relay / Solid state drive |
| Control Capacity | 1 master motor controls up to 4 slave motors |
| Weight | 1.26 lbs |
Information About Q181A1007
The Q181A1007 is part of Honeywell's Q181A Series of auxiliary potentiometers, developed for direct use with 24V Modutrol III and Modutrol IV motors. Designed to mount on a master motor, this device allows it to command multiple controlled motors either in unison or in programmable sequence, depending on the mechanical setup. This allows for consistent damper or valve positioning across systems where multiple actuators are required to follow a single signal source.
Key Features:
- Modutrol Compatibility: Fully compatible with both Modutrol III and Modutrol IV Series 90 motors.
- Master/Slave Operation: Mounts directly on the master motor to drive up to four additional motors.
- Throttle Range: Provides 40–160 degree mechanical control span for precise motor synchronization.
- 24V System Integration: Optimized for 24-volt Modutrol motors for consistent low-voltage operation.
- Control Versatility: Works with systems using mechanical balance relays or solid-state motor drive circuits.
- Sequencing or Unison: Operates connected motors either simultaneously or with controlled offset.
- Compact Design: Durable build for direct installation on the motor without external housing.
- Honeywell Reliability: Manufactured to meet stringent industrial standards for HVAC motor control.
- Mechanical Synchronization: Ensures precise shaft alignment and stroke matching across devices.
- Retrofit Friendly: Ideal for both new installations and upgrades of existing Modutrol-based control systems.
The Q181A1007 potentiometer enables consistent and coordinated motor control across complex HVAC applications, enhancing both system reliability and energy efficiency.
