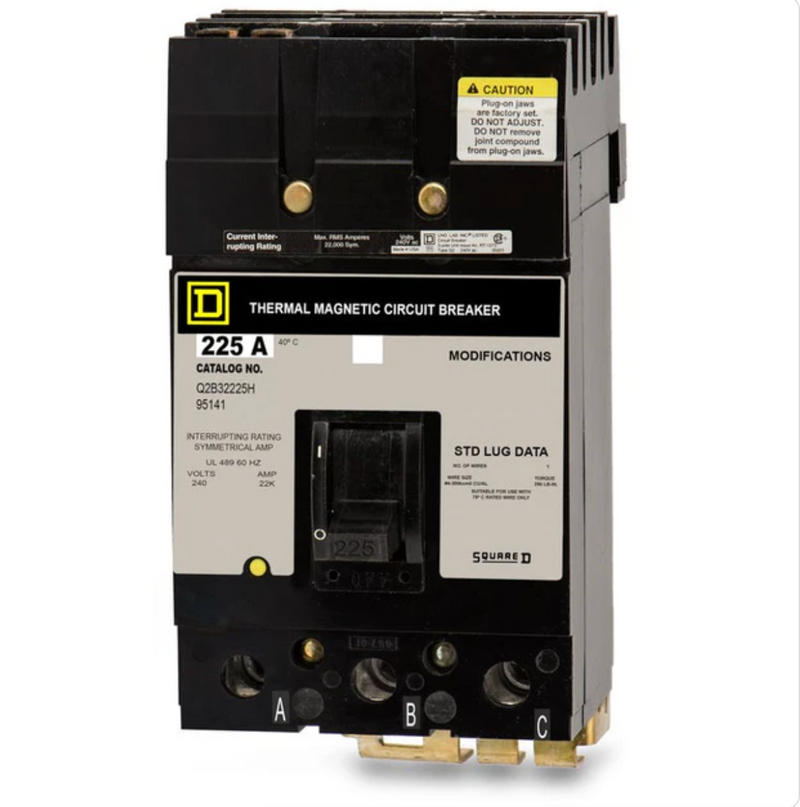

Q2B32225H | Square D 225A 3-Pole 240V Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $329.00
- Sale price
- $329.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: Q2B32225H
Description
The Square D Q2B32225H is a 3-pole molded case circuit breaker designed for effective protection of electrical systems in commercial and industrial environments. Rated for 225 amps and 240 volts, it features a thermal magnetic trip unit that provides both overload and short-circuit protection. With a 22kA interrupting capacity, the Q2B32225H ensures safe and efficient circuit performance under demanding load conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | Q2B32225H |
| Subcategory | Molded Case |
| Series | Q2 Series |
| Type | Q2B |
| Voltage Rating | 240 VAC |
| Current Rating | 225 Amps |
| Poles | 3 |
| Phase | 3 |
| Interrupting Rating (AIC) | 22kA @ 240V |
| Trip Unit Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Connection Type | I-Line Style Plug-In |
| Frequency | 50/60 Hz |
| Frame Type | Q2 Frame |
| Enclosure Type | Open (None) |
| Certifications | UL Listed, CSA Certified |
| Weight | 5 lbs |
Information About Q2B32225H
The Q2B32225H is part of Square D’s Q2 Series, known for its durability and precision in power distribution systems. It incorporates thermal magnetic tripping technology that combines long-time and instantaneous protection modes to guard against both sustained overloads and rapid fault surges. Featuring a 3-pole design and an I-Line style connection, it integrates easily into panelboards and switchboards. Built with a robust molded case frame and tested to UL standards, the Q2B32225H ensures dependable operation across a wide range of electrical applications.
Key Features:
- High Interrupting Rating: Supports up to 22kA at 240V for superior short-circuit protection.
- Thermal Magnetic Trip: Combines long-time and instantaneous tripping for comprehensive protection.
- Three-Pole Configuration: Enables balanced power distribution in three-phase systems.
- I-Line Style Connection: Allows quick and secure plug-in installation for panelboards.
- Non-Interchangeable Trip Unit: Factory-calibrated for precise and reliable operation.
- Rugged Molded Case Design: Provides strong protection against mechanical impact and environmental wear.
- UL and CSA Certified: Meets recognized safety and quality standards.
- Compact Frame: Optimized for space efficiency and easy integration into existing systems.
The Q2B32225H delivers the reliability and precision required for safe, consistent performance in modern electrical distribution networks.
