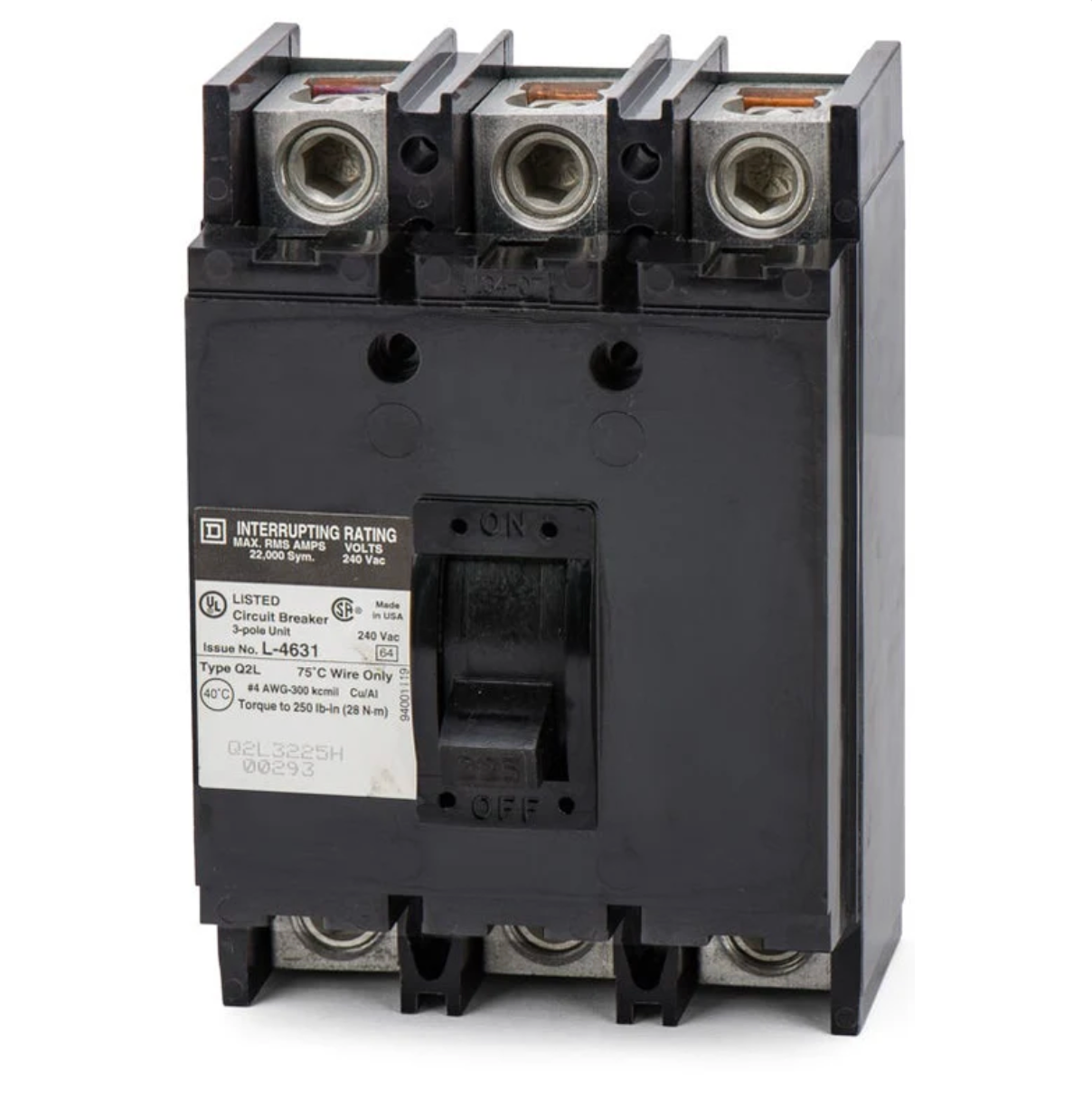

Q2L3225H | Square D 225A 3-Pole 240V Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $725.00
- Sale price
- $725.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: Q2L3225H
Description
The Square D Q2L3225H is a 3-pole molded case circuit breaker designed for reliable protection of electrical circuits in commercial and industrial systems. Rated at 225 amps and 240 volts, this Q2 Series breaker provides 22kA interrupting capacity for safe and efficient overload and short-circuit protection. Featuring thermal magnetic trip technology and a feed-thru connection, the Q2L3225H ensures dependable performance and straightforward installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | Q2L3225H |
| Subcategory | Molded Case |
| Series | Q2 Series |
| Type | Q2L |
| Voltage Rating | 240 VAC |
| Current Rating | 225 Amps |
| Poles | 3 |
| Phase | 3 |
| Interrupting Rating (AIC) | 22kA @ 240V |
| Trip Unit Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Connection Type | Feed-Thru |
| Mounting Style | Bolt-On/Feed-Thru |
| Trip Unit | Non-Interchangeable |
| Certifications | UL, CSA |
| Weight | 4 lbs |
Information About Q2L3225H
The Q2L3225H is part of Square D’s Q2 Series, engineered for high-performance circuit protection in power distribution systems. It features a thermal magnetic trip unit that combines long-time and instantaneous functions to protect against overloads and faults. Designed with a feed-thru connection, this breaker allows flexible mounting and secure wiring in panelboards and load centers. Built with durable materials and UL/CSA certification, the Q2L3225H offers consistent reliability and compliance for a wide range of electrical applications.
Key Features:
- High Interrupting Rating: Offers 22kA@240V for enhanced short-circuit protection.
- Thermal Magnetic Trip Unit: Provides both long-time and instantaneous protection for overloads and faults.
- Three-Pole Configuration: Suitable for balanced three-phase power systems.
- Feed-Thru Connection: Simplifies wiring and ensures secure termination on both line and load sides.
- Non-Interchangeable Trip: Factory-calibrated unit for consistent performance and accuracy.
- Rugged Molded Case: Built for durability in demanding electrical environments.
- UL and CSA Certified: Complies with recognized safety and performance standards.
- Compact Q2L Frame Design: Optimized for space-efficient installation in panelboards.
The Q2L3225H delivers the reliability and precision required for dependable circuit protection in commercial and industrial power distribution systems.
