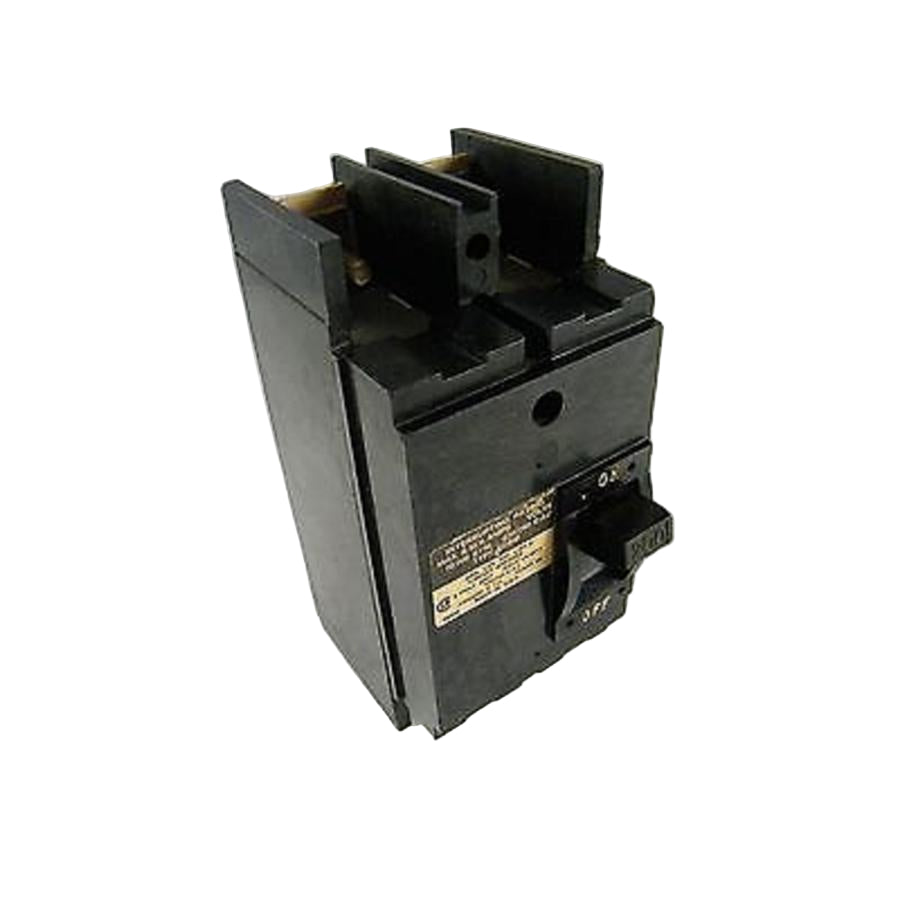

Q2M2200 | Square D 200A 2-Pole 120/240VAC Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $945.00
- Sale price
- $945.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: Q2M2200
Description
The Square D Q2M2200 is a 2-pole thermal magnetic molded case circuit breaker designed to deliver reliable circuit protection for residential, commercial, and light industrial applications. With a 200-amp current rating and a 120/240VAC voltage rating, it provides dependable overload and short-circuit protection. The Q2M2200 features a bolt-on connection type and a bottom-mount configuration for secure and efficient installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | Q2M2200 |
| Subcategory | Molded Case Circuit Breaker |
| Series | Q2M |
| Type | Thermal Magnetic |
| Poles | 2 |
| Amperage Rating | 200A |
| Voltage Rating | 120/240VAC |
| Interrupting Rating | 10kAIC @ 240V |
| Mounting Type | Bottom Mount |
| Connection Type | Bolt-On |
| Trip Functions | Long-Time and Instantaneous |
| Protection Type | Thermal Magnetic |
| Terminal Connection | Load Side Lug |
| Frame Type | Q2M |
| Approval | UL Listed |
| Phase | Single Phase (1PH) |
| Application | Suitable for Main or Feeder Circuit Use |
| Dimensions (HxWxD) | Approx. 6.5" x 3" x 4.1" |
| Weight | 5 lb (2.27 kg) |
Information About Q2M2200
The Q2M2200 is part of the Square D Q2 Series, engineered for durability and consistent performance in demanding electrical systems. This circuit breaker integrates thermal-magnetic trip technology, providing both long-time and instantaneous protection for circuits. It supports bolt-on mounting for a solid electrical connection and is typically used as a main or feeder breaker in distribution panels. Certified under UL standards, the Q2M2200 ensures safety and compliance for power distribution networks operating up to 240V.
Key Features:
- Thermal-Magnetic Trip Unit: Provides long-time and instantaneous protection for overload and fault conditions.
- High Current Capacity: Rated for 200A operation at 120/240VAC, suitable for heavy-duty circuits.
- Standard Interrupting Rating: 10kAIC at 240V ensures reliable fault interruption capability.
- Bolt-On Connection: Enables firm and secure electrical connection in panelboard applications.
- Bottom Mounting Configuration: Simplifies installation and maintains compact panel layouts.
- UL Listed Design: Meets industry safety and performance standards for confidence in operation.
- Durable Construction: Built with high-quality materials for long service life and consistent performance.
- Ideal for Main Circuit Use: Commonly used as a main or feeder breaker in single-phase systems.
The Q2M2200 delivers the reliability and precision required for dependable power distribution and circuit protection in residential and commercial systems.
