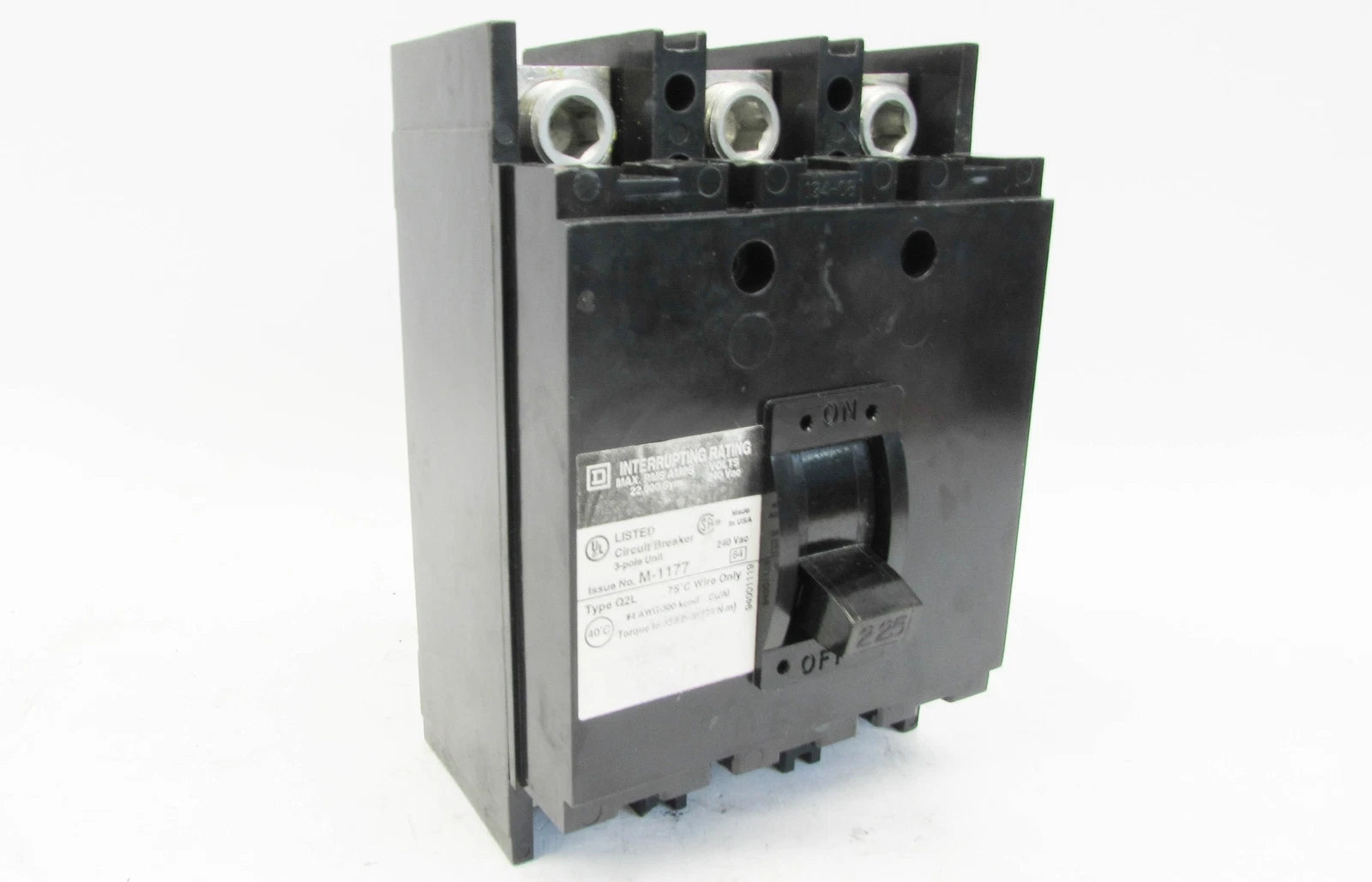

Q2M32255700 | Square D 3-Pole 225A 240VAC Molded Case Circuit Breaker
- Regular price
- $309.00
- Sale price
- $309.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q2M32255700
Description
The Square D Q2M32255700 is a molded case circuit breaker designed to provide dependable overcurrent protection in low-voltage power distribution systems. This 3-pole breaker is rated for 225 A at 240 VAC and features long-time, instantaneous, and ground fault trip functions. It is intended for bolt-on mounting in commercial and industrial electrical panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | Q2M32255700 |
| Subcategory | Molded Case Circuit Breaker |
| Series | Q2 Series |
| Number of Poles | 3 |
| Rated Current | 225 A |
| Rated Voltage | 240 VAC |
| Trip Functions | Long-Time, Instantaneous |
| Interrupting Rating | 10 kAIC @ 240 VAC |
| Mounting Type | Bolt-On |
| Phase | Three Phase |
| UPC | 782451062096 |
| Weight | 7 lbs |
Information About Q2M32255700
The Q2M32255700 is a circuit breaker from the Square D Q2 Series, engineered for reliable protection against overloads and short circuits. It utilizes a thermal-magnetic trip system with LTI (Long-Time, Instantaneous) functionality to ensure fast and accurate fault response. The breaker is designed for bolt-on installation, providing secure mechanical and electrical connections within compatible panelboards. It is commonly used in three-phase electrical systems where controlled interruption and consistent performance are required.
Key Features:
-
Thermal-Magnetic Trip Unit: Provides reliable overload and short-circuit protection.
-
3-Pole Configuration: Designed for three-phase electrical systems.
-
High Current Rating: Rated for 225 A continuous operation.
-
Voltage Rating: Supports applications up to 240 VAC.
-
Interrupting Capacity: Rated at 10 kAIC at 240 VAC for fault protection.
-
Bolt-On Mounting: Ensures secure installation in compatible panels.
-
Q2 Series Design: Compatible with Square D Q2 series distribution equipment.
The Q2M32255700 delivers the reliability and precision required for protecting power distribution circuits in commercial and industrial environments.
