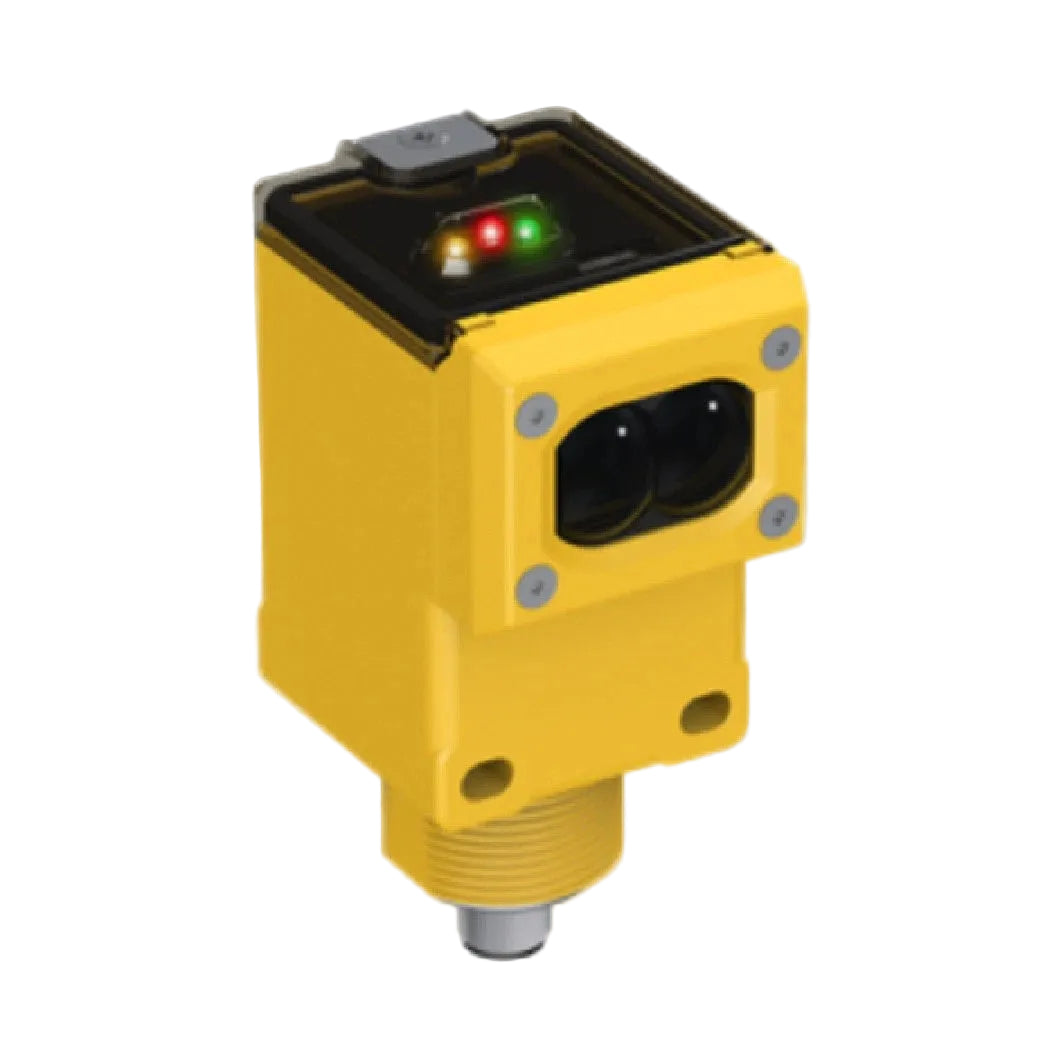

Q45BB6LLPQ | Banner Engineering Polarized Laser Retroreflective Photoelectric Sensor 40 m
- Regular price
- $575.00
- Sale price
- $575.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q45BB6LLPQ
Description
The Banner Engineering Q45BB6LLPQ is a laser polarized retroreflective photoelectric sensor designed for reliable object detection in industrial automation systems. Operating on a 10–30 VDC supply, it supports both NPN and PNP discrete outputs for flexible controller integration. The sensor is optimized for accurate detection up to 40 meters using a visible red Class 2 laser.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Photoelectric Sensors |
| Part Number | Q45BB6LLPQ |
| Subcategory | Retroreflective Sensors |
| Series | Q45 Series |
| Sensor Type | Laser Polarized Retroreflective Photoelectric Sensor |
| Light Source | Visible Red Laser |
| Laser Classification | Class 2 |
| Sensing Range | Up to 40 m |
| Supply Voltage | 10–30 VDC |
| Output Type | Bipolar (NPN/PNP) |
| Switching Current | 250 mA |
| Response Time | 2 ms |
| Repeatability | 0.5 ms |
| Connection Type | Integral Quick Disconnect |
| Quick Disconnect Type | 7/8 in. Mini, 5-pin |
| Housing Material | Thermoplastic |
| Lens Material | Acrylic |
| Ingress Protection | IP67 |
| NEMA Rating | NEMA 4X / 6P |
| Operating Temperature | -10 °C to 40 °C |
| Relative Humidity | 90% RH |
| Indicators | LEDs |
| Weight | Approx. 0.6 lb |
Information About Q45BB6LLPQ
The Q45BB6LLPQ is part of the Banner Engineering Q45 Series, which is known for robust construction and dependable optical performance in industrial environments. This model uses polarized retroreflective sensing technology to minimize false detections from shiny or reflective targets. It features a rugged thermoplastic rectangular housing with sealed protection suitable for harsh conditions. Installation and adjustment are simplified through LED status indicators, potentiometer tuning, and an integral quick-disconnect interface.
Key Features:
- Polarized Retroreflective Sensing: Reduces false triggering from reflective backgrounds and shiny surfaces.
- Visible Red Laser Source: Provides a focused Class 2 laser beam for precise long-range detection.
- Extended Detection Range: Supports sensing distances up to 40 meters in retroreflective applications.
- Bipolar Output Support: Offers both NPN and PNP outputs for broad system compatibility.
- Rugged Environmental Protection: Rated IP67 and NEMA 4X/6P for industrial durability.
- Fast Switching Performance: Features a 2 ms response time for high-speed automation tasks.
- User Adjustment Interface: Includes LED indicators and potentiometer-based sensitivity adjustment.
The Q45BB6LLPQ delivers the reliability and precision required for polarized laser retroreflective sensing in industrial automation applications.
