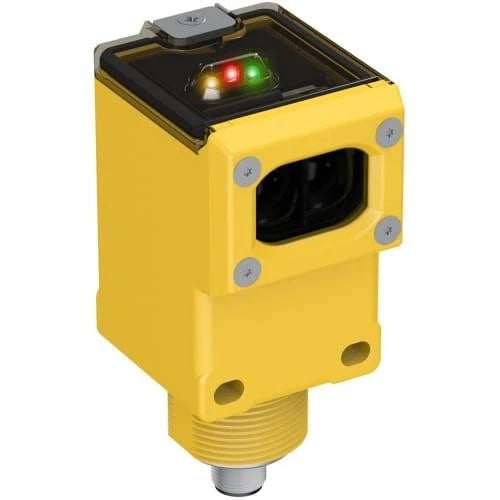

Product Description P/N: Q45BB6LLQ6
Description
The Banner Engineering Q45BB6LLQ6 is a laser retroreflective photoelectric sensor designed for long-range object detection in industrial automation environments. It operates on a 10–30 VDC supply and supports both NPN and PNP discrete outputs for flexible control system integration. The sensor is optimized for precise detection over extended distances using a visible red Class 2 laser.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Photoelectric Sensors |
| Part Number | Q45BB6LLQ6 |
| Subcategory | Retroreflective Sensors |
| Series | Q45 Series |
| Sensor Type | Laser Retroreflective Photoelectric Sensor |
| Light Source | Visible Red Laser |
| Laser Classification | Class 2 |
| Sensing Range | Up to 70 m |
| Supply Voltage | 10–30 VDC |
| Output Type | Bipolar (NPN/PNP) |
| Response Time | 2 ms |
| Connection Type | Integral Quick Disconnect |
| Quick Disconnect | M12, 5-pin |
| Housing Material | Thermoplastic |
| Lens Material | Acrylic |
| Ingress Protection | IP67 |
| NEMA Rating | NEMA 4X / 6P |
| Operating Temperature | -10 °C to 40 °C |
| Relative Humidity | 90% RH |
| Indicators | LEDs |
| Weight | Approx. 0.6 lb |
Information About Q45BB6LLQ6
The Q45BB6LLQ6 is part of the Banner Engineering Q45 Series, known for its rugged rectangular housing and stable optical performance. It features a non-polarized retroreflective sensing mode with a narrow laser beam for accurate detection at distances up to 70 meters. The sensor uses an integral M12 quick-disconnect interface with five pins, allowing fast installation and reliable electrical connections. Designed for industrial environments, it offers IP67 and NEMA-rated protection along with LED indicators and potentiometer-based adjustment.
Key Features:
- Laser Retroreflective Sensing: Uses a visible red Class 2 laser for long-distance and precise object detection.
- Extended Sensing Range: Supports detection distances up to 70 meters for large-area applications.
- Bipolar Output Capability: Provides both NPN and PNP outputs for compatibility with various control systems.
- Rugged Environmental Protection: Rated IP67 and NEMA 4X/6P for resistance to dust and moisture.
- Fast Response Time: Delivers a 2 ms output response for high-speed automation processes.
- Integral Quick Disconnect: Equipped with a 5-pin M12 connector for secure and efficient wiring.
- User-Friendly Adjustment: Includes LED indicators and potentiometer tuning for setup and diagnostics.
The Q45BB6LLQ6 delivers the reliability and precision required for long-range photoelectric sensing in industrial automation systems.
