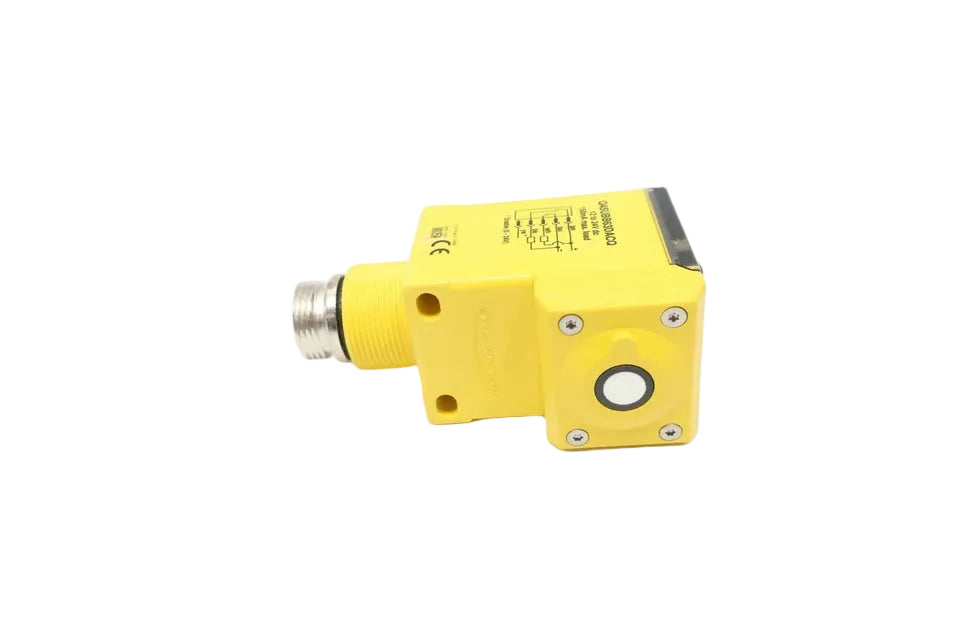

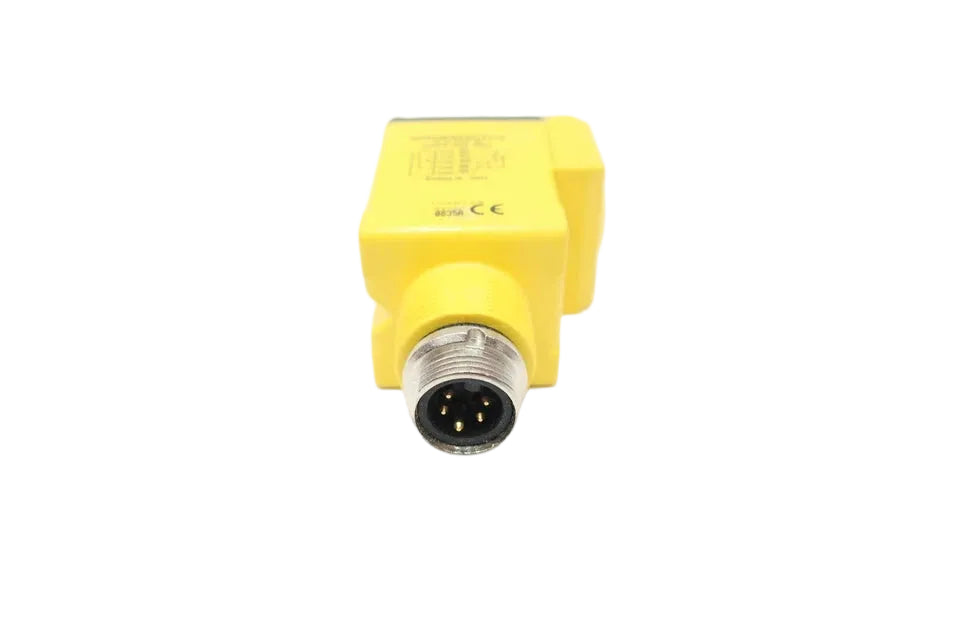

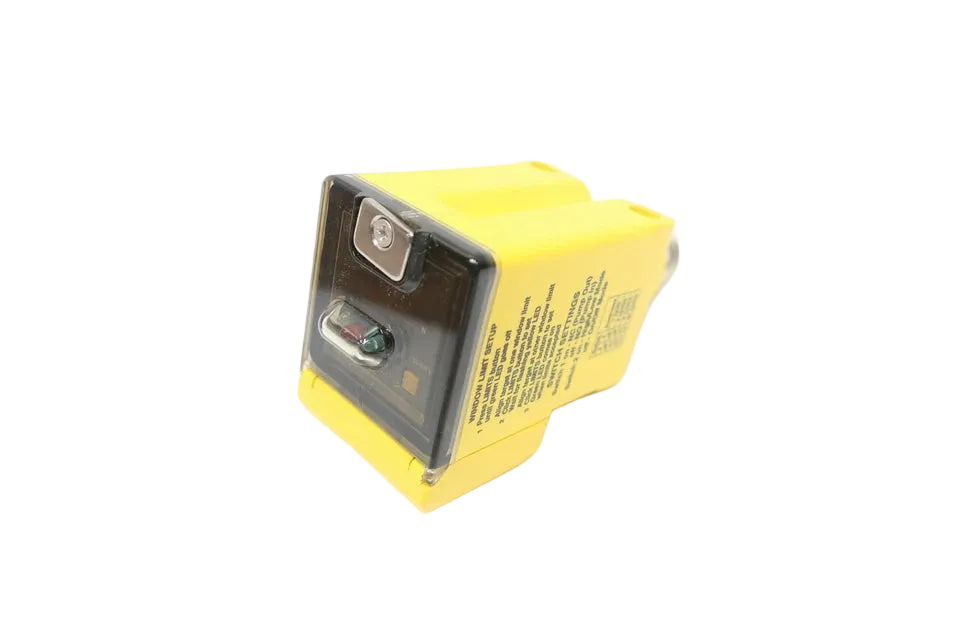

Q45UBB63DACQ | Banner Engineering Q45U Ultrasonic Proximity Sensor, 1400 mm
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q45UBB63DACQ
Description
The Banner Engineering Q45UBB63DACQ is a Q45U Series ultrasonic proximity sensor designed for reliable object detection using time-of-flight technology. It provides consistent sensing performance across short to mid-range distances in industrial automation environments. This sensor supports discrete bipolar outputs and is engineered for non-contact detection where target material or color may vary.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Sensors |
| Part Number | Q45UBB63DACQ |
| Subcategory | Ultrasonic Sensors |
| Series | Q45U Series |
| Sensor Type | Ultrasonic Proximity Sensor |
| Sensing Mode | Time-of-Flight |
| Sensing Range | 100–1400 mm |
| Ultrasonic Frequency | 230 kHz |
| Supply Voltage | 12–24 VDC |
| Output Type | Discrete, Bipolar (NPN/PNP) |
| Housing Material | PBT |
| Cover Material | Acrylic |
| Housing Style | Rectangular |
| Connection Type | Integral Quick-Disconnect |
| Quick Disconnect Size | 7/8 in Mini |
| Number of Pins | 5 |
| IP Rating | IP67 |
| NEMA Rating | 4X / 6P |
| Operating Temperature Range | −25 to 70 °C |
| Indicators | LED(s) |
| Remote Teach | Yes |
| Weight | 0.46 lb |
Information About Q45UBB63DACQ
The Q45UBB63DACQ is part of Banner Engineering’s Q45U ultrasonic sensor family, built for durable and accurate proximity sensing in industrial conditions. It features a rectangular PBT housing with an acrylic cover and sealed construction rated for harsh environments. The sensor integrates discrete NPN/PNP outputs and connects via a 7/8-inch mini quick-disconnect for simplified installation. It is commonly used in material handling, part presence detection, and automation systems requiring dependable ultrasonic sensing.
Key Features:
- Ultrasonic Time-of-Flight Sensing: Detects objects based on sound-wave reflection for material-independent sensing.
- Defined Sensing Range: Operates from 100 mm up to 1400 mm for controlled proximity detection.
- Bipolar Discrete Outputs: Supports both NPN and PNP outputs for flexible system compatibility.
- High-Frequency Ultrasonic Operation: Utilizes a 230 kHz ultrasonic frequency for precise detection.
- Rugged Environmental Protection: Rated IP67 and NEMA 4X/6P for industrial durability.
- Remote Teach Capability: Allows setup and adjustment without direct access to the sensor face.
- Integral Quick-Disconnect: Uses a 7/8-inch mini connector for fast installation and replacement.
The Q45UBB63DACQ delivers the reliability and precision required for industrial ultrasonic proximity sensing applications.
Description
The Banner Engineering Q45UBB63DACQ is a Q45U Series ultrasonic proximity sensor designed for reliable object detection using time-of-flight technology. It provides consistent sensing performance across short to mid-range distances in industrial automation environments. This sensor supports discrete bipolar outputs and is engineered for non-contact detection where target material or color may vary.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Sensors |
| Part Number | Q45UBB63DACQ |
| Subcategory | Ultrasonic Sensors |
| Series | Q45U Series |
| Sensor Type | Ultrasonic Proximity Sensor |
| Sensing Mode | Time-of-Flight |
| Sensing Range | 100–1400 mm |
| Ultrasonic Frequency | 230 kHz |
| Supply Voltage | 12–24 VDC |
| Output Type | Discrete, Bipolar (NPN/PNP) |
| Housing Material | PBT |
| Cover Material | Acrylic |
| Housing Style | Rectangular |
| Connection Type | Integral Quick-Disconnect |
| Quick Disconnect Size | 7/8 in Mini |
| Number of Pins | 5 |
| IP Rating | IP67 |
| NEMA Rating | 4X / 6P |
| Operating Temperature Range | −25 to 70 °C |
| Indicators | LED(s) |
| Remote Teach | Yes |
| Weight | 0.46 lb |
Information About Q45UBB63DACQ
The Q45UBB63DACQ is part of Banner Engineering’s Q45U ultrasonic sensor family, built for durable and accurate proximity sensing in industrial conditions. It features a rectangular PBT housing with an acrylic cover and sealed construction rated for harsh environments. The sensor integrates discrete NPN/PNP outputs and connects via a 7/8-inch mini quick-disconnect for simplified installation. It is commonly used in material handling, part presence detection, and automation systems requiring dependable ultrasonic sensing.
Key Features:
- Ultrasonic Time-of-Flight Sensing: Detects objects based on sound-wave reflection for material-independent sensing.
- Defined Sensing Range: Operates from 100 mm up to 1400 mm for controlled proximity detection.
- Bipolar Discrete Outputs: Supports both NPN and PNP outputs for flexible system compatibility.
- High-Frequency Ultrasonic Operation: Utilizes a 230 kHz ultrasonic frequency for precise detection.
- Rugged Environmental Protection: Rated IP67 and NEMA 4X/6P for industrial durability.
- Remote Teach Capability: Allows setup and adjustment without direct access to the sensor face.
- Integral Quick-Disconnect: Uses a 7/8-inch mini connector for fast installation and replacement.
The Q45UBB63DACQ delivers the reliability and precision required for industrial ultrasonic proximity sensing applications.
