Q5001D1000 | Honeywell Valve Linkage for Modutrol III & IV Motors
- Regular price
- $992.00
- Sale price
- $992.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: Q5001D1000
Description

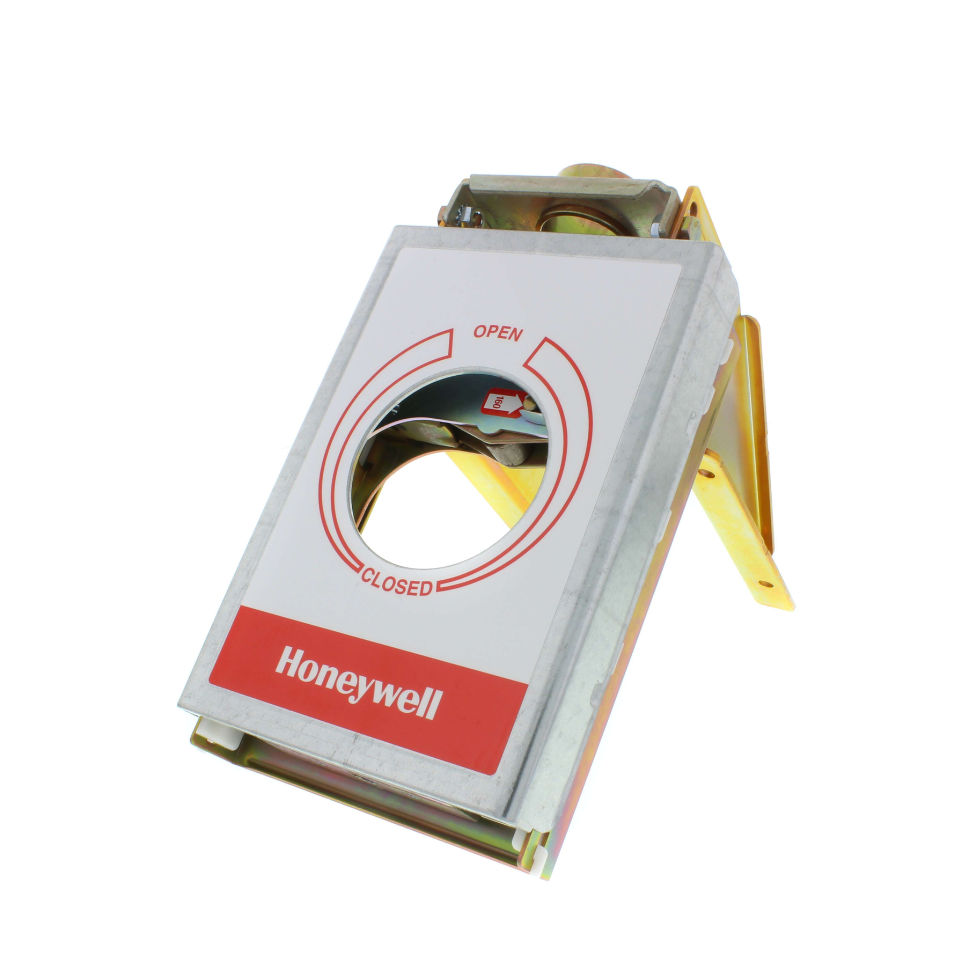

The Honeywell Q5001D1000 is a valve bracket and linkage assembly designed for use with Modutrol III and IV motors that provide up to 80 or 160 lb stem force. It supports both 2-way and 3-way valve applications with a 3/4-inch lift stroke and a bonnet size of 1-3/8 inches, offering reliable mechanical connection for precise valve positioning.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Valve Accessories |
| Part Number | Q5001D1000 |
| Subcategory | Valve Linkage |
| Product Type | Valve Linkage Assembly |
| Compatible Motors | Modutrol III and IV Series |
| Compatible Valves | 2-Way and 3-Way Valves |
| Stem Force Options | 80 lb or 160 lb (Selectable) |
| Stroke | 3/4 inch (Adjustable) |
| Bonnet Size | 1-3/8 inch |
| Operation Type | Modulating or Two-Position Control |
| Temperature Range | -40°F to +150°F (-40°C to +65°C) |
| Overtravel Design | Allows Tight Close-Off Without Excessive Motor Load |
| Cam Selection | Reversible Cams for Normally Open or Normally Closed Operation |
| Position Indicator | Integrated, Easy-to-Read Scale |
| Mounting Style | Direct Valve Bonnet Mount with Bracket for Motor Attachment |
| Construction Material | Heavy-Duty Zinc-Plated Steel and Aluminum Components |
| Includes | 1-3/8 in. Valve Bracket and Anti-Spin Clip |
| Replaces | Q601 and Q618 Valve Linkages |
| Special Features | No Adjustment Required for Use with Honeywell Valves |
| Applications | HVAC Valve Actuation, Modulating or On/Off Service |
| Weight | 6.90 lbs (3.13 kg) |
Information About Q5001D1000
The Q5001D1000 is part of Honeywell’s durable valve linkage series, designed to couple Modutrol III and IV motors to 2-way and 3-way valves for modulating or two-position service. Its robust mechanical design ensures accurate transmission of motor torque to valve stems with selectable stem forces of 80 or 160 pounds, accommodating a wide range of HVAC control applications. The linkage mounts directly to the valve bonnet, while the motor attaches securely to the linkage bracket for precise motion transfer. Overtravel compensation prevents strain on motor components, allowing the valve to close tightly without damage. Reversible cams enable quick field conversion between normally open and normally closed configurations, and the integrated position indicator simplifies calibration and monitoring. With rugged materials and a wide temperature operating range, the Q5001D1000 ensures consistent performance and long-term reliability in demanding HVAC environments.
Key Features:
- Dual Stem Force Capability: Adjustable for 80 lb or 160 lb stem force, suitable for various valve torque requirements.
- Wide Compatibility: Works with both 2-way and 3-way valves for modulating or two-position control.
- Easy Installation: No adjustment required when paired with Honeywell Modutrol IV motors and valves.
- Overtravel Protection: Ensures tight valve closure without imposing excessive strain on the actuator.
- Reversible Cam Design: Allows field selection of normally open or normally closed operation.
- Integrated Position Indicator: Provides clear visual feedback for setup and inspection.
- Rugged Construction: Built from corrosion-resistant steel and aluminum for long service life.
- Wide Temperature Range: Operates reliably from -40°F to +150°F in industrial and commercial environments.
- Anti-Spin Clip Included: Prevents unwanted valve rotation during operation.
- Direct Mounting Design: Simplifies assembly with direct bonnet connection and sturdy motor bracket.
The Q5001D1000 delivers the reliability and precision required for accurate valve actuation in HVAC and process control systems, combining flexibility, ease of use, and robust mechanical performance.
