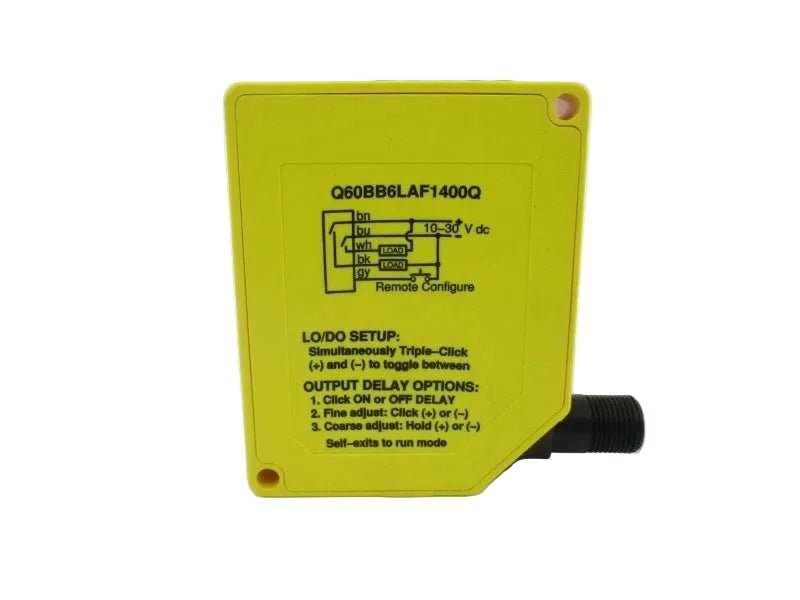

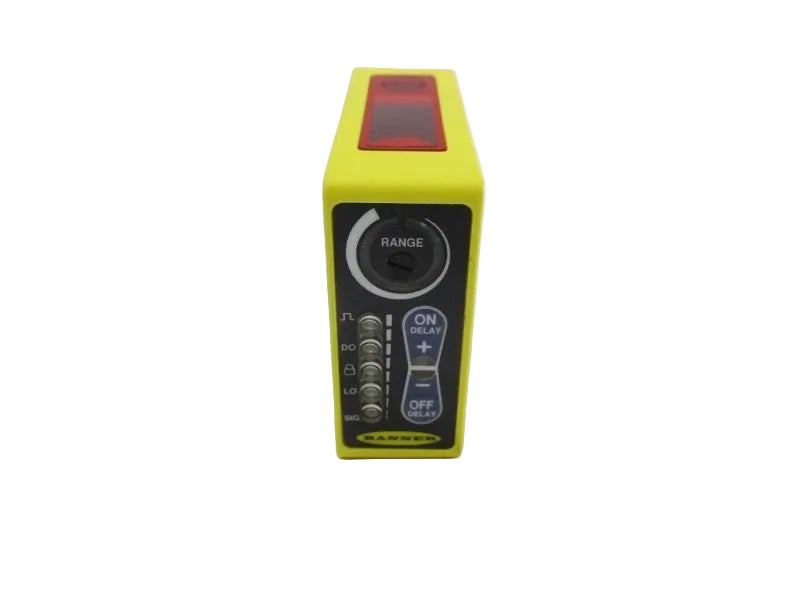

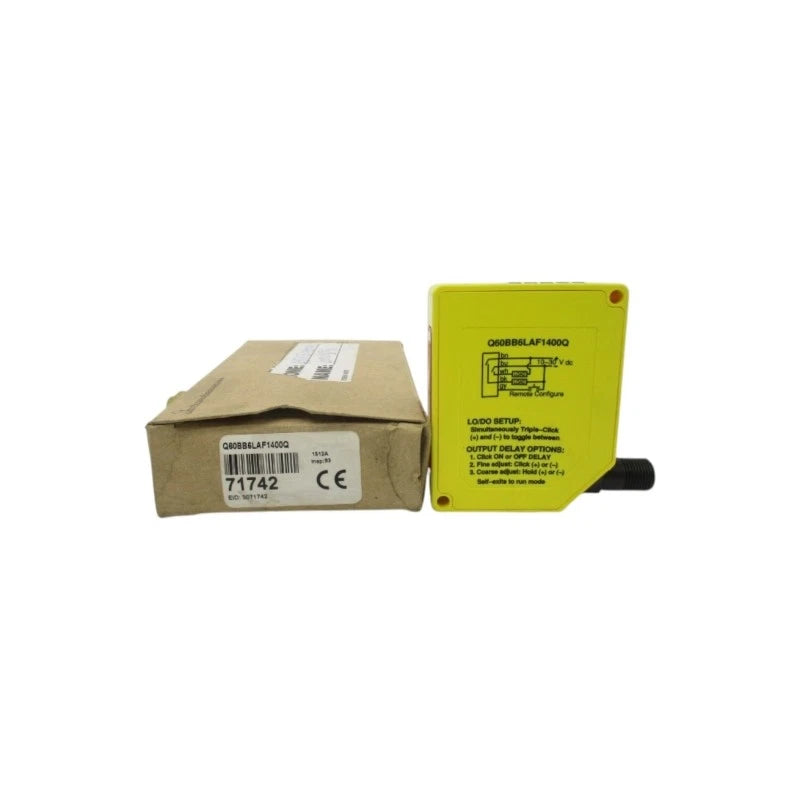

Q60BB6LAF1400Q | Banner Engineering Q60 Laser Photoelectric Sensor, 1.4 m Range
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q60BB6LAF1400Q
Description
The Banner Engineering Q60BB6LAF1400Q photoelectric sensor is a laser-based background suppression sensor designed for accurate object detection at extended distances. Built in a rectangular housing, this sensor delivers precise discrete switching performance for industrial automation and material handling applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | Q60BB6LAF1400Q |
| Subcategory | Photoelectric Sensors |
| Series | Q60 Series |
| Sensor Type | Photoelectric Sensor |
| Technology | Laser |
| Sensing Mode | Background Suppression |
| Measurement Range | Up to 1.4 m |
| Sensing Range | 1400 mm |
| Light Source | Laser |
| Output Type | Discrete |
| Output Configuration | Bipolar NPN/PNP |
| Supply Voltage | 10–30 VDC |
| Switching Current | 150 mA |
| Response Time | 2 ms |
| Turn-On Delay Time | 1000 ms |
| Mechanical Angle | 2 Degrees |
| Connection Type | Connector |
| Number of Pins | 5 |
| Housing Material | Thermoplastic |
| Lens Material | Acrylic |
| Indicators | LED(s) |
| Humidity Rating | Up to 90% RH |
| IP Rating | IP67 |
| NEMA Rating | 6 |
| Operating Temperature | -10°C to 50°C |
| Weight | 0.35 lbs |
Information About Q60BB6LAF1400Q
The Q60BB6LAF1400Q is part of Banner Engineering’s Q60 Series, which is engineered for reliable photoelectric sensing in demanding industrial environments. This sensor uses laser technology with background suppression to detect targets up to 1.4 meters while minimizing false detection from background surfaces. It operates on a 10–30 VDC power supply and provides bipolar NPN/PNP discrete outputs for flexible control system integration. Designed with an IP67- and NEMA 6-rated enclosure, it is suitable for applications exposed to dust, moisture, and vibration.
Key Features:
- Laser Photoelectric Technology: Uses a focused laser beam for precise and consistent object detection.
- Background Suppression Mode: Accurately detects targets while ignoring background objects beyond the set range.
- Long Sensing Distance: Supports detection ranges up to 1.4 meters for extended reach applications.
- Bipolar NPN/PNP Output: Allows flexible wiring to different PLC and control systems.
- Fast Response Time: Provides a 2 ms response for high-speed automation processes.
- Rugged Rectangular Housing: Thermoplastic enclosure designed for industrial durability.
- IP67 / NEMA 6 Protection: Ensures reliable operation in harsh environmental conditions.
The Q60BB6LAF1400Q delivers the reliability and precision required for industrial photoelectric object detection and automation control.
