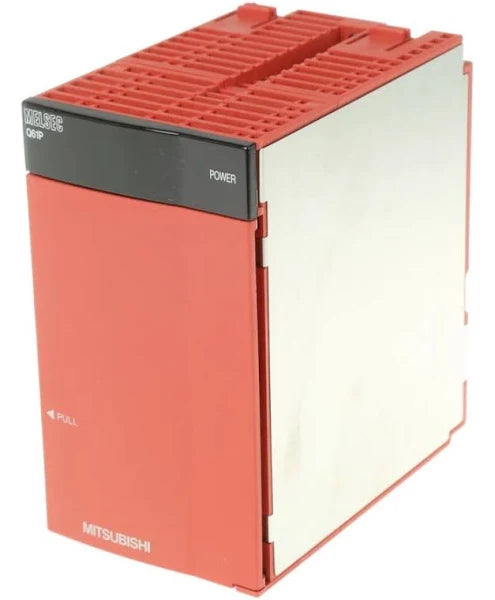

Q61P | Mitsubishi Power supply units for PLCs
- Regular price
- $172.00
- Sale price
- $172.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: Q61P
Description
The Mitsubishi Q61P MELSEC System Q module is a power supply module designed for reliable performance. It operates with a rated input voltage range of 100 to 240 VAC, and it accepts a variable input voltage range from 85 to 264 VAC (-15% to +10% of the rated input voltage). The module has a frequency range of 50/60nHz, +/-5%, and it can handle momentary power failures within 20 msec. With a maximum inrush current rating of 20A for 8 msec or less, it ensures efficient power delivery.
Technical Specifications
| Brand | Mitsubishi |
| Part Number | Q61P |
| Model Type | Power supply module |
| Rated input voltage | 100 to 240 VAC |
| Variable Input Voltage Range | 85 to 264VAC (-15% to +10% of rated input voltage) |
| Input Frequency | 50/60 Hz |
| Allowable Momentary Power Failure Period | Within 20 msec |
| Inrush Current | 20A, 8 msec or lower |
| Max. Input Apparent Power | 130VA or lower |
| Efficiency | 70% or higher |
| ERR Contact Output | 24VDC, 0.5A |
| Rated Output Current at 5VDC | 6A |
| Overcurrent Protection | 6.6 to 7.9A |
| Overvoltage Protection | 5.5 to 6.5V |
| Standards | UL/cUL and CE |
| CPU Module Monitoring | ERR contacts |
Information About Q61P
The Mitsubishi Q61P module is a MELSEC System Q power supply module designed to deliver reliable and efficient power to industrial programmable control systems. It operates with a rated input voltage range from 100 to 240 VAC, and it is compatible with several AC power sources. The Q61P module can also accommodate variable input voltage within the range of 85 to 264 VAC, -15% to +10% of the rated input voltage. With an input frequency rating of 50/60 Hz +/-5%, the Q61P module is compatible with standard power supplies. To ensure continuous operation during momentary power failures, the Q61P power supply supports an allowable momentary power failure period of 20 msec. The power supply’s inrush current rating is 20A for 8 msec or lower, reducing stress on the system during startup. For efficient power management, the Q61P module supports an efficiency rating of 70% or higher. The Q61P power supply supports an ERR contact output option that is rated at 24 VDC and 0.5A. It also 6A of output current at 5 VDC. The Q61P module incorporates an overcurrent protection feature that can tolerate a current range of 6.6 to 7.9A. Additionally, it has an overvoltage protection feature that can tolerate a voltage range of 5.5 to 6.5 V. The Q61P module adheres to several industrial safety standards and regulations, including the UL/cUL and CE standards. The Q61P module can monitor the status of the controller system’s CPU module by using the ERR contacts. Moreover, the Q61P power supply module complies with the RoHS directive.
Manufacturer information
Mitsubishi Electric Corporation, established in 1921, is a leading global manufacturer of electrical and electronic products. Renowned for innovation, it specializes in automation, energy, and electronic systems, contributing to advancements across various industries worldwide.
