Part #: Q624A1014 Manufactured by: Honeywell
Regular price
$314.00
Sale price
$314.00
Regular price
$0.00
3 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Q624A1014 solid-state ignition transformer provides reliable high-voltage spark generation for interrupted gas ignitio...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: Q624A1014
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Honeywell
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: Q624A1014

Description / Specifications

Description

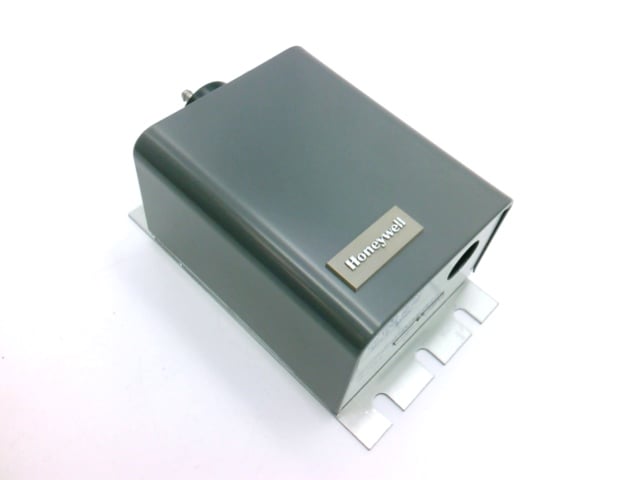

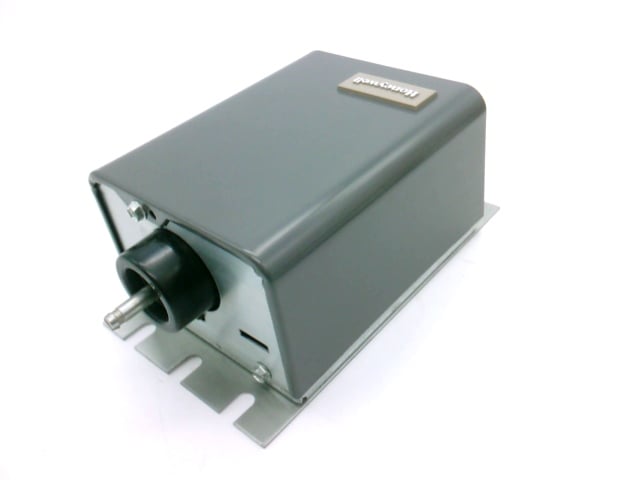

The Honeywell Q624A1014 is a solid-state gas ignition transformer (spark generator) designed to ignite gas pilots in commercial and industrial burner systems. Operating at 120 VAC, 50/60 Hz, it produces a high-voltage output of up to 15 kV peak for reliable light-off across spark gaps up to 1/4 inch (6.5 mm). Its compact, lightweight, and durable design provides dependable ignition performance for interrupted ignition applications only.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category Transformers
Part Number Q624A1014
Subcategory HVAC Transformer
Product Type Gas Ignition Transformer (Spark Generator)
Output Voltage 15 kV peak (nominal 10 kV operational)
Input Voltage 120 VAC ±10 %, 50/60 Hz
Spark Gap Up to 1/4 in (6.5 mm)
Output Type High-voltage electrode connection
Ignition Type Interrupted ignition only
Power Output Approx. 35 W typical (high-voltage pulse)
Construction Type Solid-state (electronic)
Operating Temperature –40 °F to +125 °F (–40 °C to +52 °C)
Operating Humidity Up to 95 % RH non-condensing
Mounting Standard transformer base (same footprint as conventional)
Terminals Threaded terminal nut and high-voltage electrode output
Housing Sealed, metal chassis
Certifications UL Recognized, CSA Certified
Compatible Flame Detectors C7027, C7035, C7044, C7061 UV series
Frequency 50/60 Hz
Weight 2.65 lb (1.2 kg)
Dimensions (H × W × D) 6.75 in × 4.25 in × 3 in





Information About Q624A1014

The Q624A1014 belongs to Honeywell’s solid-state ignition transformer line, engineered to provide consistent spark generation for gas-fired equipment. It replaces conventional iron-core transformers, offering superior efficiency, reduced weight, and lower heat generation. When properly applied, it prevents false flame detection in UV flame detection systems using Honeywell’s C7027, C7035, or C7044 Minipeeper sensors. The transformer’s solid-state circuitry ensures consistent high-voltage output, while its threaded terminal design allows easy connection to high-voltage electrodes and ground wiring in burner assemblies. UL Recognized and CSA Certified, the Q624A1014 is built for long-term reliability under extreme environmental conditions.

Key Features:

  • High Voltage Output: Generates up to 15,000 V peak for reliable ignition of gas pilots.
  • Wide Spark Gap Capability: Supports spark gaps up to 1/4 in (6.5 mm) for flexible pilot configurations.
  • Solid-State Design: Uses electronic circuitry for efficient energy transfer, eliminating mechanical transformer cores.
  • Lightweight Construction: Weighs only 2.65 lb (1.2 kg)—less than half the weight of standard ignition transformers.
  • Compact Dimensions: Fits in the same mounting space as conventional transformers, simplifying retrofits.
  • Spark Isolation Protection: Prevents false detection of ignition spark in compatible UV flame detection systems.
  • Interrupted Ignition Use: Intended solely for interrupted ignition operation, ensuring compliance with system safety standards.
  • Environmental Resilience: Operates from –40 °F to +125 °F (–40 °C to +52 °C) and up to 95 % relative humidity.
  • High Reliability: Solid-state circuitry minimizes moving parts and enhances ignition consistency over time.
  • Certified Safety: UL Recognized and CSA Certified for industrial and commercial gas burner applications.

The Q624A1014 delivers the robust performance, reliability, and safety demanded in industrial burner and ignition systems.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Honeywell Q624A1014 is a solid-state gas ignition transformer (spark generator) designed to ignite gas pilots in commercial and industrial burner systems. Operating at 120 VAC, 50/60 Hz, it produces a high-voltage output of up to 15 kV peak for reliable light-off across spark gaps up to 1/4 inch (6.5 mm). Its compact, lightweight, and durable design provides dependable ignition performance for interrupted ignition applications only.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category Transformers
Part Number Q624A1014
Subcategory HVAC Transformer
Product Type Gas Ignition Transformer (Spark Generator)
Output Voltage 15 kV peak (nominal 10 kV operational)
Input Voltage 120 VAC ±10 %, 50/60 Hz
Spark Gap Up to 1/4 in (6.5 mm)
Output Type High-voltage electrode connection
Ignition Type Interrupted ignition only
Power Output Approx. 35 W typical (high-voltage pulse)
Construction Type Solid-state (electronic)
Operating Temperature –40 °F to +125 °F (–40 °C to +52 °C)
Operating Humidity Up to 95 % RH non-condensing
Mounting Standard transformer base (same footprint as conventional)
Terminals Threaded terminal nut and high-voltage electrode output
Housing Sealed, metal chassis
Certifications UL Recognized, CSA Certified
Compatible Flame Detectors C7027, C7035, C7044, C7061 UV series
Frequency 50/60 Hz
Weight 2.65 lb (1.2 kg)
Dimensions (H × W × D) 6.75 in × 4.25 in × 3 in





Information About Q624A1014

The Q624A1014 belongs to Honeywell’s solid-state ignition transformer line, engineered to provide consistent spark generation for gas-fired equipment. It replaces conventional iron-core transformers, offering superior efficiency, reduced weight, and lower heat generation. When properly applied, it prevents false flame detection in UV flame detection systems using Honeywell’s C7027, C7035, or C7044 Minipeeper sensors. The transformer’s solid-state circuitry ensures consistent high-voltage output, while its threaded terminal design allows easy connection to high-voltage electrodes and ground wiring in burner assemblies. UL Recognized and CSA Certified, the Q624A1014 is built for long-term reliability under extreme environmental conditions.

Key Features:

  • High Voltage Output: Generates up to 15,000 V peak for reliable ignition of gas pilots.
  • Wide Spark Gap Capability: Supports spark gaps up to 1/4 in (6.5 mm) for flexible pilot configurations.
  • Solid-State Design: Uses electronic circuitry for efficient energy transfer, eliminating mechanical transformer cores.
  • Lightweight Construction: Weighs only 2.65 lb (1.2 kg)—less than half the weight of standard ignition transformers.
  • Compact Dimensions: Fits in the same mounting space as conventional transformers, simplifying retrofits.
  • Spark Isolation Protection: Prevents false detection of ignition spark in compatible UV flame detection systems.
  • Interrupted Ignition Use: Intended solely for interrupted ignition operation, ensuring compliance with system safety standards.
  • Environmental Resilience: Operates from –40 °F to +125 °F (–40 °C to +52 °C) and up to 95 % relative humidity.
  • High Reliability: Solid-state circuitry minimizes moving parts and enhances ignition consistency over time.
  • Certified Safety: UL Recognized and CSA Certified for industrial and commercial gas burner applications.

The Q624A1014 delivers the robust performance, reliability, and safety demanded in industrial burner and ignition systems.
