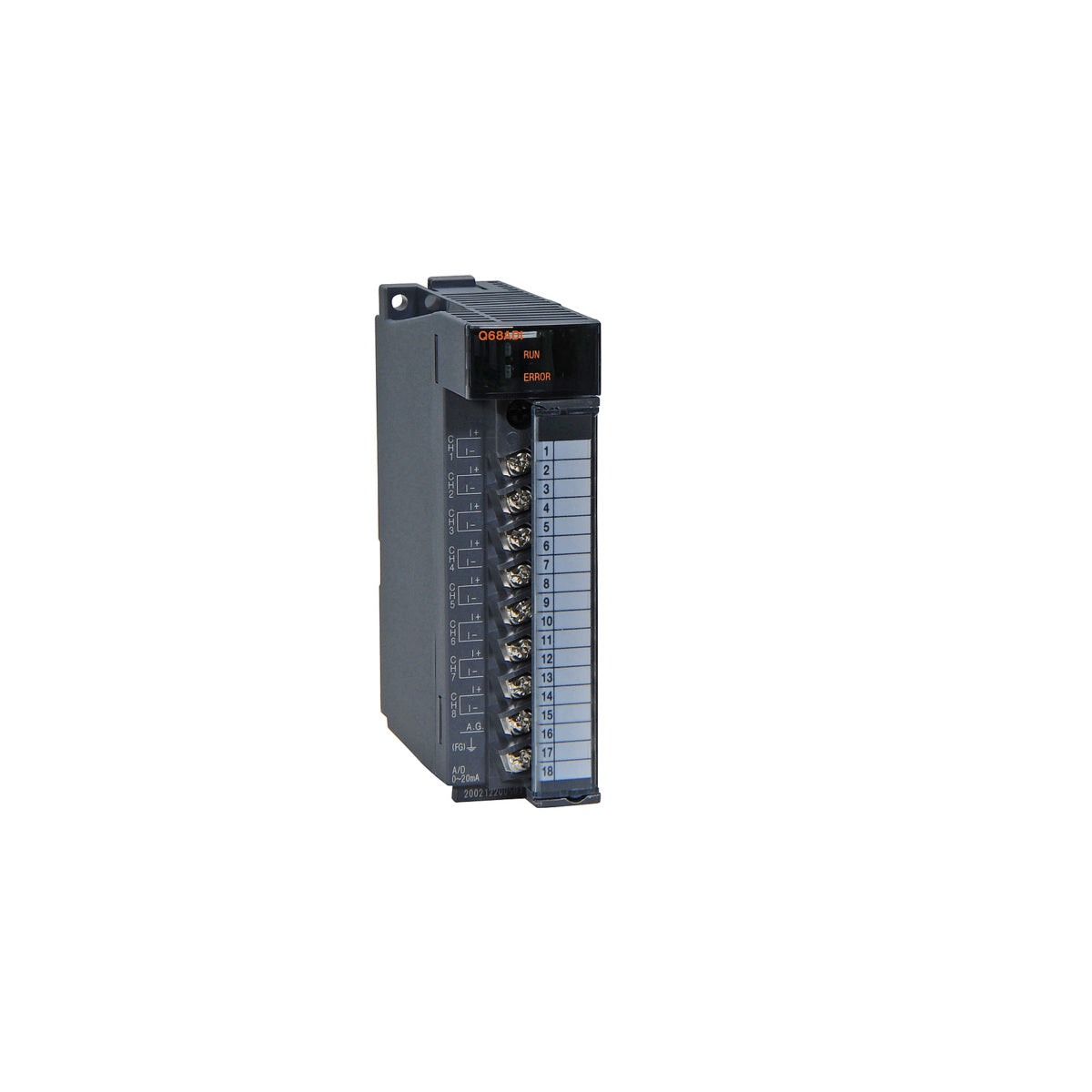

Q68ADI | Mitsubishi 8 channel analog input module current
- Regular price
- $524.00
- Sale price
- $524.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: Q68ADI
Description
The Mitsubishi Q68ADI module is an analog input module for MELSEC Q Series industrial controllers. The Q68ADI module is used to measure and control various analog signals such as temperature, pressure, level, flow, and others. It can be used in a variety of industrial applications such as process control, equipment management and factory automation.
Technical Specifications
| Brand | Mitsubishi |
| Part Number | Q68ADI |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Series | MELSEC-Q SERIES |
| Type | ANALOG INPUT |
| Occupied I/O Points on PLC | 16 |
| Integrated Analogue Inputs | 8 |
| Input Current Range (mA) | 0-20; 4-20 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,64 |
| Width (mm) | 27,4 |
| Height (mm) | 98 |
| Depth (mm) | 90 |
Information About Q68ADI
The Q68ADI is a high-performance 8-channel analog input module designed for the MELSEC-Q SERIES by Mitsubishi Electric. Specifically categorized as an ANALOG INPUT module, it contributes to the efficient and precise handling of analog signals within industrial automation applications.
Occupying 16 I/O points on the PLC, the Q68ADI integrates 8 analog input channels, providing a comprehensive solution for monitoring and processing analog signals. This module supports a diverse range of input current, including 0-20 mA and 4-20 mA, making it adaptable to various sensor and instrumentation requirements.
The module employs a reliable SCREW wiring mechanism, ensuring secure and stable connections for the input signals. With a low internal current consumption of 0.64 A, the Q68ADI optimizes energy efficiency within the system.
In terms of physical dimensions, the module is compact, measuring 27.4 mm in width, 98 mm in height, and 90 mm in depth. This space-efficient design allows for easy integration into control panels or other automation setups.
Part of the MELSEC-Q SERIES, the Q68ADI exemplifies Mitsubishi's commitment to delivering advanced and reliable automation solutions. Its versatility, precise analog signal processing capabilities, and compact design make it an essential component for industrial applications demanding accuracy and efficiency in handling analog inputs.
Manufacturer information
Mitsubishi Electric Corporation, established in 1921, is a leading global manufacturer of electrical and electronic products. Renowned for innovation, it specializes in automation, energy, and electronic systems, contributing to advancements across various industries worldwide.
