Q7800A-1005 | Honeywell Universal Wiring Subbase for 7800 SERIES Relay Modules
- Regular price
- $105.00
- Sale price
- $105.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q7800A-1005
Description

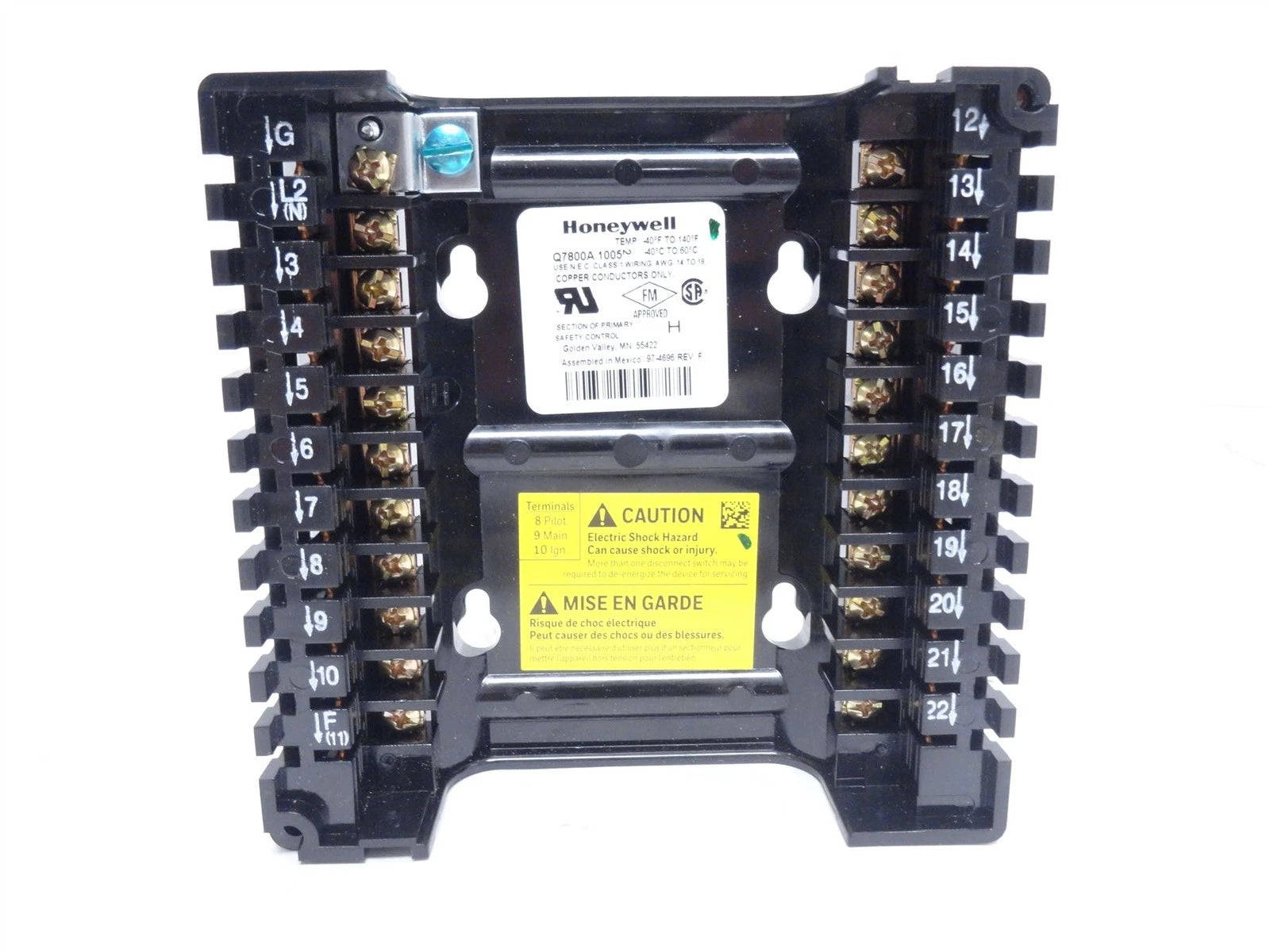

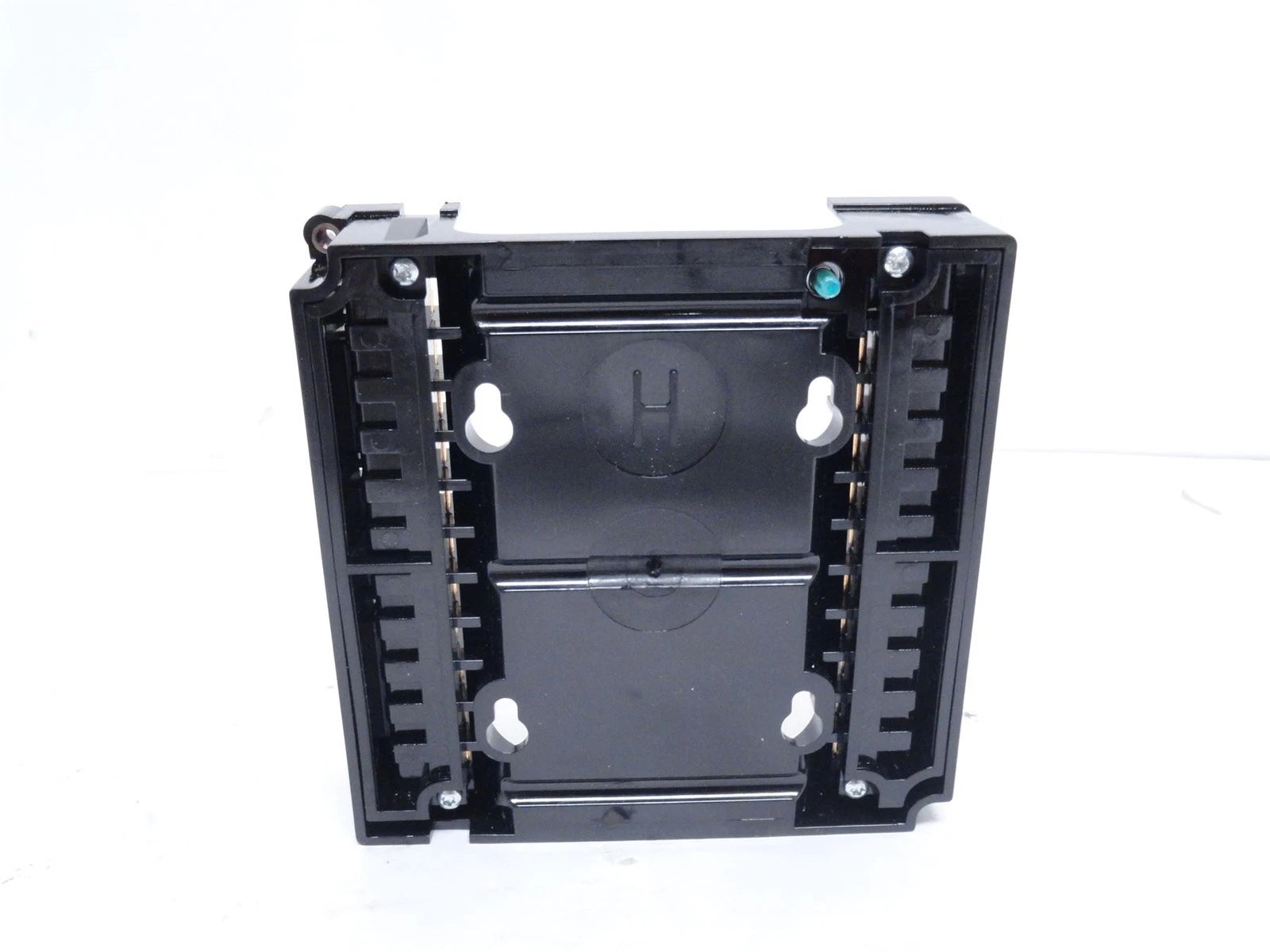

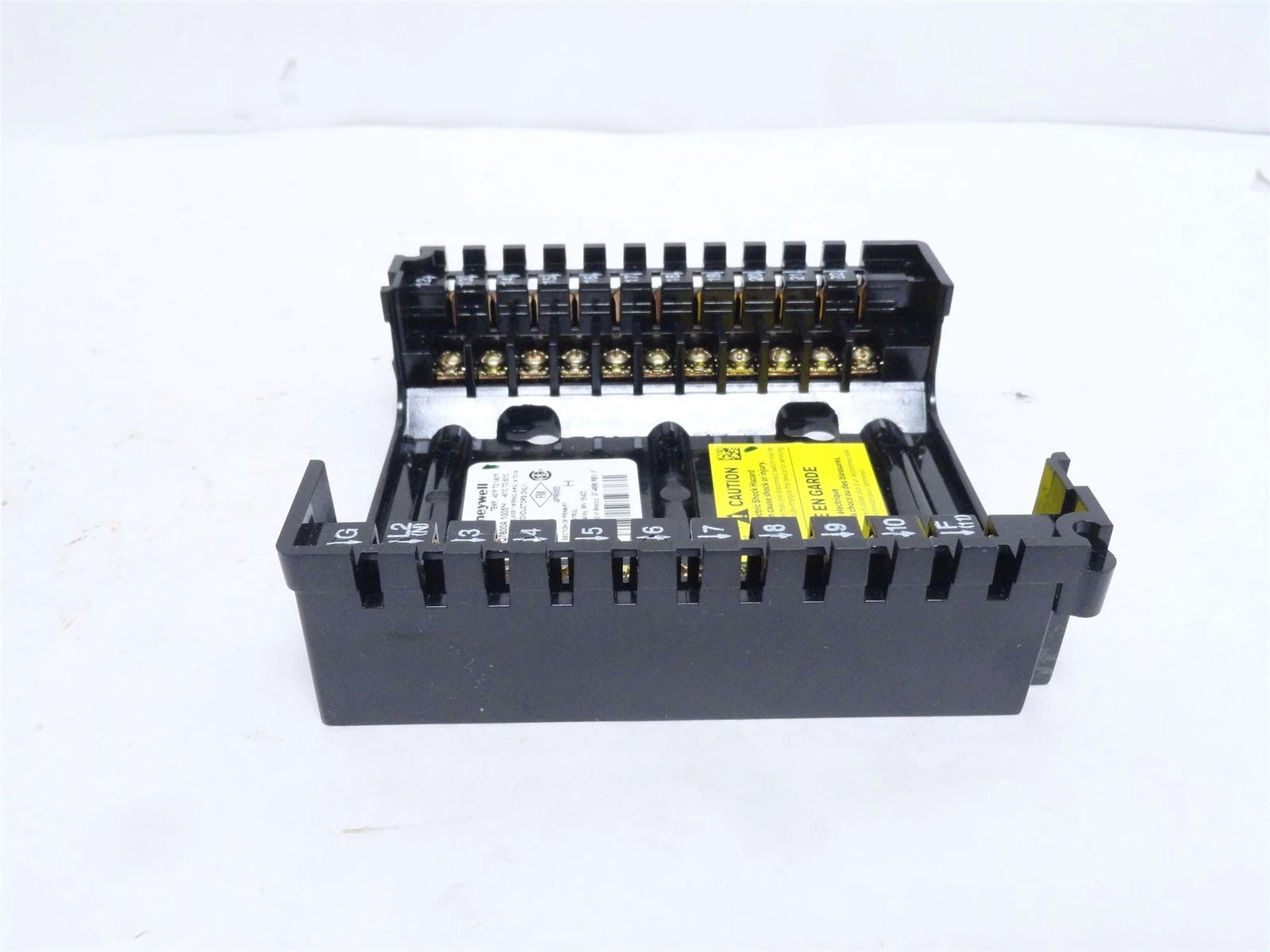

The Honeywell Q7800A-1005 is a universal wiring subbase designed to provide secure panel-mounted connections for Honeywell 7800 SERIES relay modules and the S7830A Expanded Annunciator. It enables structured field wiring through bifurcated contacts and clearly arranged terminals, ensuring dependable electrical continuity and simplified system integration. This subbase supports stable operation in industrial burner management and flame safeguard control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Industrial Automation |
| Part Number | Q7800A-1005 |
| Subcategory | Wiring Subbase |
| Application | Wiring Subbase for 7800 SERIES Relay Modules |
| Mounting Type | Panel Mount |
| Compatible Modules | 7800 SERIES Relay Modules, S7830A Expanded Annunciator |
| Number of Terminals | 22 |
| Contact Type | Bifurcated Contacts |
| Temperature Range | -40°F to 140°F (-40°C to 60°C) |
| Material | High-Temperature Industrial Thermoplastic |
| Electrical Connection | Screw Terminal Field Wiring |
| System Type | Flame Safeguard / Burner Control |
| Weight | 0.9 lb (Approx.) |
Information About Q7800A-1005
The Q7800A-1005 is a panel-mount wiring subbase engineered for use within Honeywell’s 7800 SERIES flame safeguard control platform. It is constructed with durable insulating materials and high-reliability bifurcated contact terminals to ensure consistent electrical engagement with compatible relay modules. The unit provides twenty-two terminals to accommodate organized field wiring in burner management and combustion control panels. Designed for industrial environments, it operates across a wide temperature range and supports straightforward installation and service access.
Key Features:
- Universal Compatibility: Designed for Honeywell 7800 SERIES relay modules and S7830A Expanded Annunciator integration.
- Panel-Mount Design: Secure mounting configuration suitable for control cabinet installation.
- Twenty-Two Terminals: Provides ample connection points for structured and organized field wiring.
- Bifurcated Contacts: Ensures reliable electrical connections and reduced contact resistance.
- Field Wiring Access: Clearly designated terminals simplify installation and maintenance.
- Wide Temperature Tolerance: Operates reliably from -40°F to 140°F (-40°C to 60°C).
- Industrial-Grade Construction: Built for demanding combustion and burner management applications.
- Modular System Integration: Supports flexible configuration within Honeywell flame safeguard systems.
- Service-Friendly Layout: Facilitates quick relay module replacement without rewiring.
The Q7800A-1005 delivers the reliability and precision required for burner management and flame safeguard control systems.
