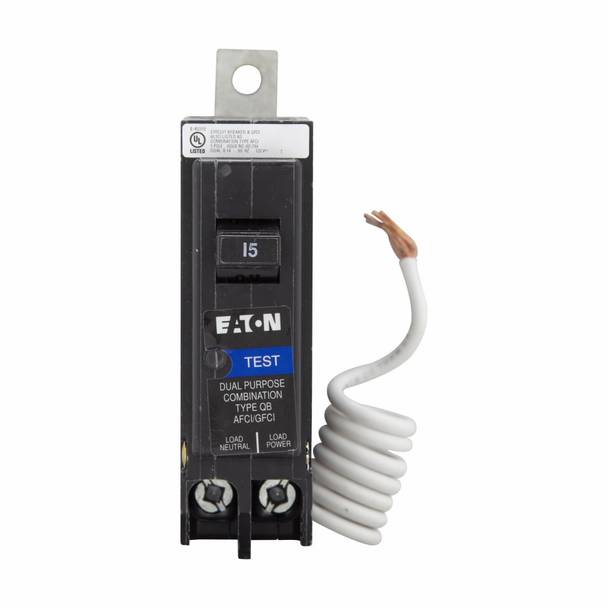

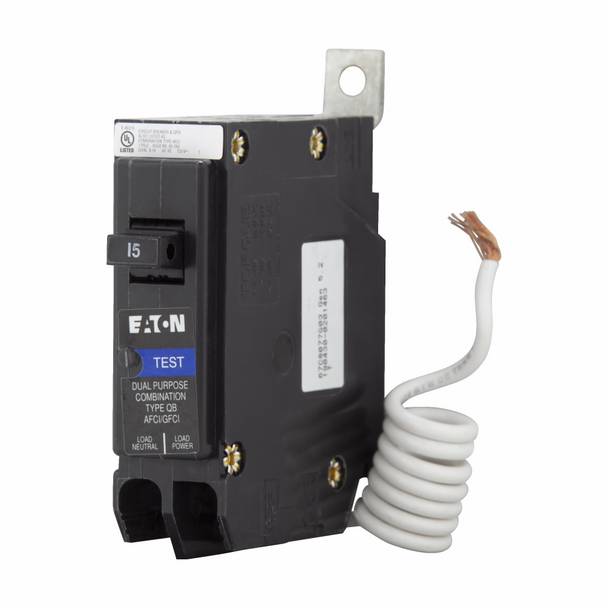

QB1015AFGF | Eaton 15A 1-Pole 120V Dual Function AFCI/GFCI Circuit Breaker (Bolt-On)
- Regular price
- $255.00
- Sale price
- $255.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QB1015AFGF
Description
The Eaton QB1015AFGF is a 1-pole dual function circuit breaker designed to provide both arc fault and ground fault protection within a single compact device. With a current rating of 15 amps and a voltage rating of 120VAC, it safeguards branch circuits from overloads, short circuits, and dangerous electrical faults. Its bolt-on configuration ensures secure installation and compatibility with Eaton panelboards and loadcenters used in commercial and residential applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | QB1015AFGF |
| Subcategory | Dual Function Circuit Breaker |
| Series | QB |
| Frame Type | BAB |
| Number of Poles | 1 |
| Amperage Rating | 15 A |
| Voltage Rating | 120 VAC |
| Interrupting Rating | 10 kAIC at 240V |
| Trip Type | Thermal-Magnetic |
| Protection Type | Arc Fault and Ground Fault |
| Functions | Long-Time and Instantaneous Trip |
| Connection Type | Bolt-On |
| Phase | Single Phase |
| Approvals | UL Listed, CSA Certified |
| Mounting Type | Panelboard Mount |
| Circuit Breaker Type | AFCI/GFCI Combination |
| Product Family | Quicklag |
| Dimensions (H × W × D) | 18.25 × 3.25 × 13.25 in |
| Weight | 5.98 lbs |
Information About QB1015AFGF
The QB1015AFGF is part of Eaton’s QB Series molded case circuit breakers, known for their robust thermal-magnetic design and dual-function protection. This breaker combines AFCI (Arc Fault Circuit Interrupter) and GFCI (Ground Fault Circuit Interrupter) technologies to detect parallel and series arc faults as well as leakage currents, preventing both fire and shock hazards. It features long-time and instantaneous trip functions, ensuring accurate fault response under varying load conditions. Built for bolt-on mounting, the QB1015AFGF meets UL standards and provides a reliable protective solution for modern 120V circuits in compliance with electrical safety codes.
Key Features
- Dual Function Protection: Combines AFCI and GFCI technology to guard against both arc and ground faults.
- Thermal-Magnetic Trip Unit: Offers precise overload and short-circuit protection for dependable operation.
- High Interrupting Rating: Rated 10 kAIC at 240V for enhanced short-circuit protection.
- Bolt-On Connection: Ensures a secure, vibration-resistant mounting within compatible panelboards.
- UL Listed and CSA Approved: Fully compliant with major safety and performance standards.
- Compact Form Factor: Saves space in panel installations while delivering dual-level safety.
- Long-Time and Instantaneous Trip Functions: Maintains optimal response under overload or fault conditions.
- Solid-State Design: Provides stable performance and reduced maintenance requirements.
The QB1015AFGF delivers the reliability and precision required for advanced circuit protection in residential, commercial, and institutional electrical systems.
