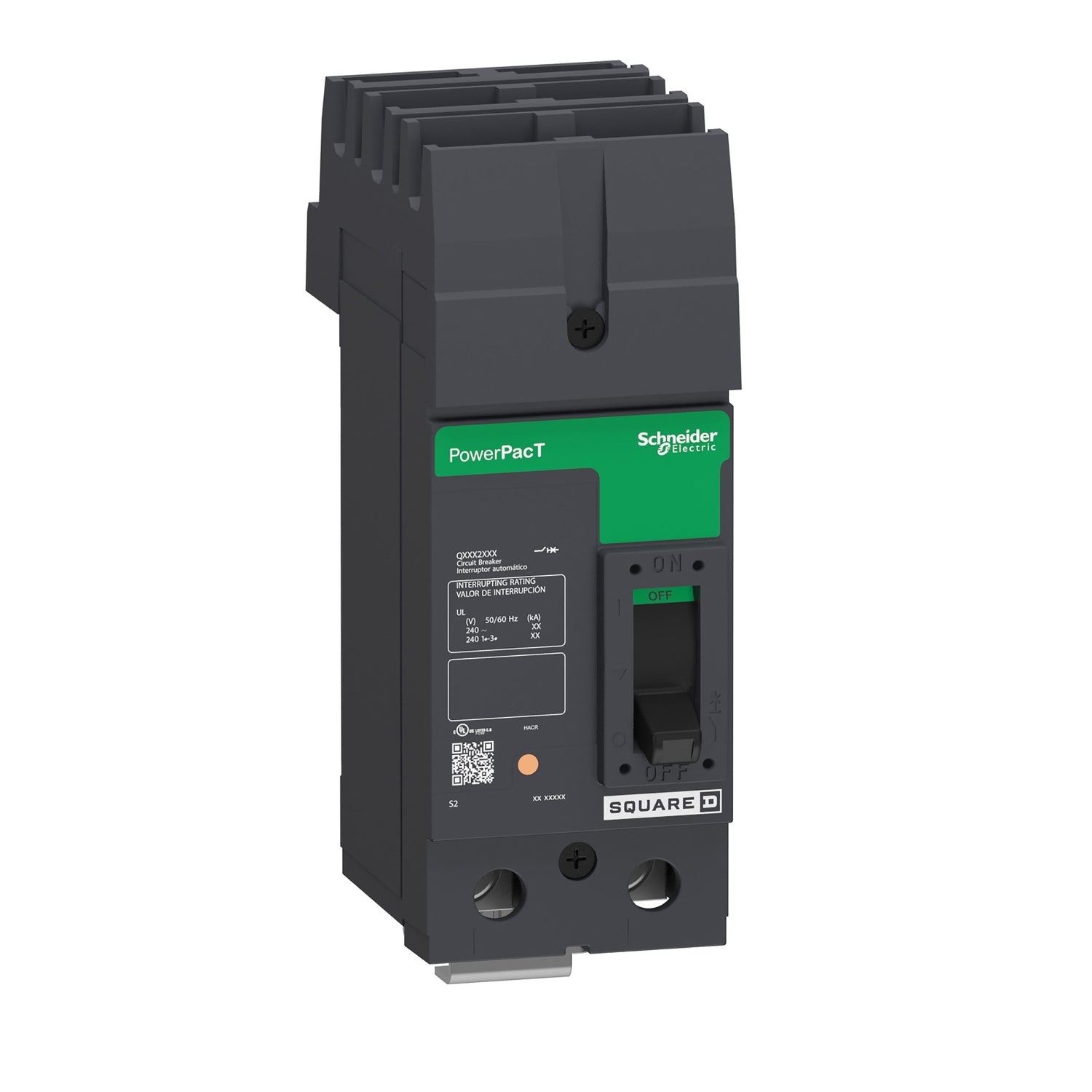

QBA222002 | Schneider Electric Circuit Breaker, PowerPacT Q
- Regular price
- $620.00
- Sale price
- $620.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QBA222002
Description
The QBA222002 is a 2-pole Circuit Breaker from the PowerPacT Q series, designed for overcurrent protection and switching operations in 240VAC systems. Featuring thermal magnetic trip protection, PowerPacT Q circuit breakers are specifically rated for 240VAC operational voltage.
Available in both 2 and 3-pole configurations, PowerPacT Q circuit breakers come in unit mount and I-Line constructions, offering versatility in installation options. All PowerPacT circuit breakers feature an integral push-to-trip button in the cover for manual tripping.
Technical Specifications
|
Part Number |
QBA222002 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product Name |
PowerPact Q |
|
Type |
Circuit Breaker |
|
Application |
Distribution |
|
Rated Current (In) |
200 A |
|
Number of Poles |
2P |
|
Control Type |
Operating Handle |
|
Breaking Capacity Code |
B |
|
Rated Operational Voltage (Ue) |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
Impulse Withstand Voltage (Uimp) |
8 kV UL |
|
Trip Unit Technology |
Thermal-Magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80% |
|
Utilization Category |
Category A |
|
Local Signaling |
1 Trip Indicator (Green) |
|
Mounting Mode |
I-Line Bracket |
|
Mounting Support |
Bracket |
|
Mounting Height |
3 in (76.20 mm) |
|
Tightening Torque |
247.82 lb-ft (28 N⋅m) |
|
Compatible Conductor Range |
0.04…0.23 in² (25…150 mm²) AWG 4...300 kcmil |
|
Power Wire Stripping Length |
0.87 in (22 mm) |
|
Dimensions |
|
|
* Height |
6.47 in (164.34 mm) |
|
* Width |
3 in (76.20 mm) |
|
* Depth |
3.93 in (99.82 mm) |
|
Phase Connection |
AC |
|
Application |
HACR Rated |
Information About QBA222002
The QBA222002 is a 2-pole Circuit Breaker from the PowerPacT Q series, specifically designed for overcurrent protection and switching operations in 240VAC systems. PowerPacT Q-Frame circuit breakers feature thermal magnetic trip protection and are precisely rated for 240VAC operational voltage.
These circuit breakers are available in both 2 and 3-pole configurations, offered in unit mount and I-Line constructions, providing flexibility in installation options. All PowerPacT circuit breakers are equipped with an integral push-to-trip button in the cover, facilitating manual tripping when necessary.
The QBA222002 unit is designed with I-Line terminations on the line side and mechanical lugs on the load side, ensuring secure and reliable connections. With a current rating of 200A, this circuit breaker offers a breaking capacity of 10kA at 208Y/120VAC and 240VAC. Additionally, it has a continuous current rating of 80%, specifically tailored for AC phase connection applications.
