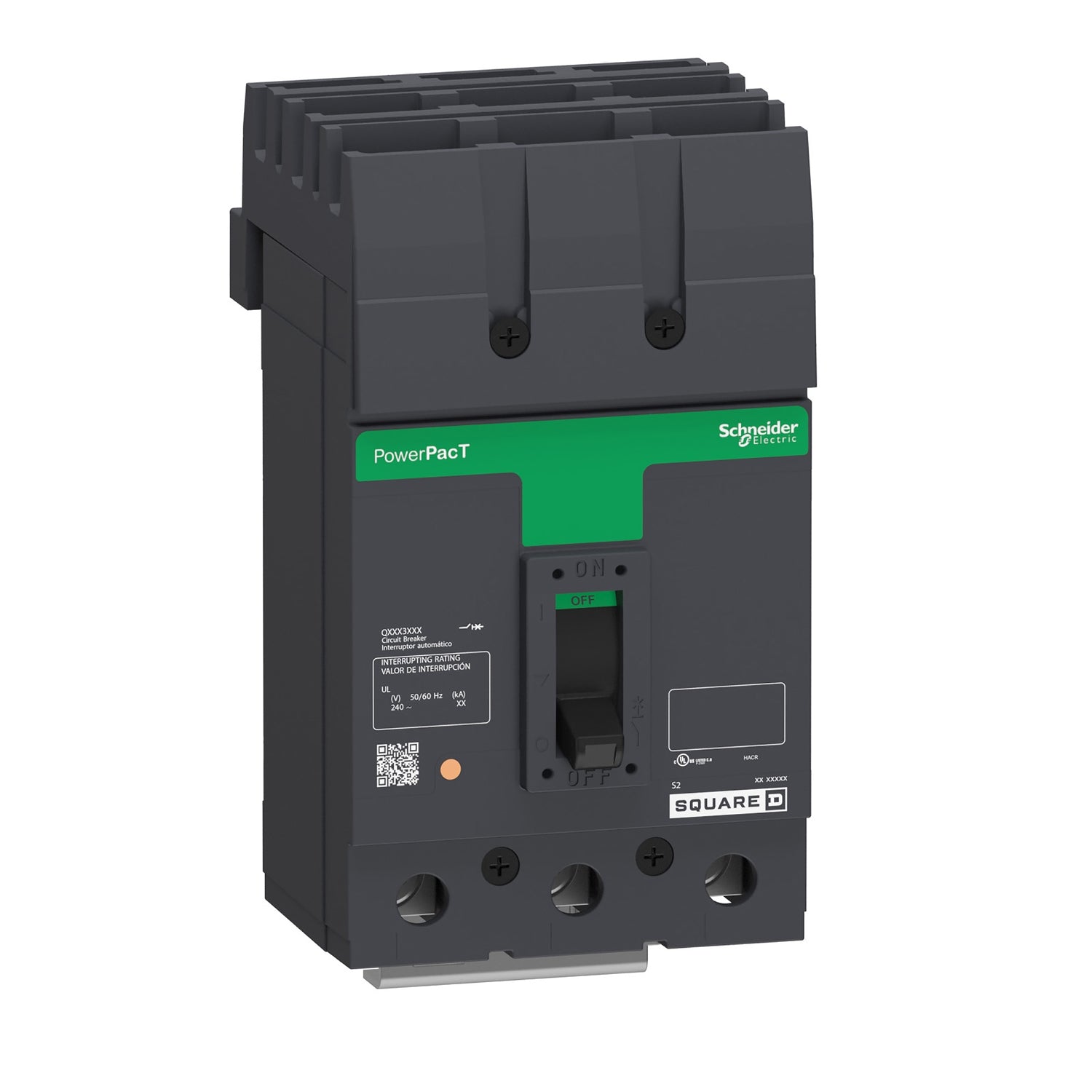

QBA32100 | Schneider Electric 100A 3-pole 240V I-Line molded case circuit breaker
- Regular price
- $744.00
- Sale price
- $744.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QBA32100
Description
The Schneider Electric QBA32100 is a molded case circuit breaker engineered for dependable power distribution in industrial applications. Rated at 100 amps and 240 VAC, it provides reliable overcurrent protection using a thermal-magnetic trip system. With a 10 kA interrupt rating, it ensures safe operation in three-phase electrical systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QBA32100 |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | QBA |
| Voltage Rating | 240 VAC |
| Amperage Rating | 100 A |
| Number of Poles | 3 |
| Phase | 3 |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Interrupt Rating | 10 kA @ 240 VAC |
| Connection Type | I-Line Style Plug-In |
| Frame Type | Q Frame |
| Frequency Rating | 50/60 Hz |
| Trip Setting Range | 1200–2400 A (thermal magnetic) |
| Application | Power distribution |
| Mounting Style | I-Line panel plug-in |
| Body Construction | Molded case |
Information About QBA32100
The QBA32100 is part of Schneider Electric’s I-Line QBA series, designed for secure plug-in installation in I-Line panelboards. Built on a durable Q Frame, it features a molded case construction optimized for industrial environments. Its LI (Long-Time and Instantaneous) trip functions ensure precise overload and short-circuit protection across three-phase systems. With a 10 kA interrupt capacity at 240 VAC and compatibility with 50/60 Hz systems, the QBA32100 is an ideal solution for reliable power distribution in commercial and industrial applications.
Key Features:
- 100A circuit protection: Suitable for medium-load industrial applications.
- 240 VAC rating: Designed for standard three-phase distribution systems.
- Thermal-magnetic trip system: Provides reliable overload and short-circuit response.
- LI trip functions: Long-time and instantaneous adjustments for tailored protection.
- I-Line plug-in connection: Enables quick, secure installation in compatible panelboards.
- Q Frame construction: Ensures durability and long service life.
- 10 kA interrupt rating: Capable of clearing significant fault currents safely.
- Three-pole configuration: Protects all phases in industrial circuits.
The QBA32100 delivers the reliability and precision required for industrial molded case circuit protection.
