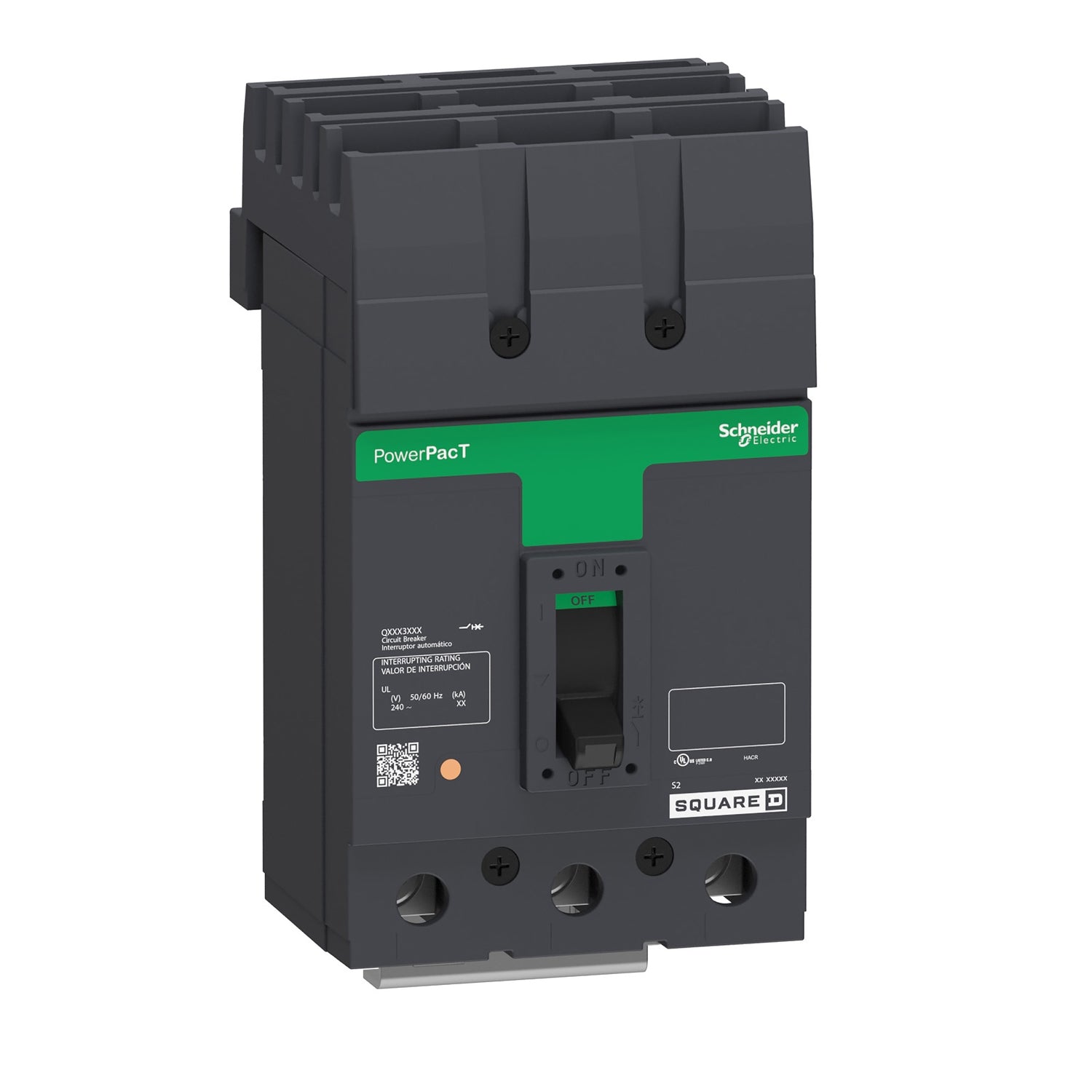

QBA32200 | Schneider Electric Circuit Breaker
- Regular price
- $789.00
- Sale price
- $789.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QBA32200
Description
QBA32200 is a PowerPacT Q-Frame circuit breaker, designed for overcurrent protection and switching in 240VAC systems. It is rated for 240VAC operational voltage and features thermal magnetic trip protection. The PowerPacT Q circuit breakers are available in both 2 and 3-pole unit mount and I-Line constructions. This particular unit is a 3-pole circuit breaker rated at 200A. It includes I-Line terminations on the line side and mechanical lugs on the load side. The circuit breaker provides an interrupting rating of 10kA at 208Y/120VAC and 240VAC.
Technical Specifications
|
Part # |
QBA32200 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Range |
|
Product Name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
200 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
B |
|
Breaking Capacity |
10 kA 120/208 V AC 50/60 Hz UL |
|
|
10 kA 240 V AC 50/60 Hz UL |
|
[Ue] Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilization Category |
Category A |
|
Local Signaling |
1 trip indicator (green) |
|
Mounting Mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Electrical Connection |
I-Line connection, line |
|
|
Lugs, load |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Tightening Torque |
247.82 lbf.in (28 N.m) |
|
|
0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil) |
|
Power Wire Stripping Length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
4.5 in (114.30 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Phase Connection |
ABC |
Information About QBA32200
The QBA32200 is a circuit breaker from the PowerPacT Q-Frame series, specifically designed for overcurrent protection and switching in 240VAC systems. This circuit breaker is rated for an operational voltage of 240VAC and employs thermal magnetic trip technology to ensure reliable protection. The PowerPacT Q series offers circuit breakers in both 2-pole and 3-pole unit mount configurations, as well as I-Line constructions, providing flexibility for various applications.
The QBA32200 circuit breaker features I-Line terminations on the line side and mechanical lugs on the load side, facilitating secure and efficient connections. It includes an integral push-to-trip button located on the cover, allowing for manual tripping of the circuit breaker when necessary. This specific model, with a 200A rating and 3 poles, has an interrupting rating of 10kA at both 208Y/120VAC and 240VAC, ensuring high performance under fault conditions.
With a continuous current rating of 80%, the QBA32200 supports an ABC phase connection. The breaker is designed to meet rigorous standards, complying with UL, CSA, and NOM requirements, and it is also IEC certified. These certifications ensure that the breaker adheres to international safety and performance standards, making it a reliable choice for a wide range of electrical applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
