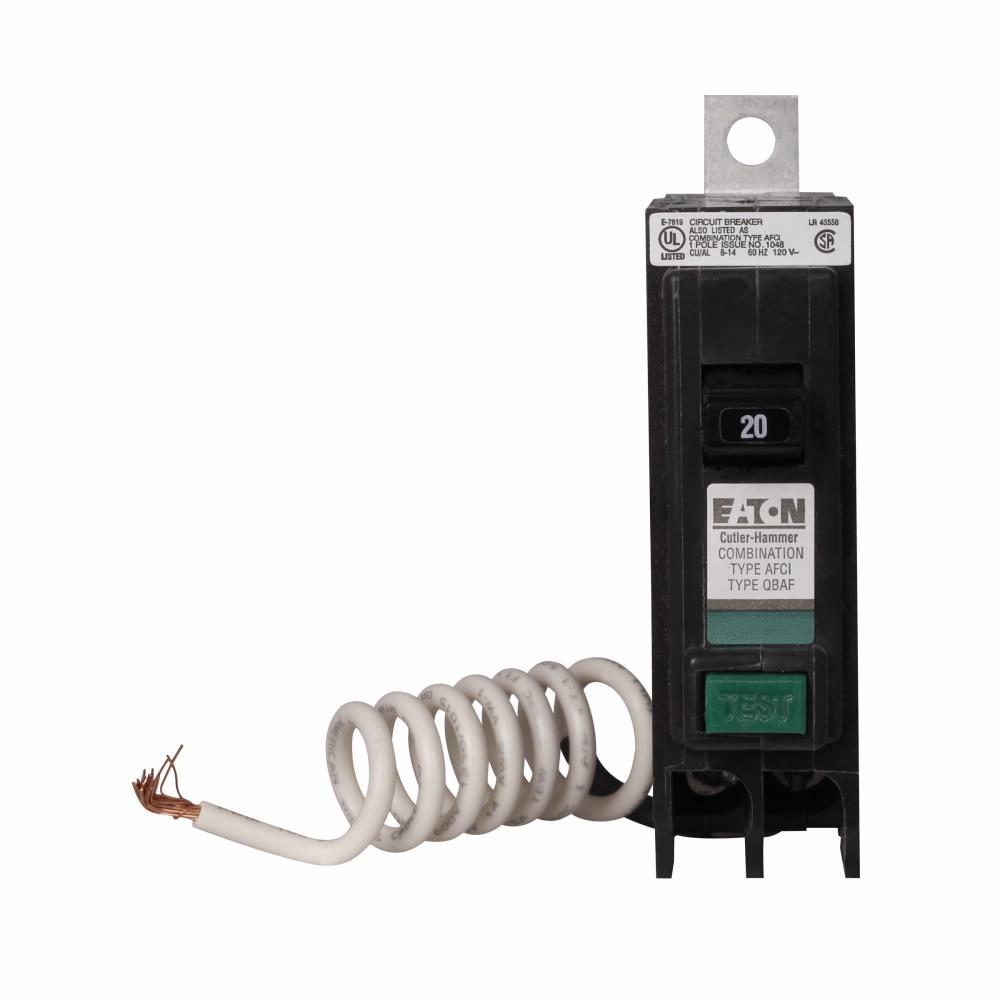

QBCAF1020 | Eaton 20A 1-Pole Combination AFCI Circuit Breaker 120/240V 10kAIC
- Regular price
- $277.00
- Sale price
- $277.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QBCAF1020
Description
The Eaton QBCAF1020 is a single-pole combination arc fault circuit breaker designed to protect electrical systems from both parallel and series arc faults. This 20-amp, 120/240V circuit breaker features a 10 kAIC interrupting capacity, ensuring dependable performance in residential and light commercial load centers. Engineered for safety and compliance, the Eaton QBCAF1020 combines advanced AFCI protection with a compact, bolt-on design.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton / Cutler-Hammer |
| Category | Circuit Breakers |
| Part Number | QBCAF1020 |
| Subcategory | Molded Case Circuit Breakers |
| Series | QB |
| Type | Combination AFCI Circuit Breaker |
| Poles | 1 |
| Phase | Single |
| Amperage Rating | 20 A |
| Voltage Rating | 120/240 VAC |
| Interrupting Rating | 10 kAIC @ 120V |
| Trip Function | Long-Time and Instantaneous |
| Trip Type | Thermal-Magnetic |
| Mounting Type | Panel / Bolt-On |
| Connection Type | Box Lug |
| Certifications | UL 489, HACR Rated |
| For Use With | Load Centers and Sumter Panels |
| Product Dimensions (L x W x H) | 5.1 x 3.3 x 1.2 in |
| Weight | 0.2 lb (0.18 kg) |
Information About QBCAF1020
The QBCAF1020 is part of Eaton’s QB series of molded case circuit breakers, known for their reliability and compliance with UL 489 standards. Built with thermal-magnetic trip technology, this breaker provides both long-time and instantaneous protection against overloads and short circuits. It is specifically designed for use in Sumter panels and other compatible load centers where combination arc fault protection is required. The bolt-on mounting and box lug terminals simplify installation while ensuring a secure electrical connection.
Key Features:
- Combination AFCI Protection: Detects and interrupts both parallel and series arc faults to prevent electrical fires.
- Thermal-Magnetic Trip: Provides long-time and instantaneous trip functions for overload and short-circuit protection.
- High Interrupting Capacity: Rated at 10 kAIC to ensure safety under fault conditions.
- Compact 1-Inch Design: Saves panel space while maintaining compatibility with standard load centers.
- Bolt-On Connection: Ensures a stable and durable electrical connection in panel installations.
- UL 489 Certified: Meets rigorous industry standards for performance and safety.
- HACR Rated: Suitable for use with heating, air conditioning, and refrigeration equipment.
Lightweight Construction: Weighs only 0.2 lb for easy handling and installation.
The QBCAF1020 delivers the reliability and precision required for safe, efficient electrical circuit protection in residential and commercial systems.
